Multifunction Switch C1 Connector End View

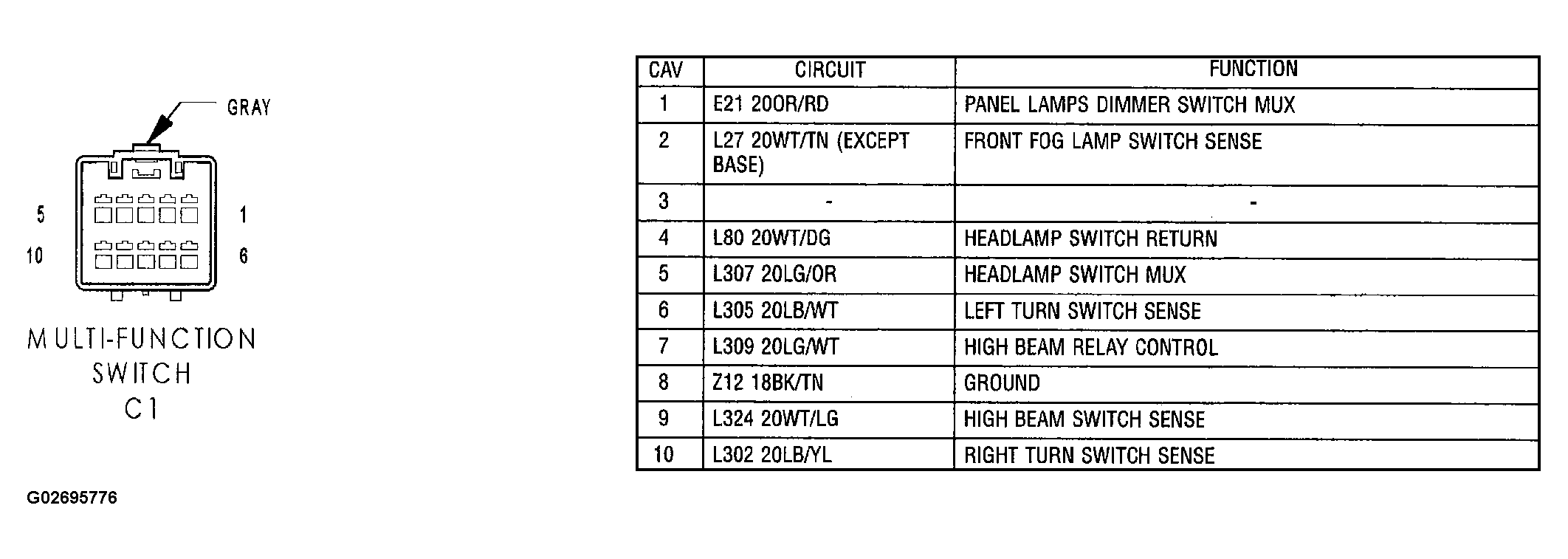

Fig 1: Multifunction Switch C1 Connector End View

G02695776

Courtesy of CHRYSLER GROUP, LLC
