Body Control Module C3 (Premium) Connector End View

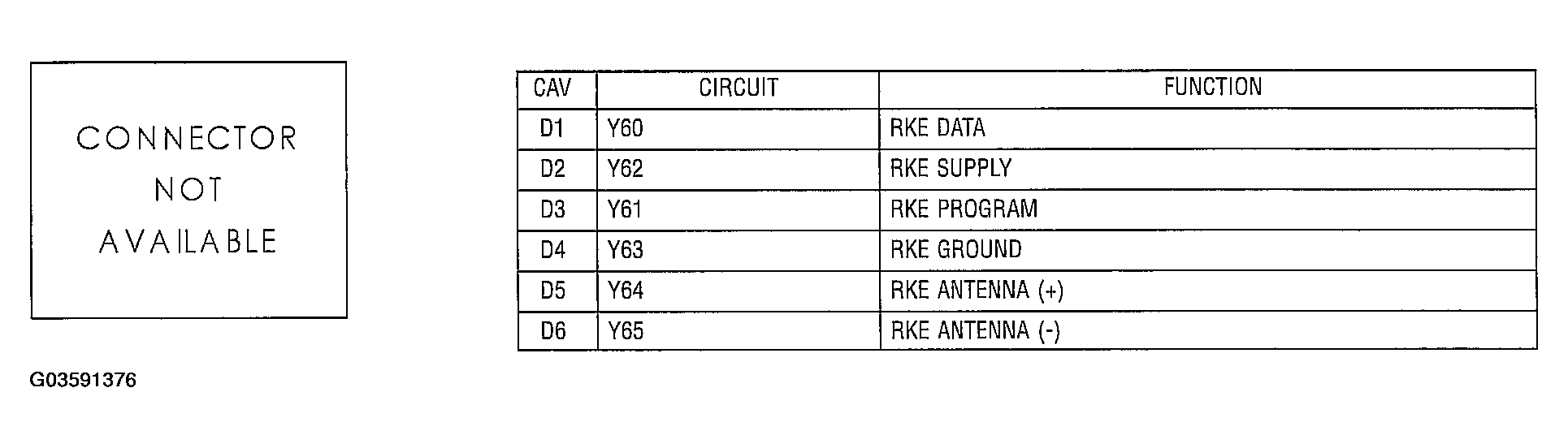

Fig 1: Body Control Module C3 (Premium) Connector End View

G03591376

Courtesy of CHRYSLER GROUP, LLC
