Airbag Control Module (ORC) C2 Connector End View

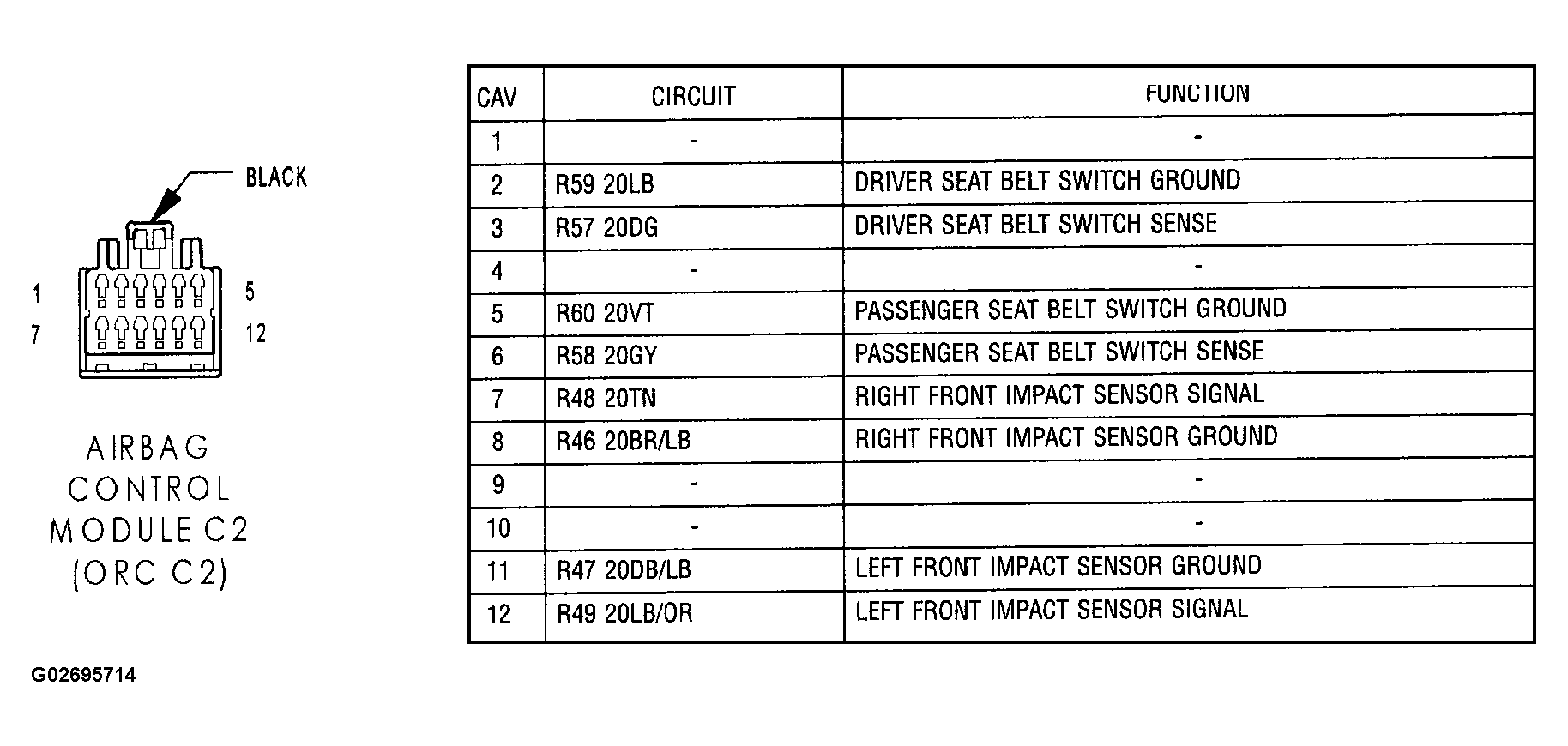

Fig 1: Airbag Control Module (ORC) C2 Connector End View

G02695714

Courtesy of CHRYSLER GROUP, LLC
