Powertrain Control Module C2 Connector End View

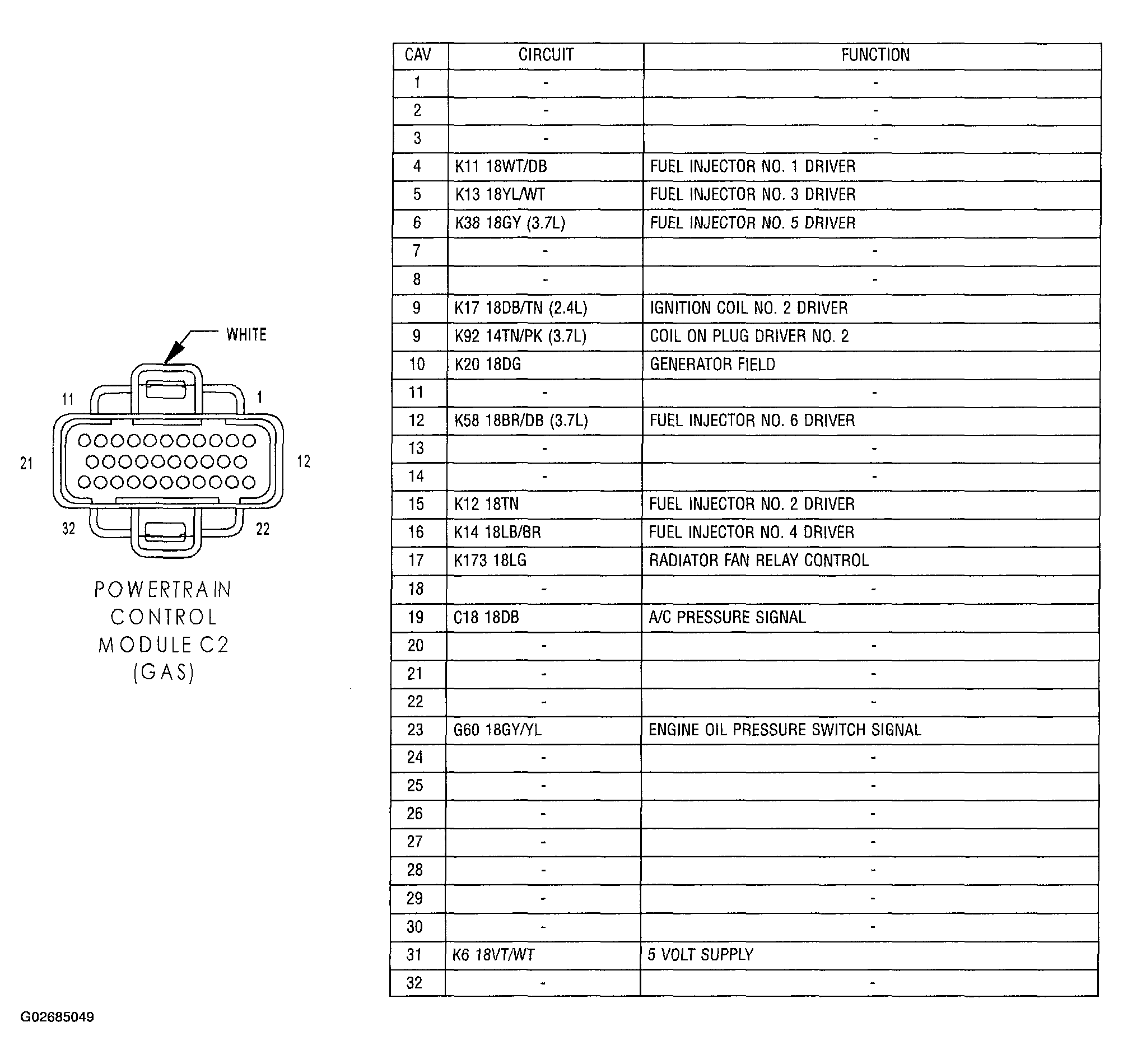

Fig 1: Powertrain Control Module C2 Connector End View

G02685049

Courtesy of CHRYSLER GROUP, LLC
