Front Wheel Speed Sensor: Removal

  1. Disconnect the front wheel speed sensor wire connector that is located on the inboard side of the respective wheel house.
  2. Raise and support the vehicle.
  3. Remove the tire and wheel assembly.
  4. Remove the caliper adapter. Refer to DISC & DRUM article.
    CAUTION: Never allow the disc brake caliper the hang from the brake hose. Damage to the brake hose with result. Provide a suitable support to hang the caliper securely.
  5. Remove the disc brake rotor. Refer to DISC & DRUM article.
  6. Remove the wheel speed sensor mounting bolt to the hub. See Fig 1 .
  7. Remove the wheel speed sensor wire from the hub/bearing. See Fig 1 .
  8. Remove the wheel speed sensor wire hold down from the knuckle. See Fig 1 .
  9. Remove the wheel speed sensor wire through the wheel well.
  10. Remove the wheel speed sensor from the vehicle.

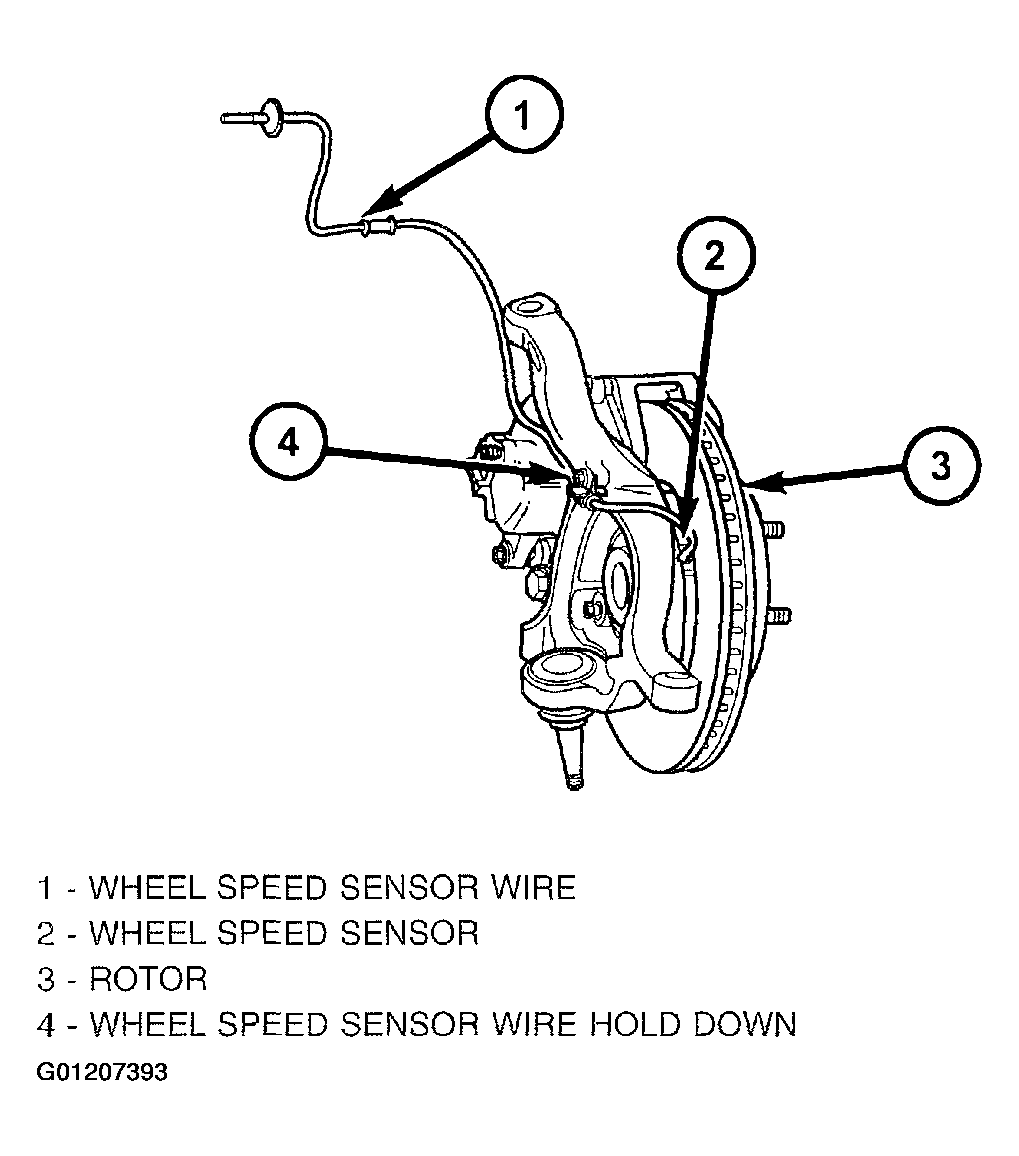

Fig 1: Locating Front Wheel Speed Sensor
G01207393Courtesy of DAIMLERCHRYSLER CORP.
