Controller Anti-Lock Brake (Cab): Removal

  1. Install the prop rod on the brake pedal to keep pressure on the brake system.
  2. Remove the negative battery cable from the battery.

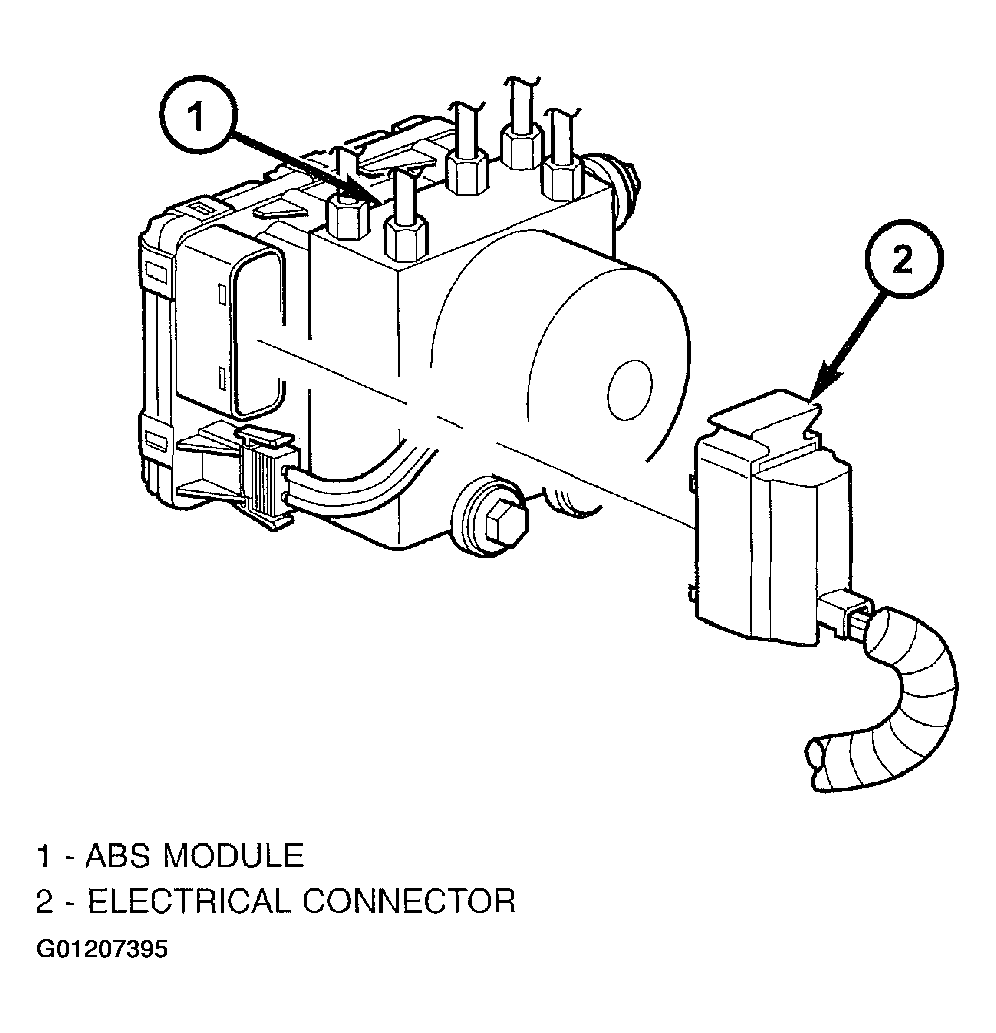

  3. Pull up on the CAB harness connector release and remove connector. See Figure .
  4. Remove the pump connector for the CAB.

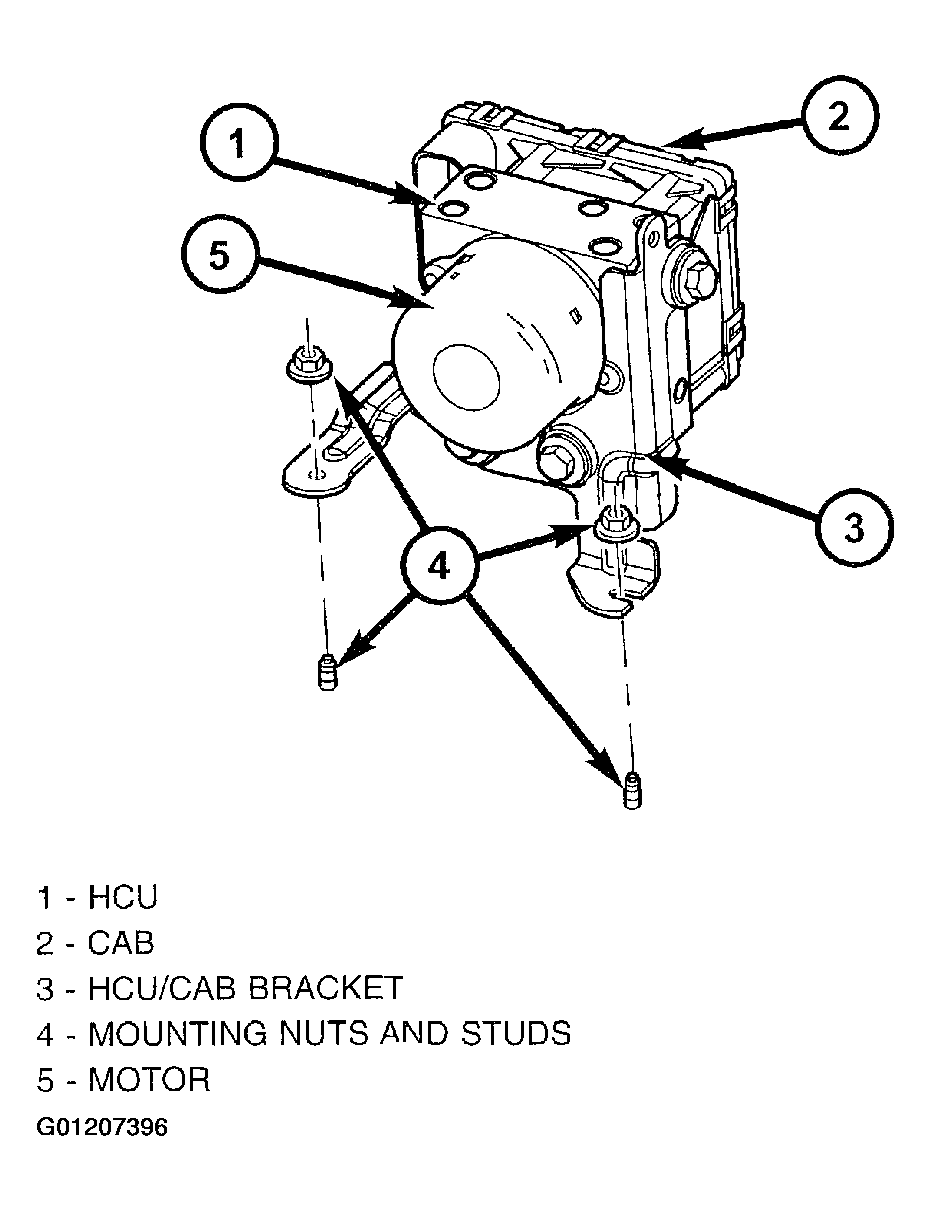

  5. Remove the CAB mounting bolts. See Figure .
  6. Remove the CAB from the HCU. See Figure .
