Torque Specifications - Starter

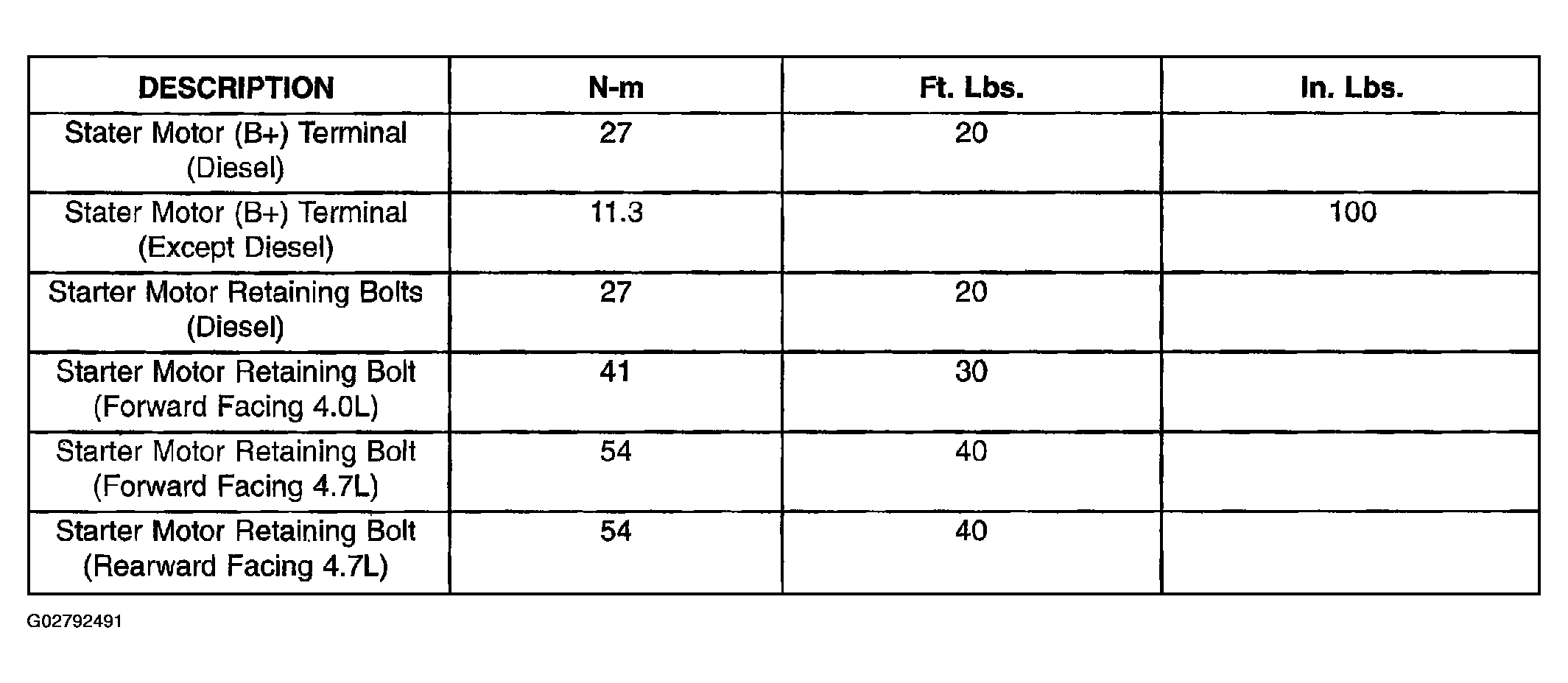

Fig 1: Starter Torque Specifications Chart
G02792491Courtesy of DAIMLERCHRYSLER CORP.
