Starter Motor: Removal
- Disconnect and isolate the battery negative cable.
- Raise and support the vehicle

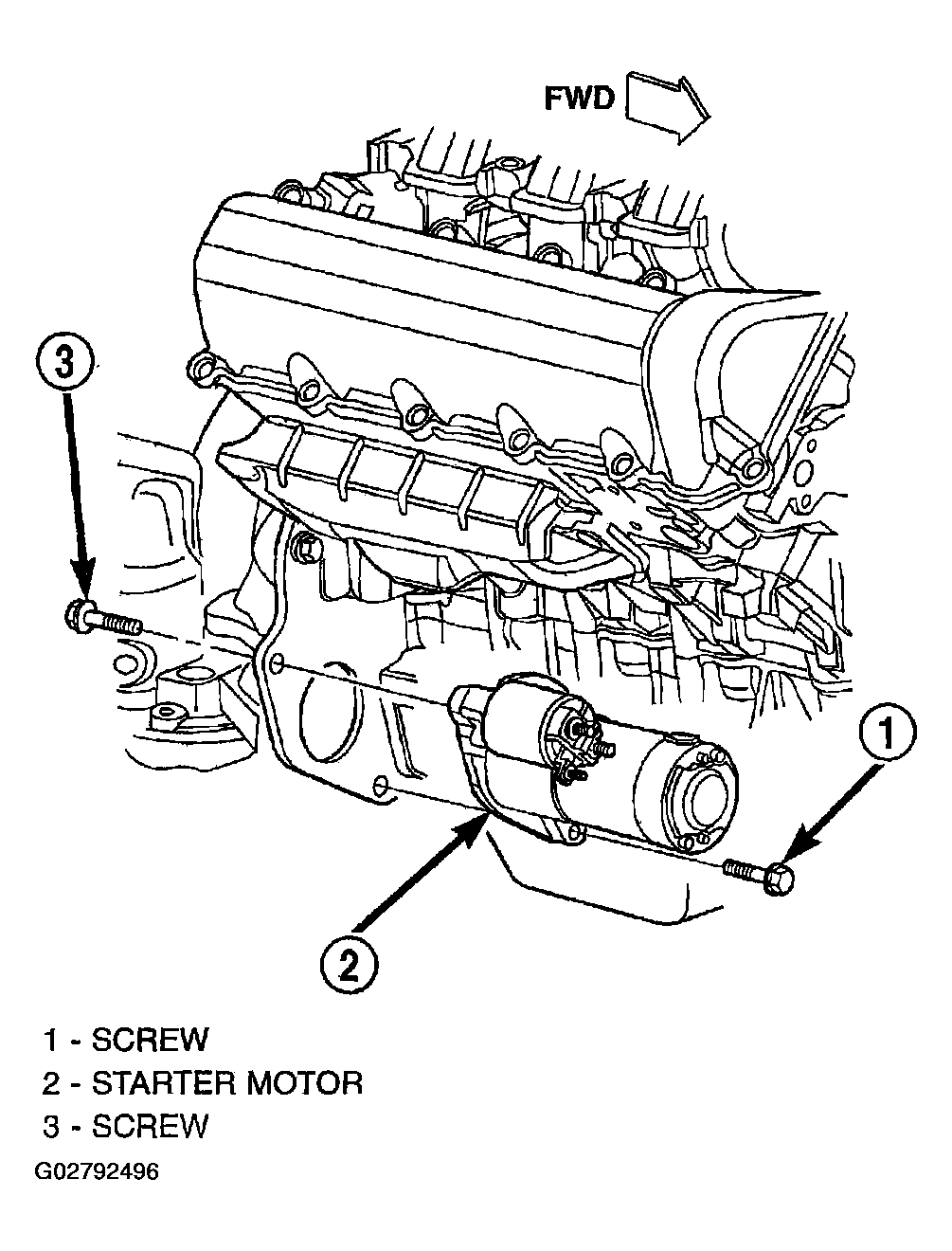

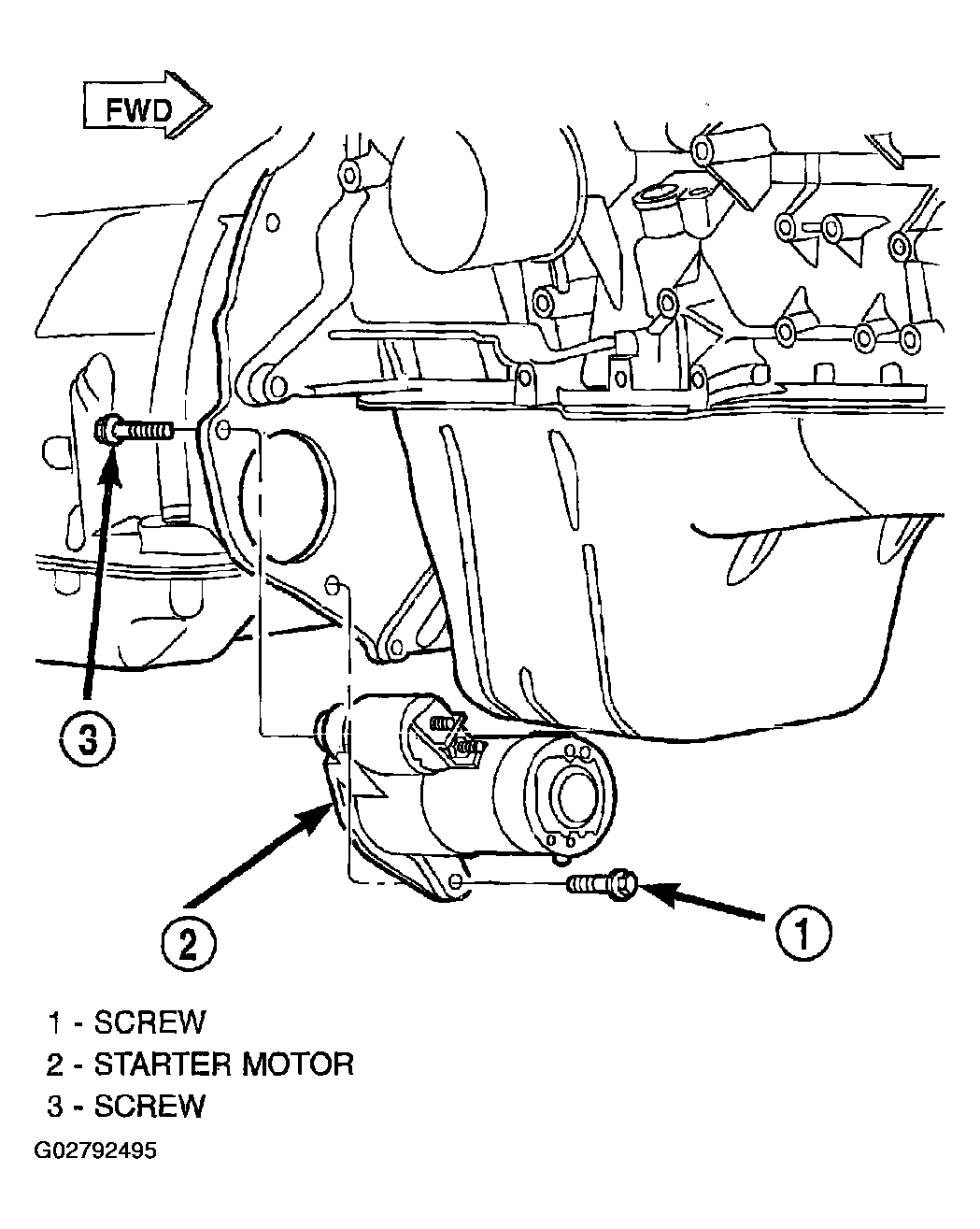

- Remove the lower (forward facing) mounting screw securing the starter motor to the automatic transmission torque converter housing (Fig 1
) or (Fig 2
) .
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
- While supporting the starter motor with one hand, use the other hand to remove the upper (rear facing) mounting screw securing the starter motor to the automatic transmission torque converter housing;

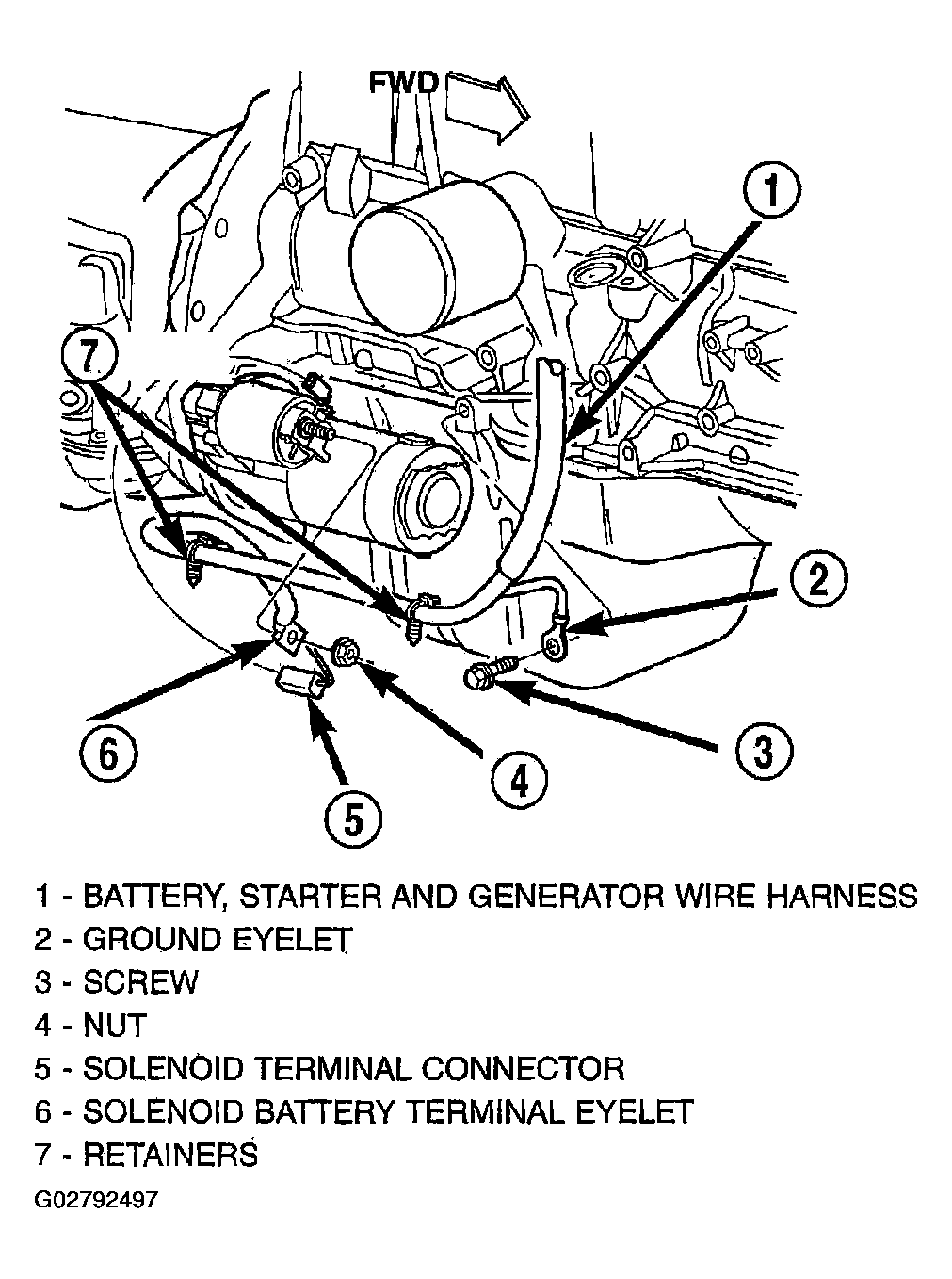

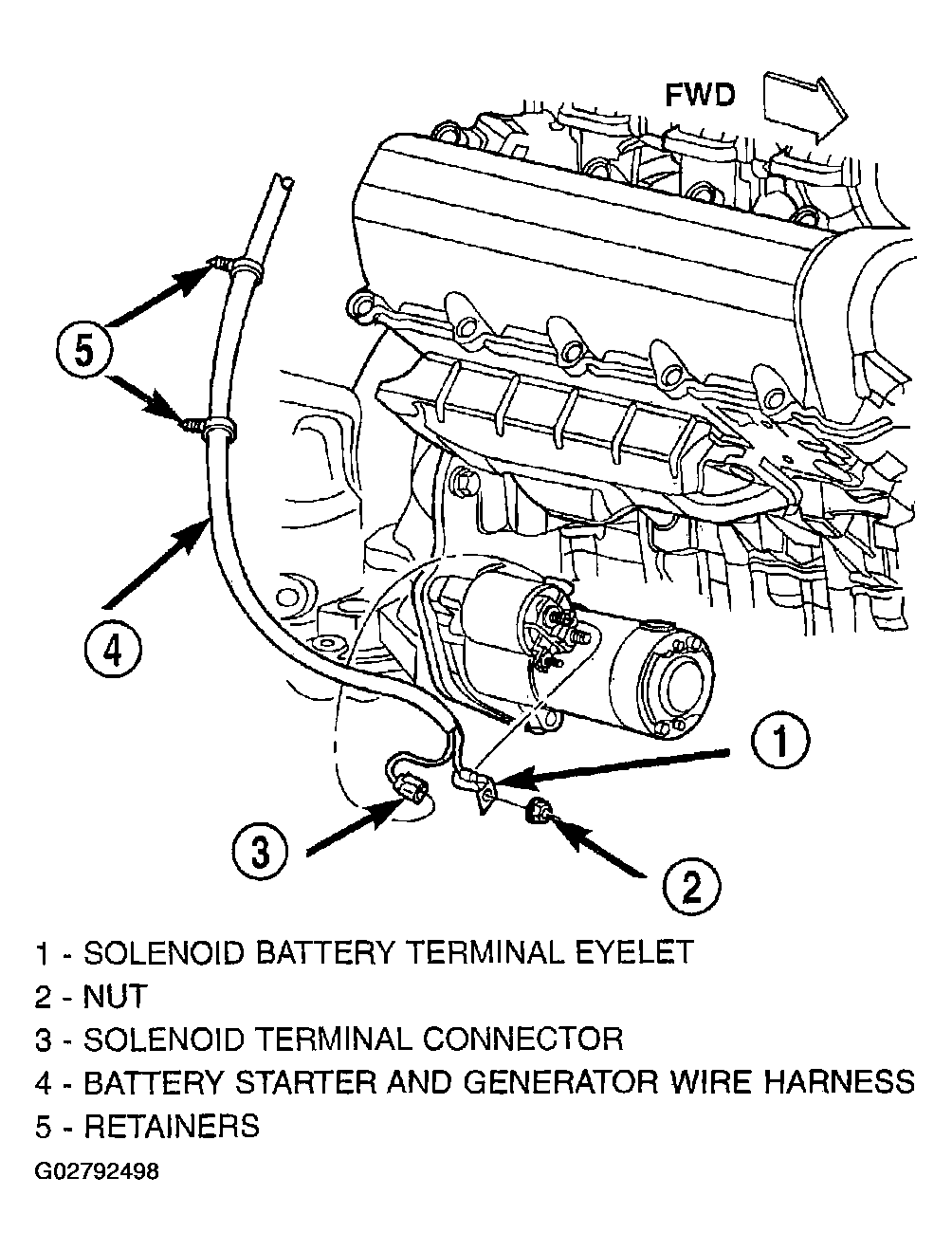

- Lower the starter motor from the front of the automatic transmission torque converter housing far enough to access and remove the nut that secures the battery cable eyelet to the solenoid battery terminal (Fig 3
) or (Fig 4
) . Always support the starter motor during this process, do not let the starter motor hang from the wire harness.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
- Remove the battery cable eyelet from the solenoid battery terminal. Always support the starter motor during this process, do not let the starter motor hang from the wire harness.
- Disconnect the solenoid terminal wire harness connector from the connector receptacle on the starter solenoid. Always support the starter motor during this process, do not let the starter motor hang from the wire harness.
- Remove the starter motor from the engine compartment.
