Starter Motor Relay: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove the cover from the Power Distribution Center (PDC) (Fig 1 )

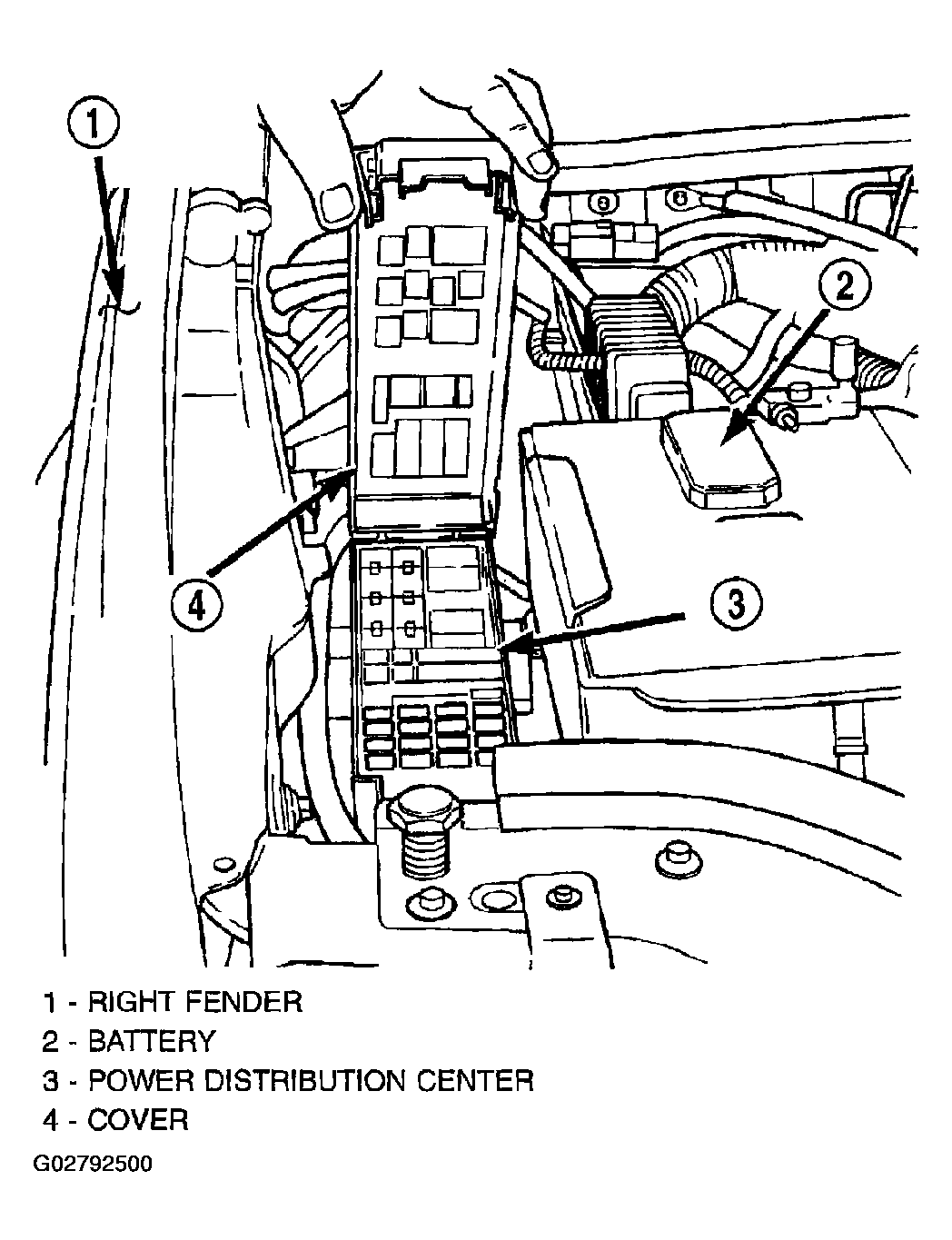

    Fig 1: Removing Power Distribution Center Cover
    G02792500Courtesy of DAIMLERCHRYSLER CORP.
  3. See the fuse and relay layout label affixed to the underside of the PDC cover for starter relay identification and location.
  4. Remove the starter relay from the PDC.
