Diagnosis And Testing: Notes

The starter relay (Fig 1 ) is located in the Power Distribution Center (PDC), in the engine compartment. Refer to the fuse and relay layout label affixed to the underside of the PDC cover for starter relay identification and location. For complete circuit diagrams, refer to SYSTEM WIRING DIAGRAMS .

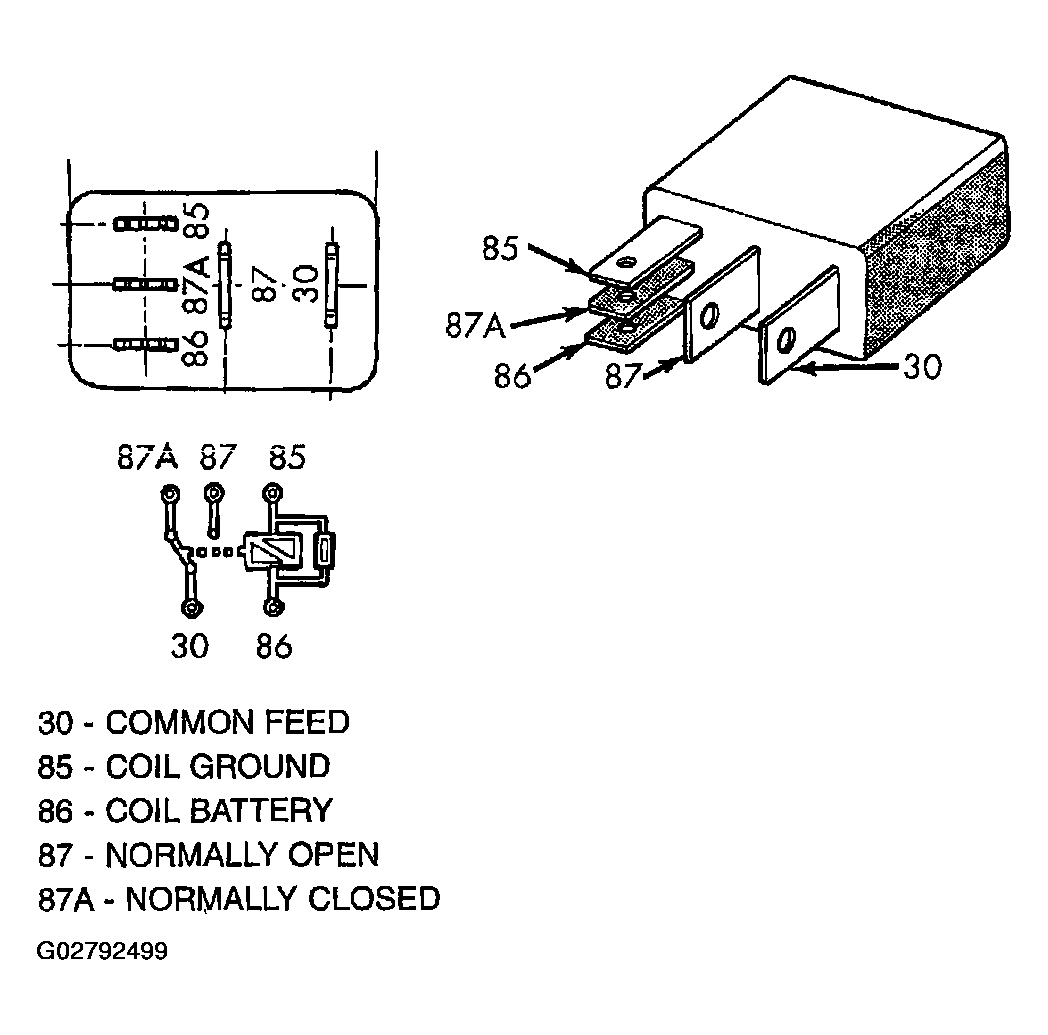

Fig 1: Identifying Starter Relay

Courtesy of DAIMLERCHRYSLER CORP.
