Installation

Clean and inspect the battery. Refer to CLEANING .
Position the battery onto the battery tray as a unit. Ensure that the battery positive and negative terminal posts are correctly positioned. The battery cable terminal clamps must reach the correct battery terminal post without stretching the cables (Fig 1 ) or (Fig 2 ).

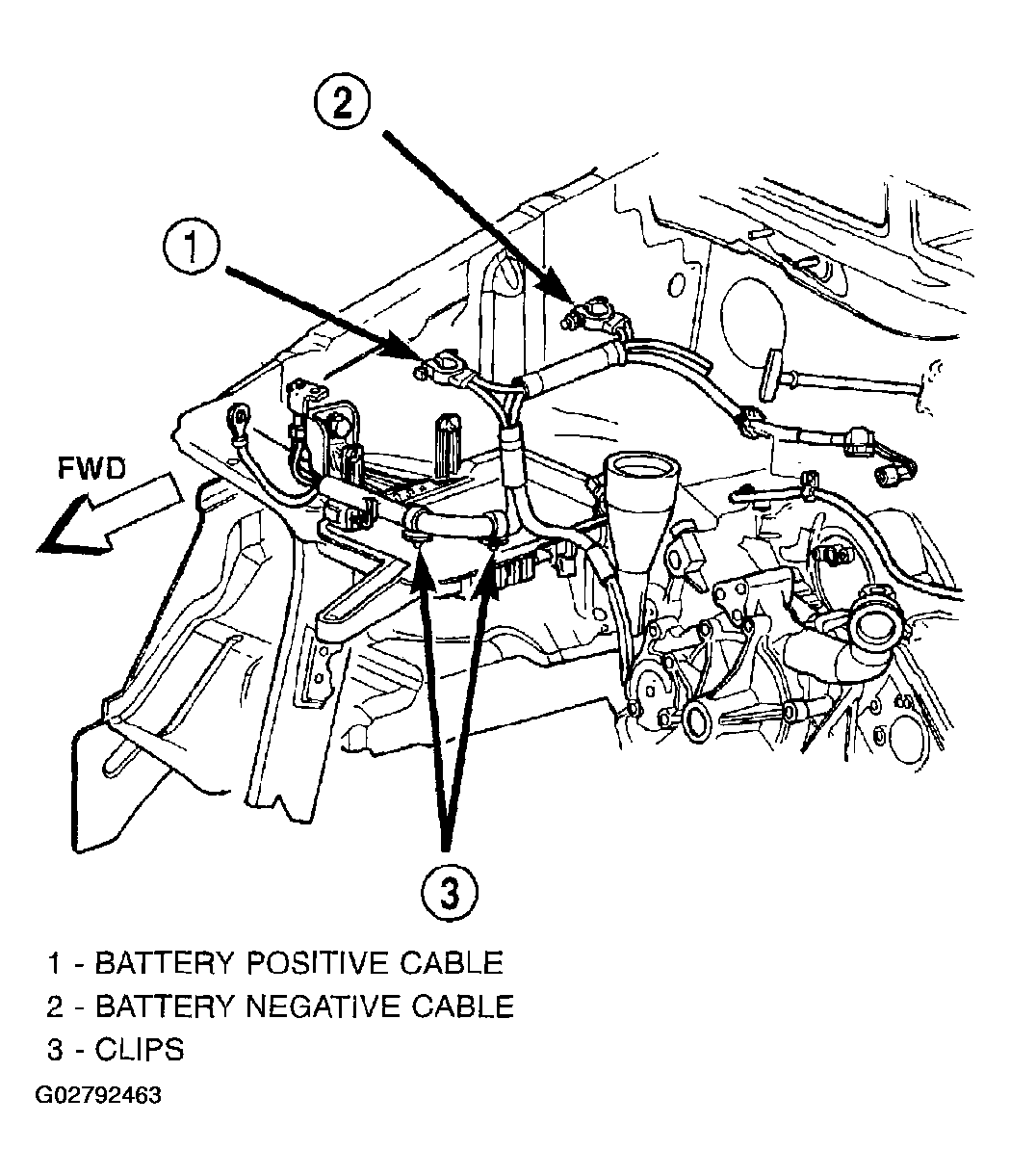

Fig 1: Installing Battery Cables - 4.0L Engine
Courtesy of DAIMLERCHRYSLER CORP.

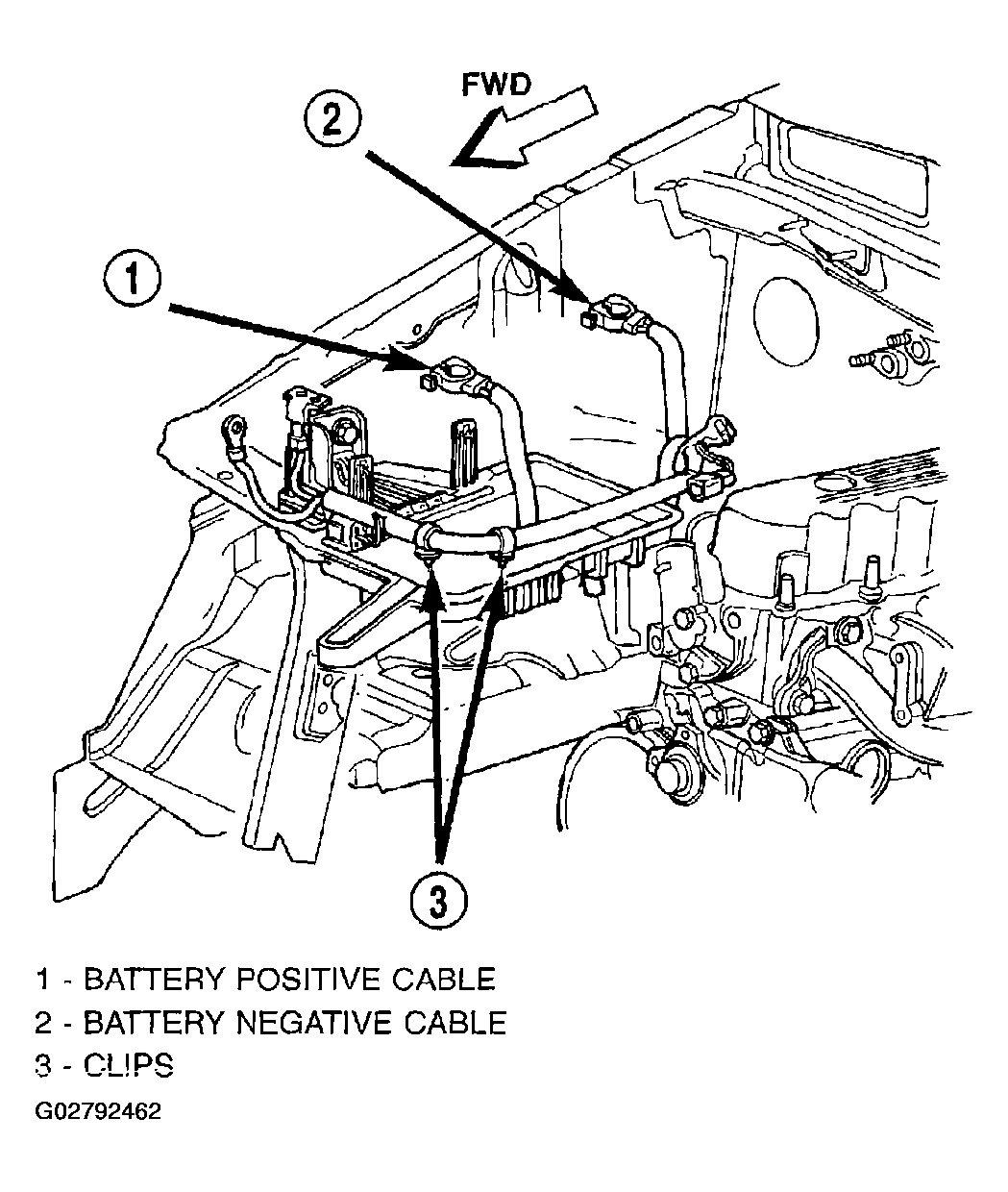

Fig 2: Installing Battery Cables - 4.7L Engine
Courtesy of DAIMLERCHRYSLER CORP.
Reinstall the battery hold downs onto the battery. Refer to BATTERY HOLDDOWN .
CAUTION: Be certain that the battery cable terminal clamps are connected to the correct battery terminal posts. Reverse battery polarity may damage electrical components of the vehicle.
Clean the battery cable terminal clamps and the battery terminal posts.
Reconnect the battery positive cable terminal clamp to the battery positive terminal post. Tighten the terminal clamp pinch-bolt hex nut to 6.8 N m (60 in. lbs.).
Reconnect the battery negative cable terminal clamp to the battery negative terminal post. Tighten the terminal clamp pinch-bolt hex nut to 6.8 N.m (60 in. lbs.).
Apply a thin coating of petroleum jelly or chassis grease to the exposed surfaces of the battery cable terminal clamps and the battery terminal posts.
