Battery Tray: Removal
- Remove the battery from the battery tray (Refer to REMOVAL
).
- Remove the Power Distribution Center (PDC) from the stanchions on the outboard side of the battery tray and support unit. Refer to Power Distribution Center in SYSTEM WIRING DIAGRAMS
.

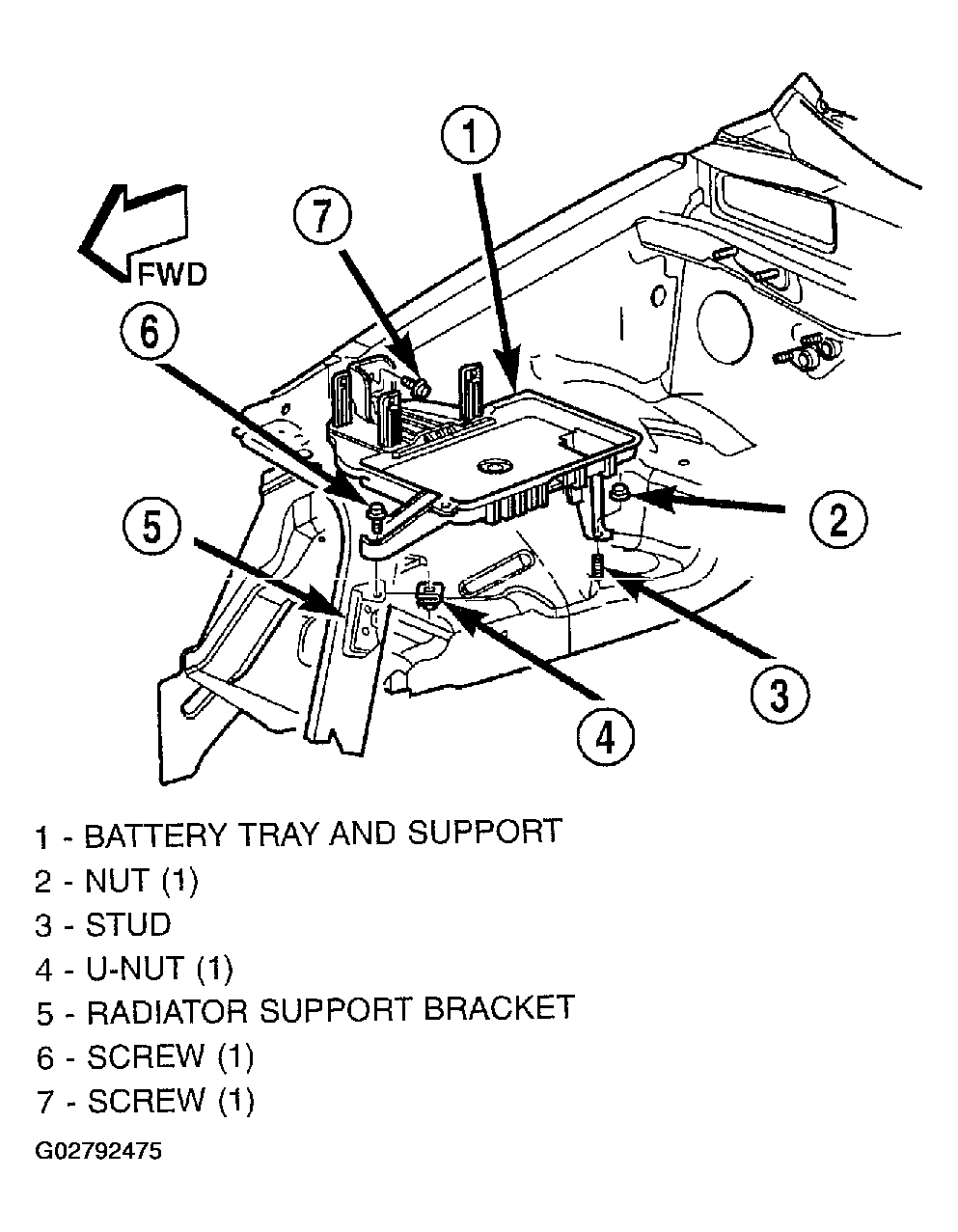

- Remove the one screw that secures the front of the battery tray and support unit to the bracket on the right side of the radiator support (Fig 1
).
Courtesy of DAIMLERCHRYSLER CORP.
- Remove the one screw that secures the outboard side of the battery tray and support unit to the right fender side cowl reinforcement.
- Remove the one nut that secures the rear of the battery tray and support unit to the stud on the right fender front wheelhouse inner panel.
- Remove the battery temperature sensor from the battery tray. Refer to Battery Temperature Sensor in the CHARGING
for battery temperature sensor removal procedure.
- Remove the battery tray and support unit from the right front corner of the engine compartment.
