Battery HOLDDOWN: Removal

All of the battery hold down hardware can be serviced without removal of the battery or the battery tray and support unit.

1. Turn the ignition switch to the Off position. Be certain that all electrical accessories are turned off.
2. Loosen the battery negative cable terminal clamp pinch-bolt hex nut.
3. Disconnect the battery negative cable terminal clamp from the battery negative terminal post. If necessary, use a battery terminal puller to remove the terminal clamp from the battery post.
4. Remove the screw with washer that secures the battery hold down bracket to the U-nut on the inboard side of the battery tray and support unit (Fig 1 ).
5. Remove the battery hold down bracket from the battery tray and support unit.

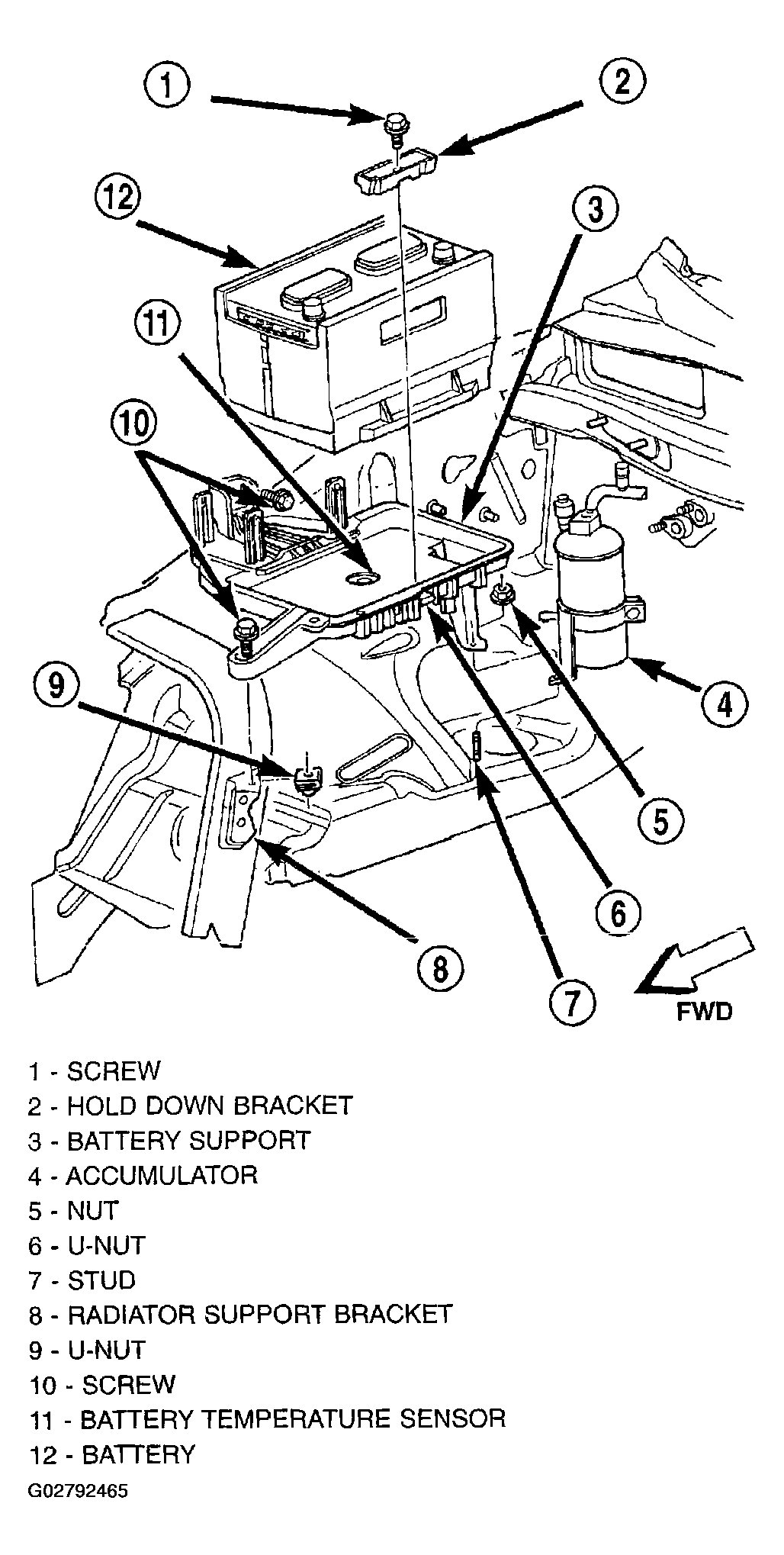

   Fig 1: Removing/Installing Battery Hold Downs

   Courtesy of DAIMLERCHRYSLER CORP.
