Connector PINOUTS

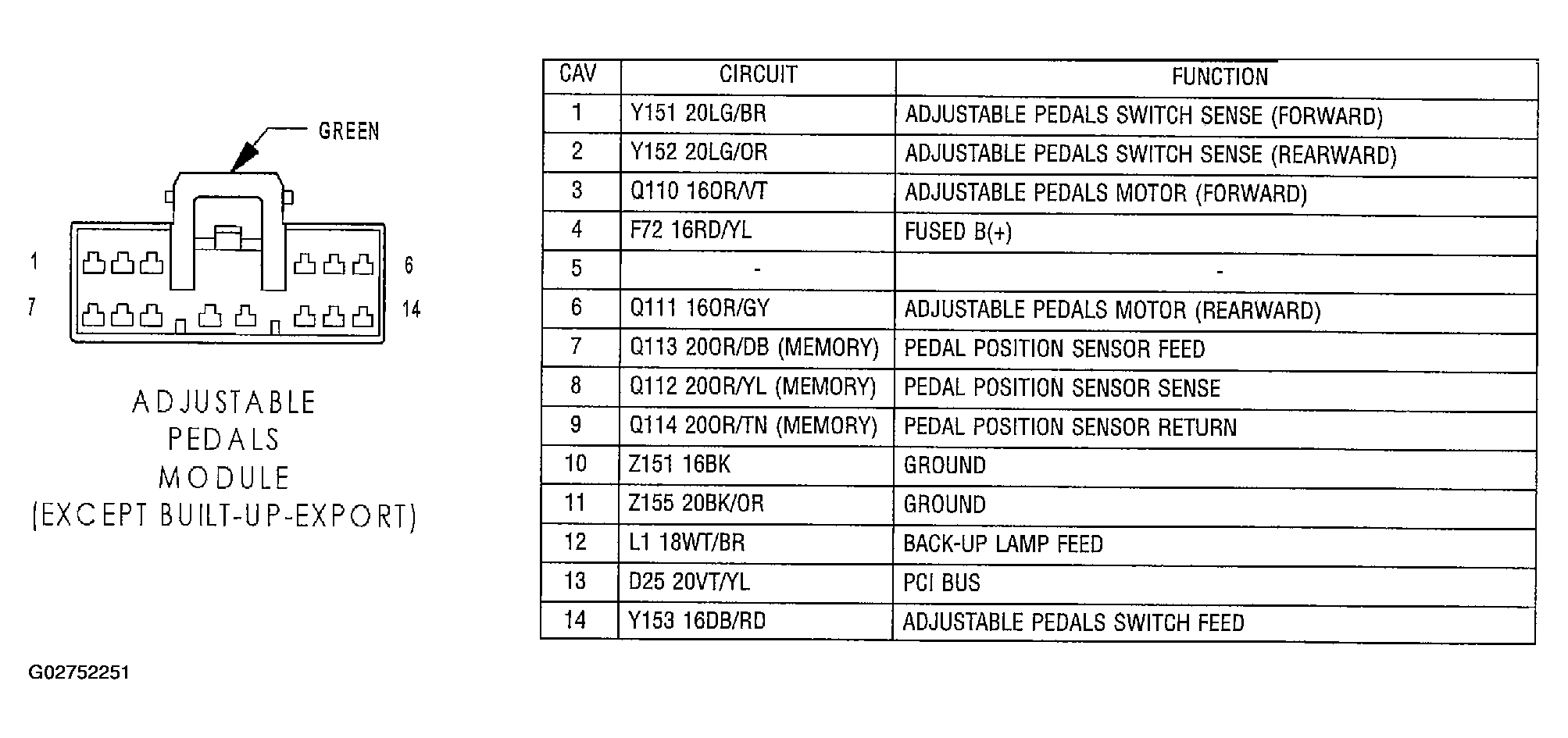

Fig 1: Identifying Adjustable Pedals Module (Except Built-Up-Export) - Green 14 Way (Connector Pinouts)

Courtesy of DAIMLERCHRYSLER CORP.

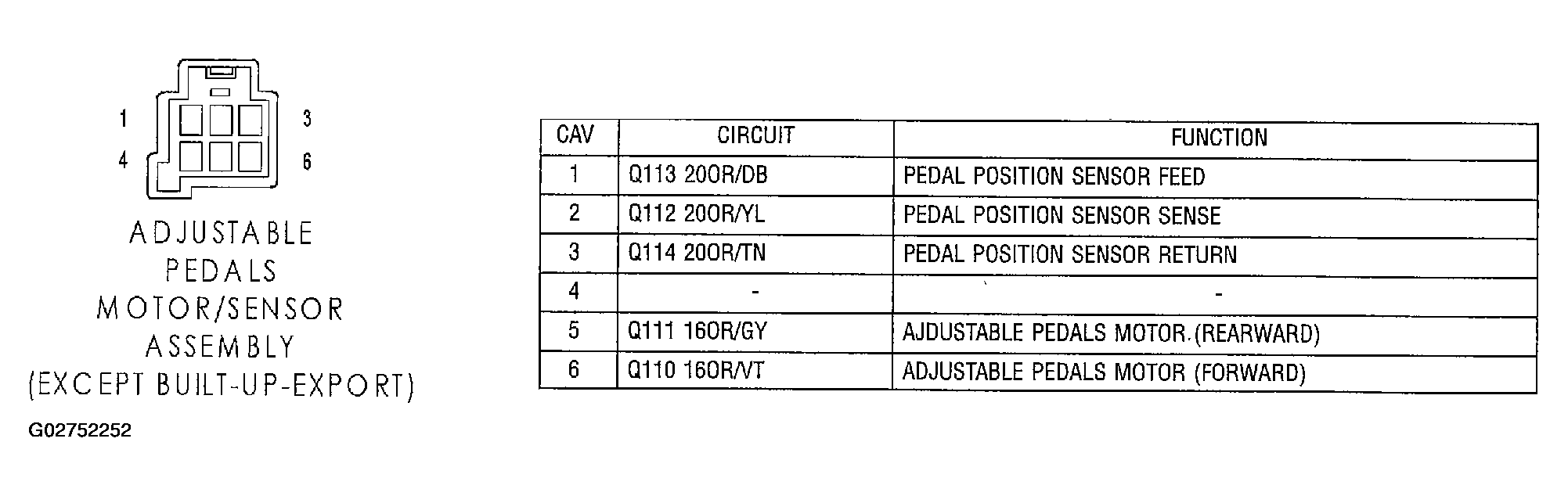

Fig 2: Identifying Adjustable Pedals Motor/Sensor Assembly (Except Built-Up-Export) - 6 Way (Connector Pinouts)

Courtesy of DAIMLERCHRYSLER CORP.

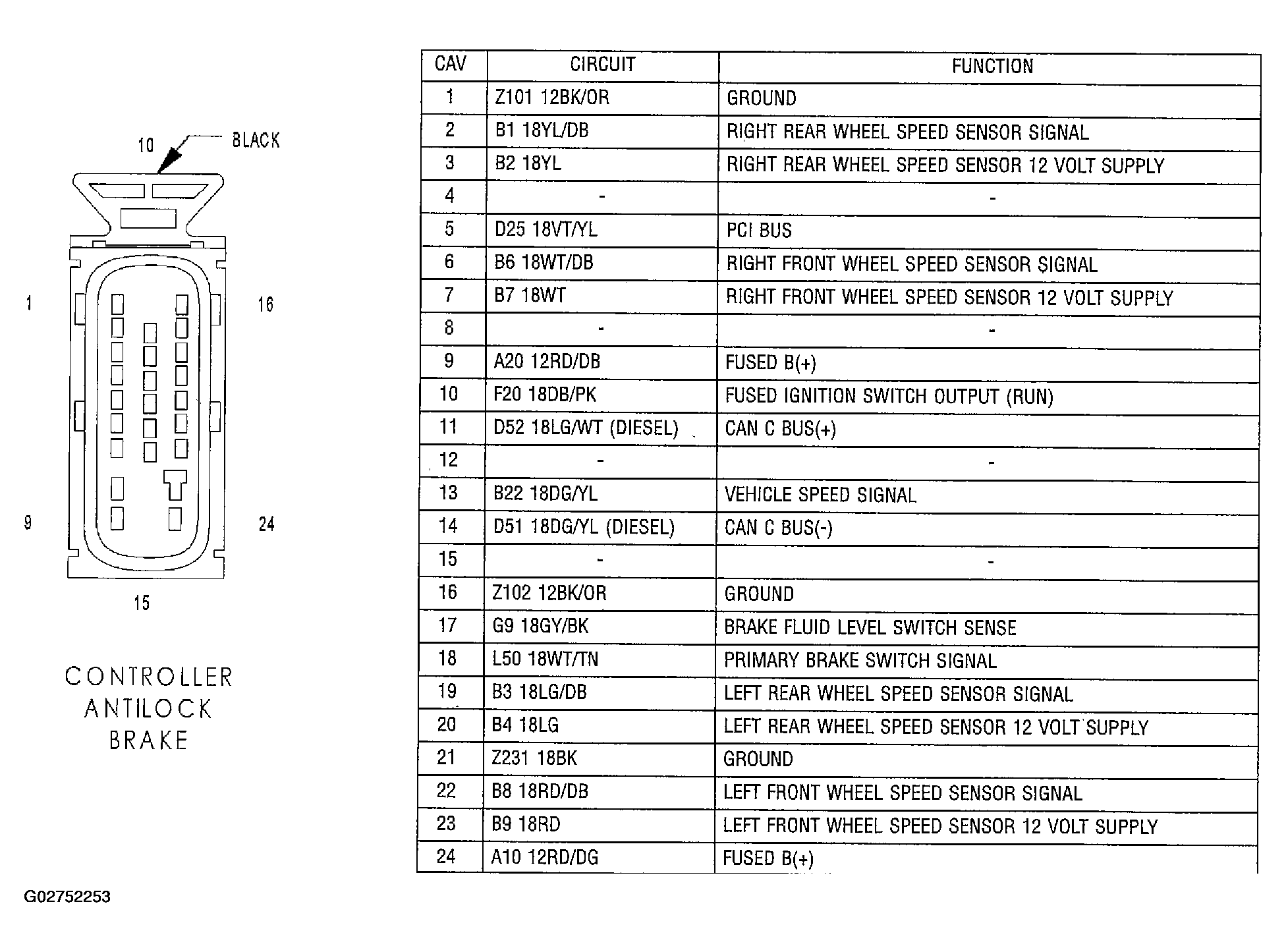

Fig 3: Identifying Controller Anti-Lock Brake - Black 24 Way (Connector Pinouts)

Courtesy of DAIMLERCHRYSLER CORP.

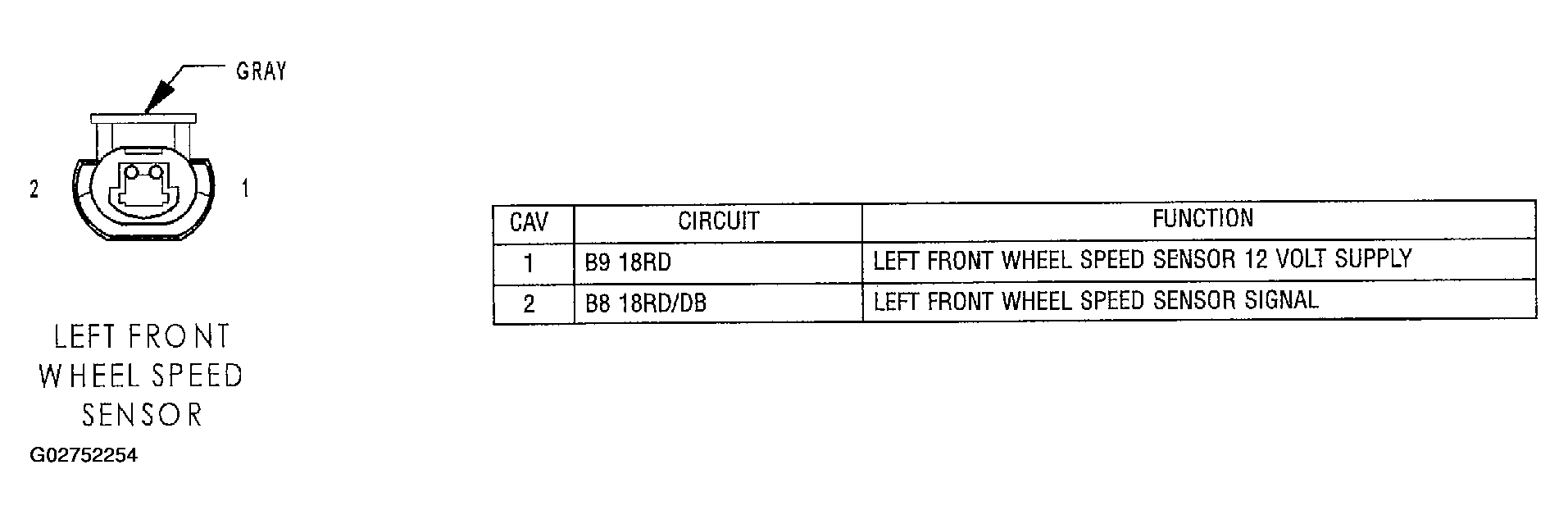

Fig 4: Identifying Left Front Wheel Speed Sensor - Gray 2 Way (Connector Pinouts)

Courtesy of DAIMLERCHRYSLER CORP.

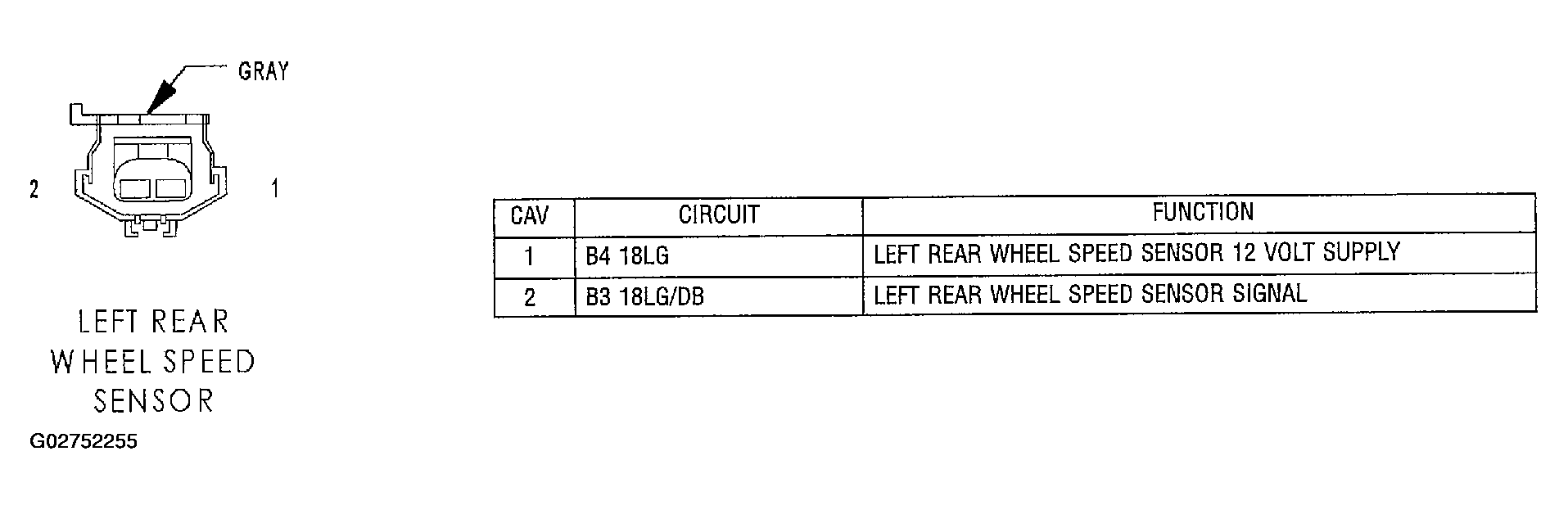

Fig 5: Identifying Left Rear Wheel Speed Sensor - Gray 2 Way (Connector Pinouts)

Courtesy of DAIMLERCHRYSLER CORP.

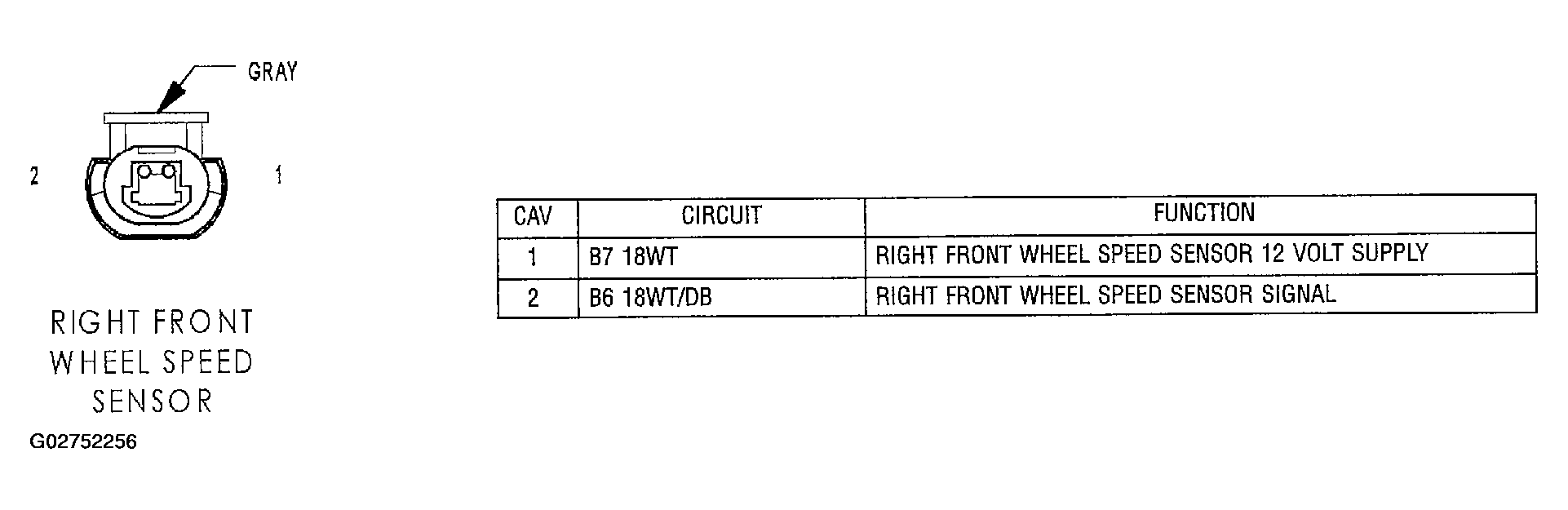

Fig 6: Identifying Right Front Wheel Speed Sensor - Gray 2 Way (Connector Pinouts)

Courtesy of DAIMLERCHRYSLER CORP.

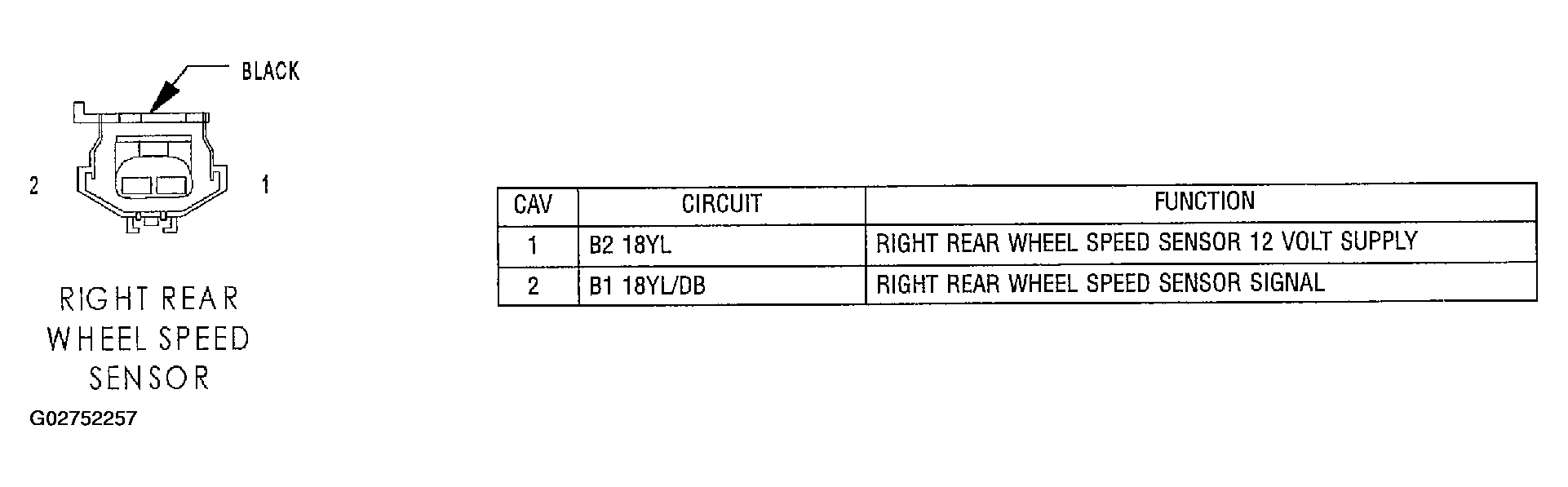

Fig 7: Identifying Right Rear Wheel Speed Sensor - Black 2 Way (Connector Pinouts)

Courtesy of DAIMLERCHRYSLER CORP.
