HCU (Hydraulic Control Unit): Removal

  1. Remove the negative battery cable from the battery.
  2. Remove the air cleaner housing. Refer to 4.0L 6-CYLINDER or 4.7L V8 .
  3. Pull the CAB harness connector release up and remove connector (Fig 1 ).

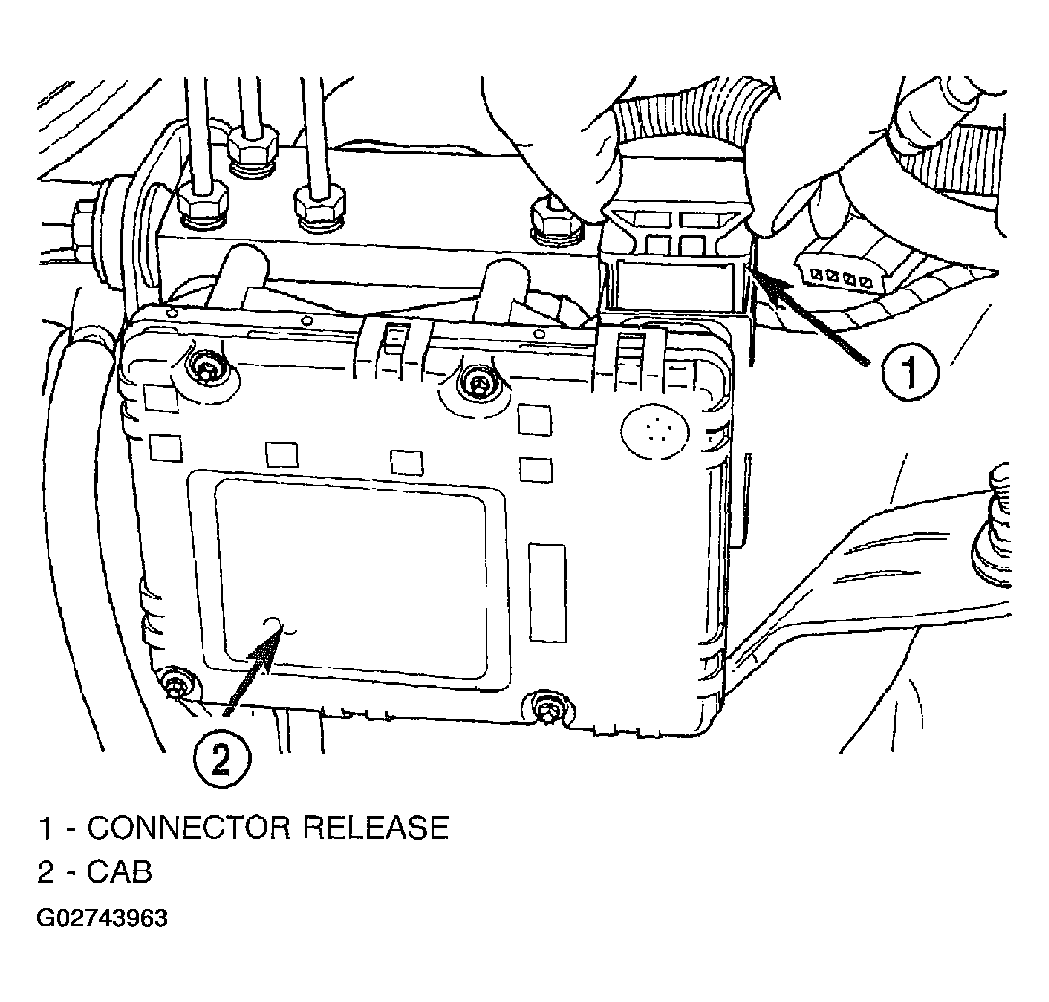

    Fig 1: Pulling CAB Connector Release
    G02743963Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove the brake lines from the HCU.
  5. Remove the HCU/CAB side mounting bolt and the two rear mounting bolts. (Fig 2 ).
  6. Remove the HCU/CAB assembly from the vehicle.

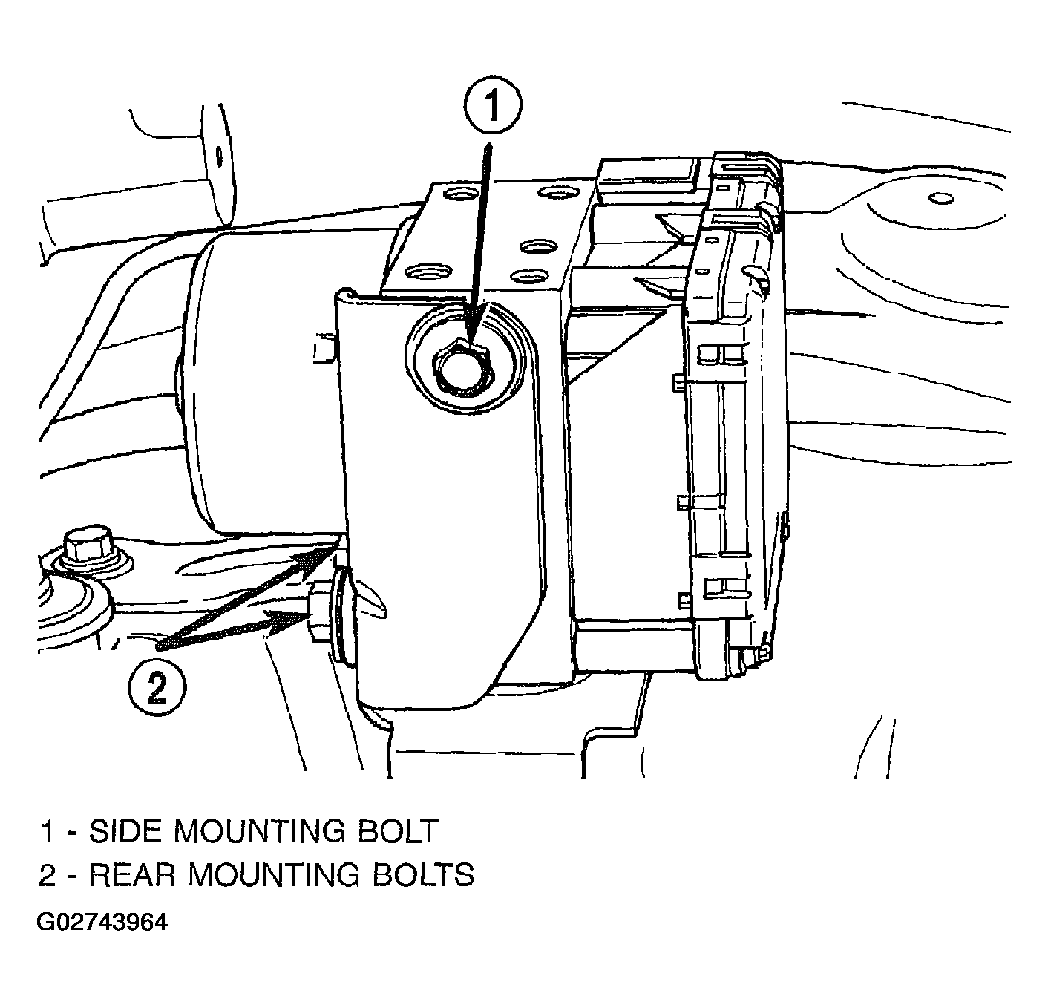

    Fig 2: Removing HCU/CAB Assembly
    G02743964Courtesy of DAIMLERCHRYSLER CORP.
