Connector Identification

CONNECTOR IDENTIFICATION DIRECTORY

Connector Figure
Controller Anti-Lock Brake (Harness Side) 1
"G" Switch Sensor (Harness Side) 2
Pump Motor Connector 3
Front Wheel Speed Sensor (Sensor Side) 4
Rear Wheel Speed Sensor (Sensor Side) 5
Wheel Speed Sensor (Harness Side) 6
BRAKE Warning Indicator Switch 7
Brakelight Switch 8
Fig 1: Identifying Controller Anti-Lock Brake Connector Terminals (Harness Side)
G97C03542Courtesy of CHRYSLER CORP.
Fig 2: Identifying "G" Switch Sensor Connector Terminals (Harness Side)
G97B03551Courtesy of CHRYSLER CORP.

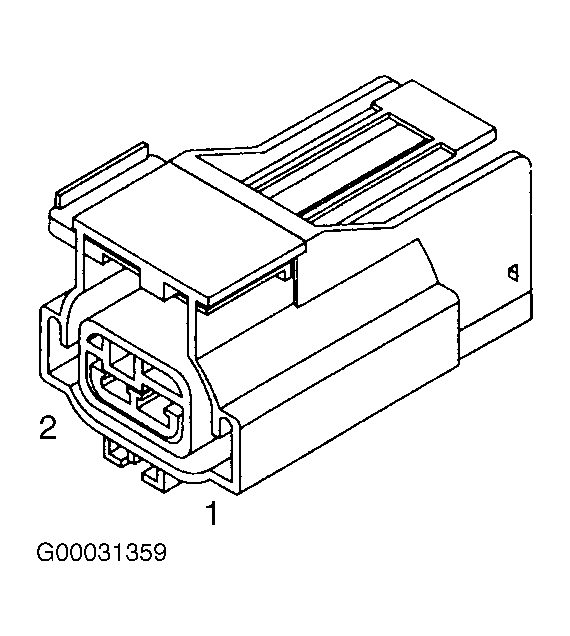

Fig 3: Identifying Pump Motor Connector
G00031359Courtesy of CHRYSLER CORP.
Fig 4: Identifying Front Wheel Speed Sensor Connector Terminals (Sensor Side)
G97F03548Courtesy of CHRYSLER CORP.

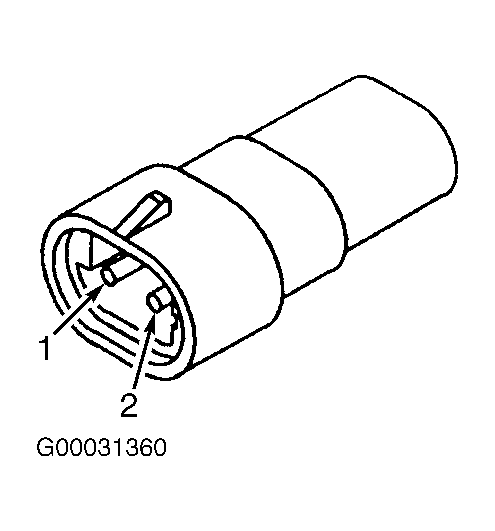

Fig 5: Identifying Rear Wheel Speed Sensor Connector Terminals (Sensor Side)
G00031360Courtesy of CHRYSLER CORP.

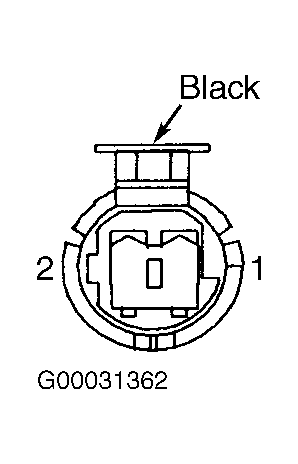

Fig 6: Identifying Rear Wheel Speed Sensor Connector Terminals (Harness Side)
G00031362Courtesy of CHRYSLER CORP.

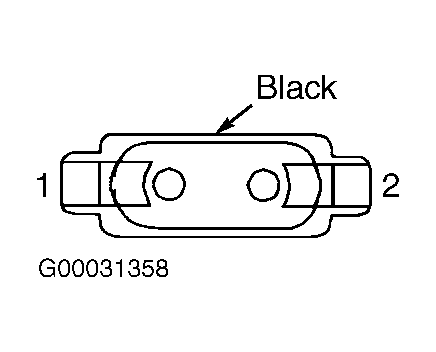

Fig 7: Identifying BRAKE Warning Indicator Switch Connector Terminals
G00031358Courtesy of CHRYSLER CORP.

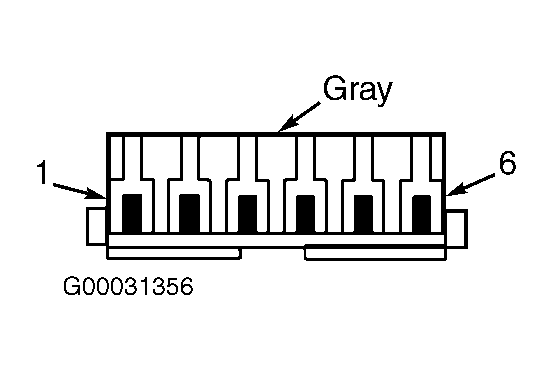

Fig 8: Identifying Brakelight Switch Connector
G00031356Courtesy of CHRYSLER CORP.
