Jacking & Hoisting: Hoist

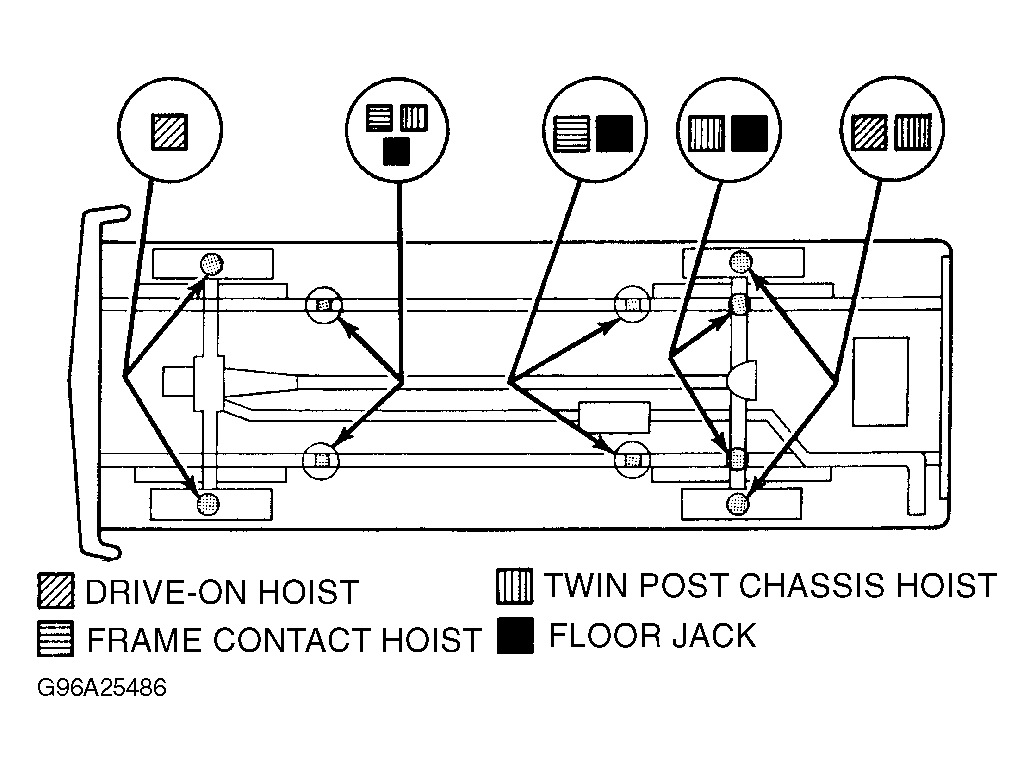

Vehicle may be raised on single or twin post swiveling arm, or ramp-type drive hoists. If using swiveling arm hoist, ensure lifting pads are positioned evenly at subframe lift points. See Figure. All hoists should be equipped with proper adapters to support vehicle at frame rails only.
