Second Brake: Disassembly

  1. Remove second brake drum from output shaft assembly. See Fig 1 . Remove thrust washer from second brake drum.
  2. Using a press and spring compressor, compress piston return springs. Remove snap ring. Remove spring compressor. Remove spring retainer and piston return springs.
  3. Remove second brake piston and piston sleeve from second brake drum by applying compressed air to feed hole on second brake drum. See Fig 2 . Remove "O" rings from second brake piston.

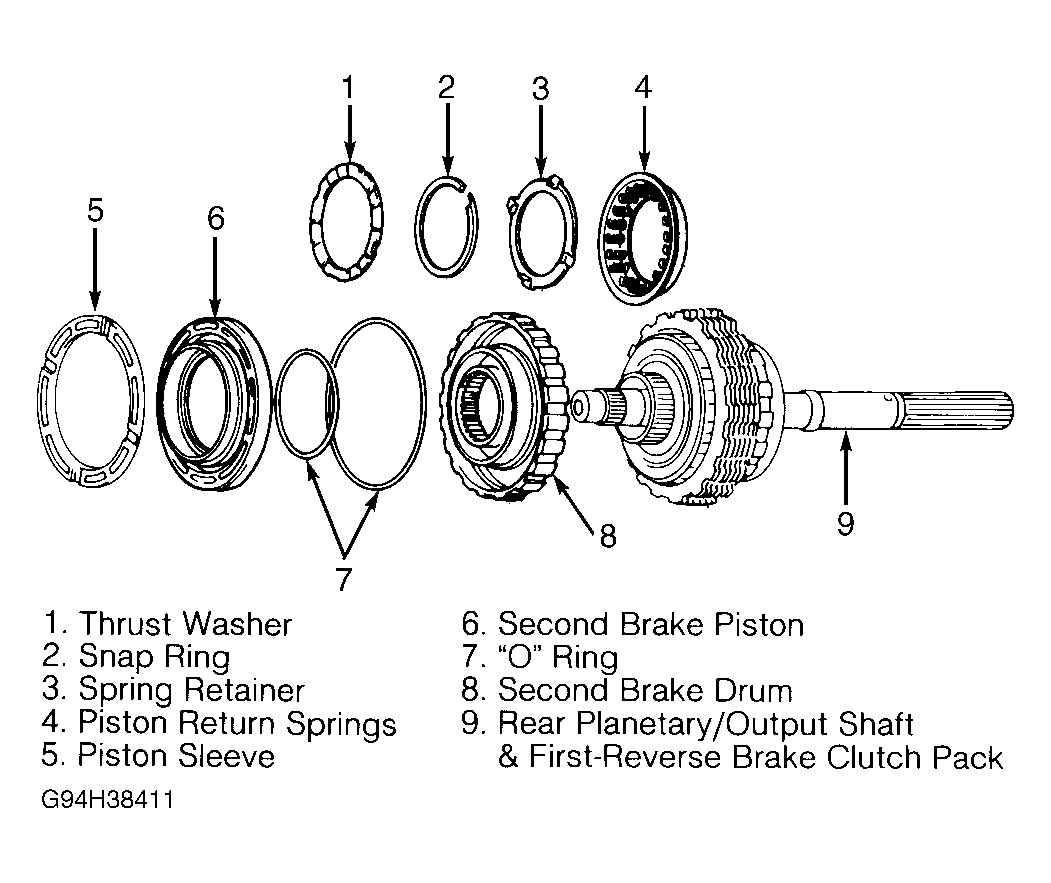

Fig 1: Exploded View Of Second Brake
G94H38411Courtesy of CHRYSLER CORP.
Fig 2: Removing Second Brake Piston
G92F13487Courtesy of CHRYSLER CORP.
