Diagnostic Procedure

  1. Turn ignition off. Depress and hold down trip odometer RESET button. Turn ignition on. DO NOT start engine. Release trip odometer reset button. Compare operation of suspect gauge(s) and/or indicator light(s) with chart. See Fig 1 or Fig 2 .
  2. Instrument cluster will exit self-diagnostics mode at completion of test, if ignition switch is turned off or if Vehicle Speed Sensor (VSS) signal is detected by PCM, indicating that vehicle is moving. If instrument cluster gauge(s) and/or indictor light(s) do not respond properly during actuator test, see DIAGNOSTIC AIDS before replacing instrument cluster. Repeat actuator test if necessary.

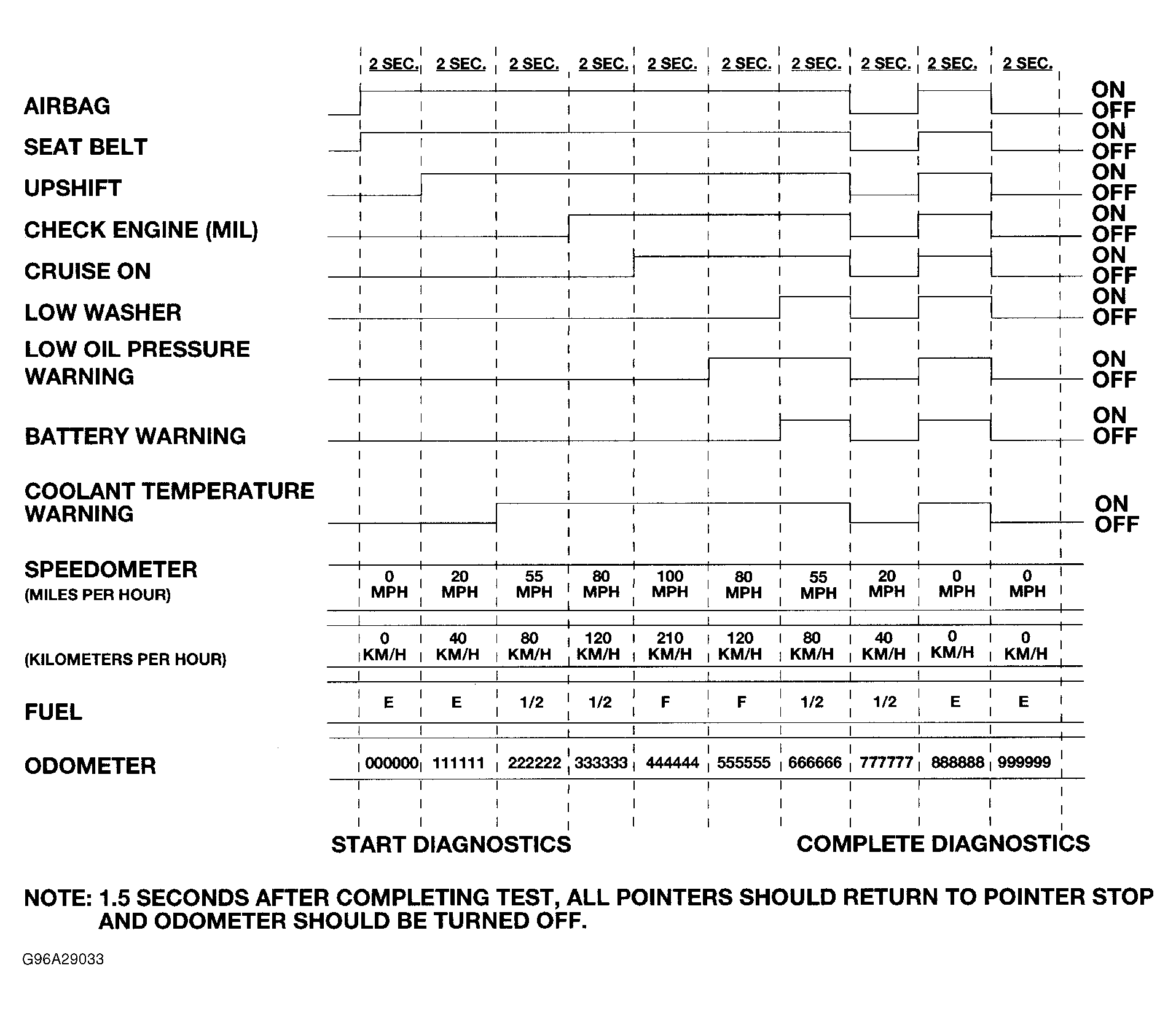

Fig 1: Low-Line Instrument Cluster Actuator Test
G96A29033Courtesy of CHRYSLER CORP.
Fig 2: High-Line Instrument Cluster Actuator Test
G96C29035Courtesy of CHRYSLER CORP.
