Removal & Installation (Front Window Motor)

1. Disconnect negative battery cable. Remove front door trim panel. See DOOR TRIM PANEL  . Pry up on weatherstrip corner and remove inner and outer weather-stripping. See Fig 1 . Put window in up position.
2. Remove bolts securing glass to regulator assembly. Carefully lift glass upward and out of door. Loosen regulator assembly mounting bolts/nuts. See Fig 2 .
3. Lift regulator assembly upward to release assembly from key hole slots. Remove regulator assembly through access hole in inner door panel. To install, reverse removal procedure.

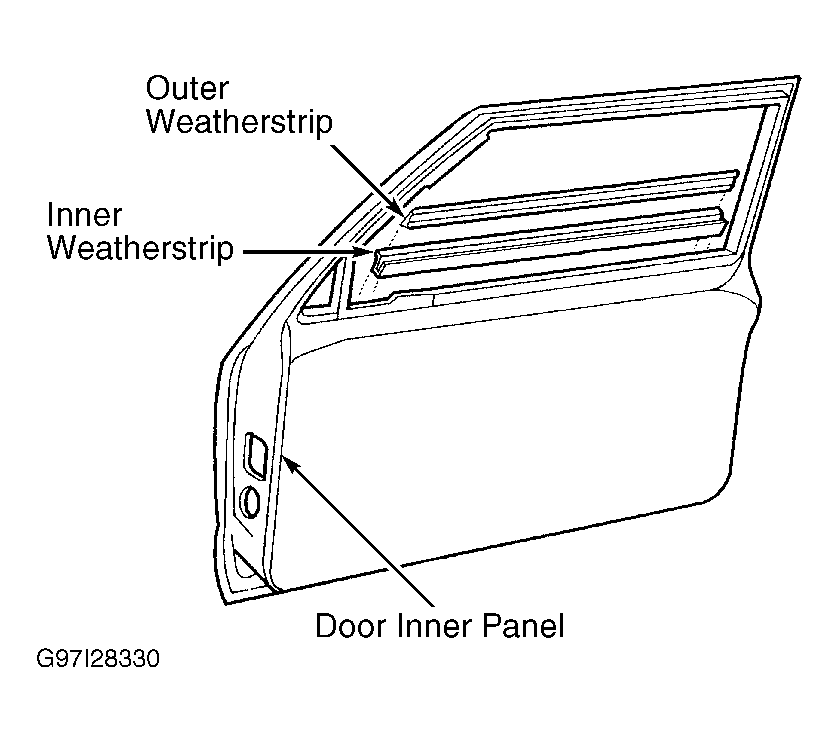

Fig 1: Removing Front Window Weather-Stripping

Courtesy of CHRYSLER CORP.

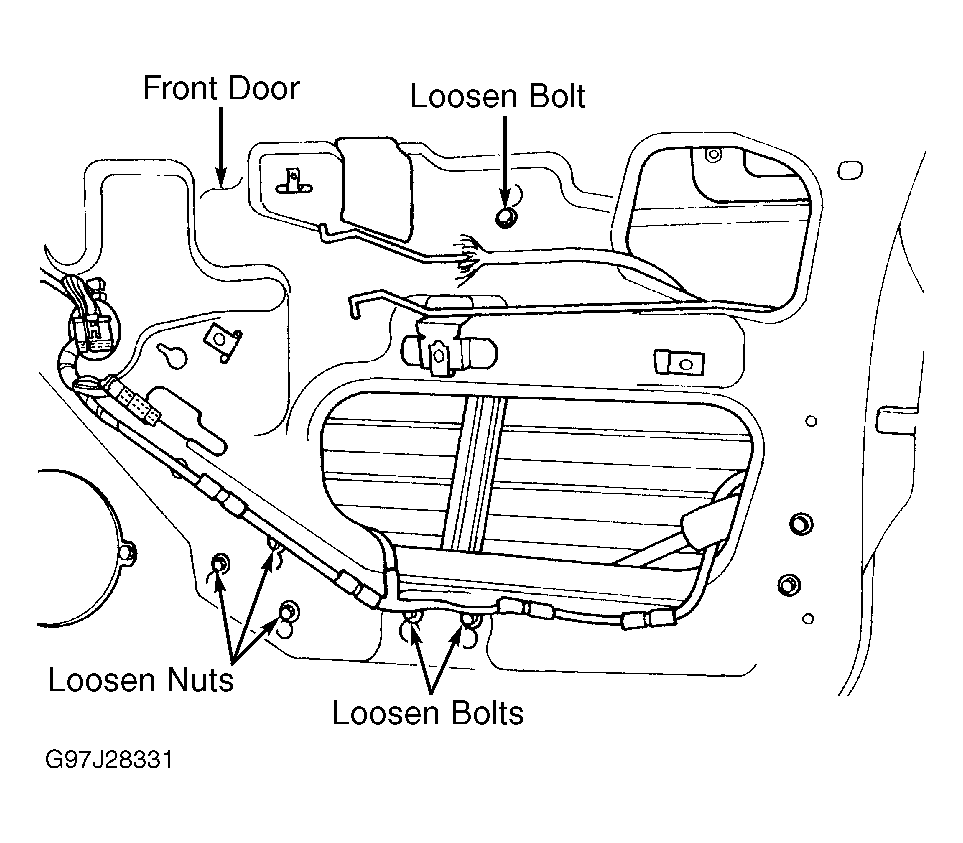

Fig 2: Identifying Front Window Regulator Assembly Mounting Bolts

Courtesy of CHRYSLER CORP.
