| Camshaft Sprocket Bolt |
80 (108) |
| Connecting Rod Cap Nut |
33 (45) |

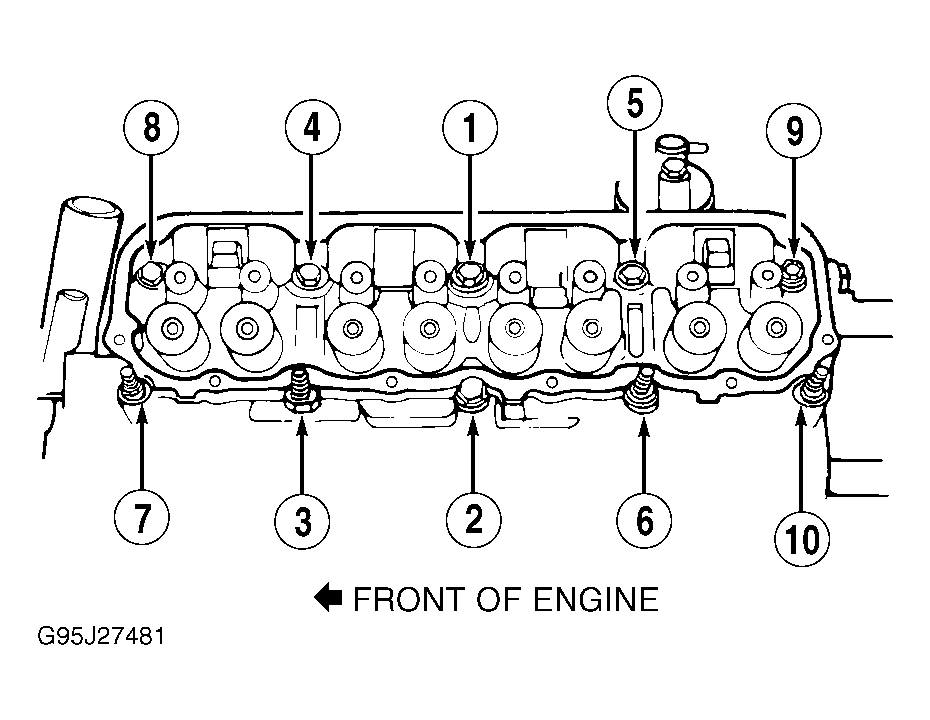

| Cylinder Head Bolt |
| Step 1 (Bolts No. 1-10) |
22 (30) |
| Step 2 (Bolts No. 1-10) |
45 (61) |
| Step 3 |
| Bolts No.1-6 |
110 (149) |
| Bolt No.7 |
100 (136) |
| Bolts No. 8-10 |
110 (149) |
| Drive Plate-To-Converter Bolt |
40 (54) |

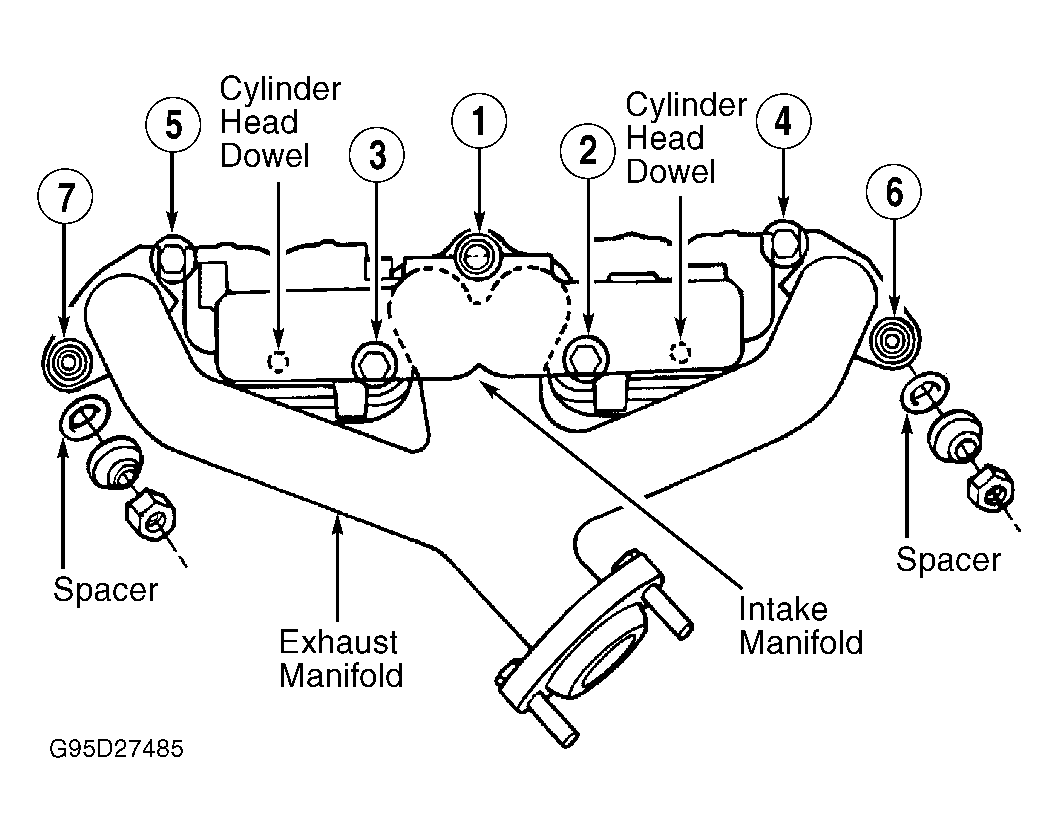

| Exhaust Manifold Bolt |
| Bolt No.1 |
30 (41) |
| Bolts No. 6 & 7 |
23 (31) |
| Exhaust Manifold Pipe Nut |
20 (27) |
| Fan Bolt |
18 (24) |
| Flexplate-To-Crankshaft Bolt (A/T) |
105 (143) |
Flywheel-To-Crankshaft Bolt (M/T)
|
70 (95) |
| Intake Manifold Bolt |
| Bolts No. 2-5 |
23 (31) |
| Main Bearing Cap Bolt |
| Step 1 |
40 (54) |
| Step 2 |
70 (95) |
| Step 3 |
80 (108) |
| Oil Pump Retaining Bolt (Long & Short) |
17 (23) |
| Oxygen (HO2S) Sensor Bolt |
23 (30) |
| Rocker Arm Bolt |
21 (28) |
| Starter Bolt |
33 (45) |
| Vibration Damper Bolt |
80 (108) |
| Water Pump Bolt |
23 (31) |
| INCH Lbs. (N.m) |
| Front Cover-To-Block Bolt |
| 1/4" - 20 |
60 (7) |
| 5/16" - 18 |
|
| Oil Pan Bolt |
| 1/4" X 20 |
84 (9.5) |
| 5/16" X 18 |
|
| Oil Pump Cover Bolt |
70 (8) |
| Throttle Body-To-Intake Bolt |
90 (10) |
| Valve Cover Bolt |
115 (13) |
