Connector Terminal Identification

Unless otherwise indicated, harness side connectors are displayed.

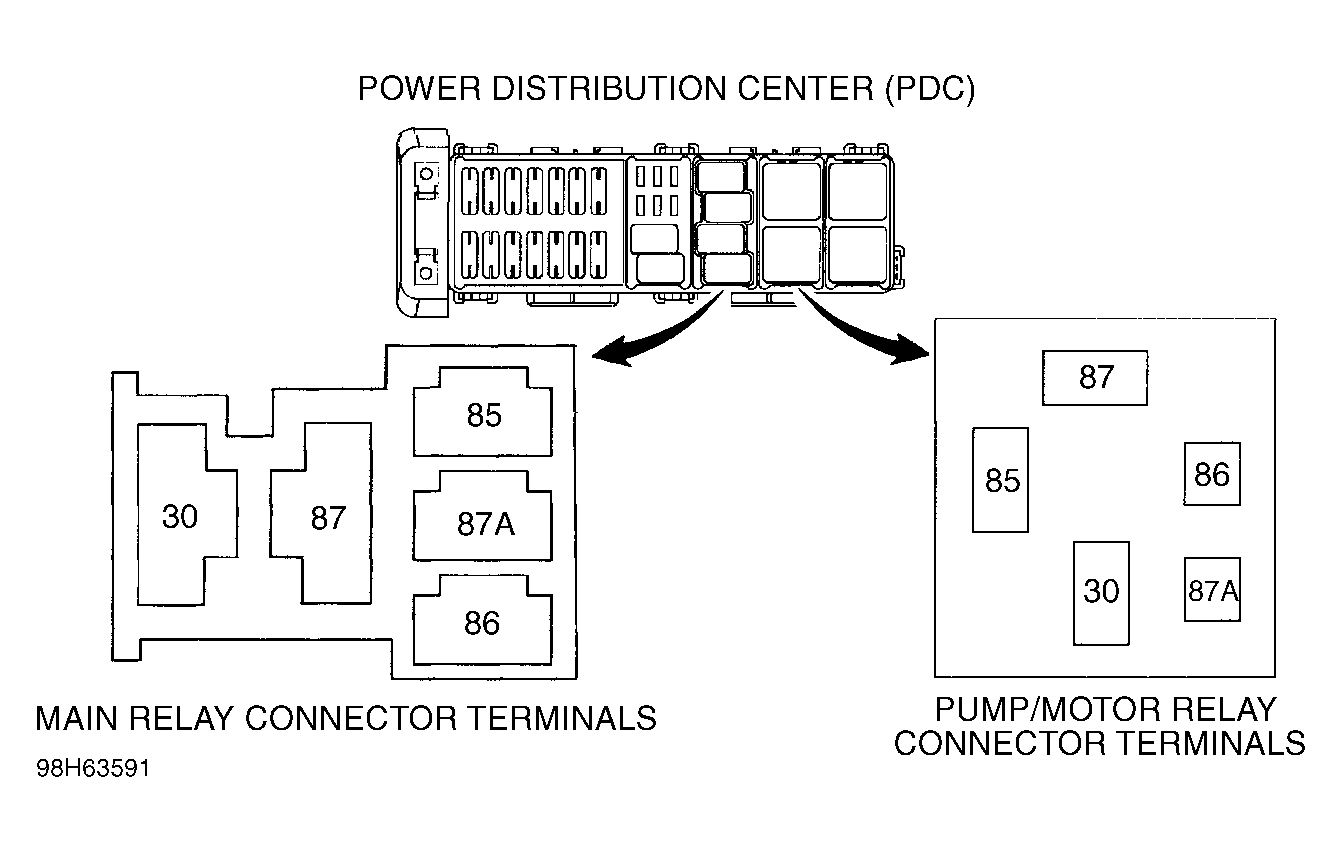

Fig 1: ABS Relay Connectors

Courtesy of CHRYSLER CORP.

Fig 2: Controller Anti-Lock Brake (CAB) Connectors

Courtesy of CHRYSLER CORP.

Fig 3: Data Link Connector (DLC)

Courtesy of CHRYSLER CORP.

Fig 4: Front Wheel Speed Sensor (WSS) Connector

Courtesy of CHRYSLER CORP.

Fig 5: "G" Switch Connector

Courtesy of CHRYSLER CORP.

Fig 6: Hydraulic Control Unit (HCU) Component Connector

Courtesy of CHRYSLER CORP.

Fig 7: Hydraulic Control Unit (HCU) Harness Connector

Courtesy of CHRYSLER CORP.

Fig 8: Ignition Switch Connector

Courtesy of CHRYSLER CORP.

Fig 9: Instrument Cluster Connector

Courtesy of CHRYSLER CORP.

Fig 10: Pump/Motor Connector

Courtesy of CHRYSLER CORP.

Fig 11: Rear Wheel Speed Sensor (WSS) Connector

Courtesy of CHRYSLER CORP.
