Power Distribution Center: Notes

The power distribution center is located in the engine compartment near the battery.

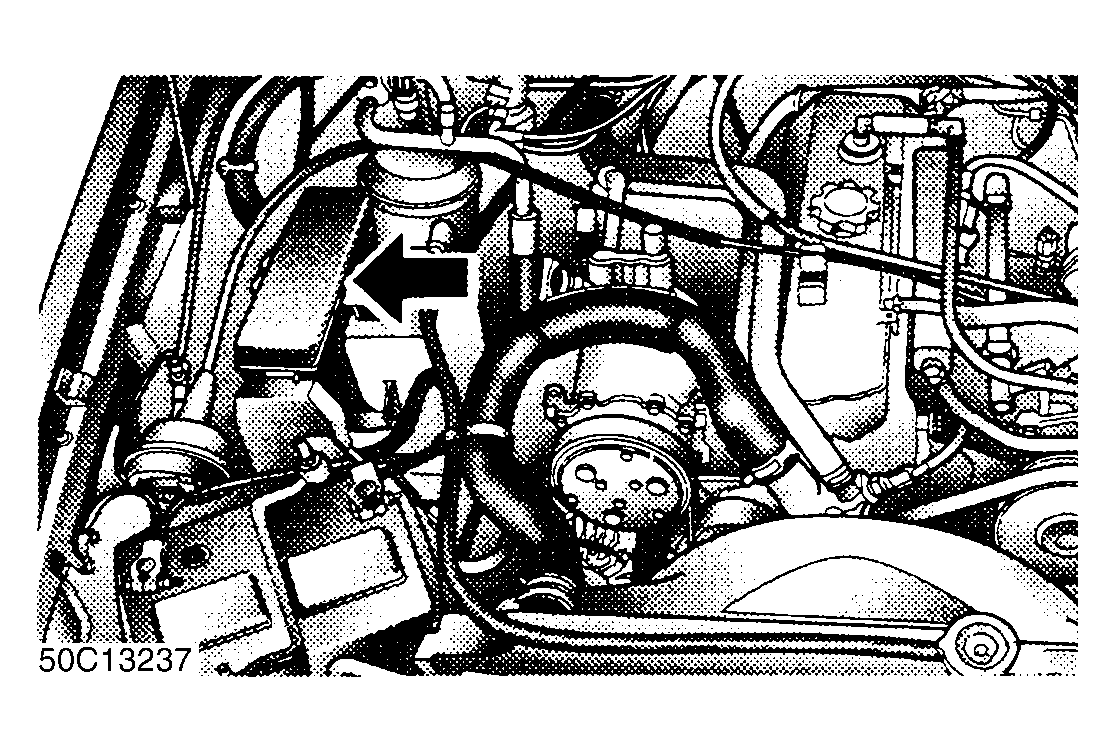

Fig 1: Power Distribution Center Location
G50C13237Courtesy of CHRYSLER CORP.

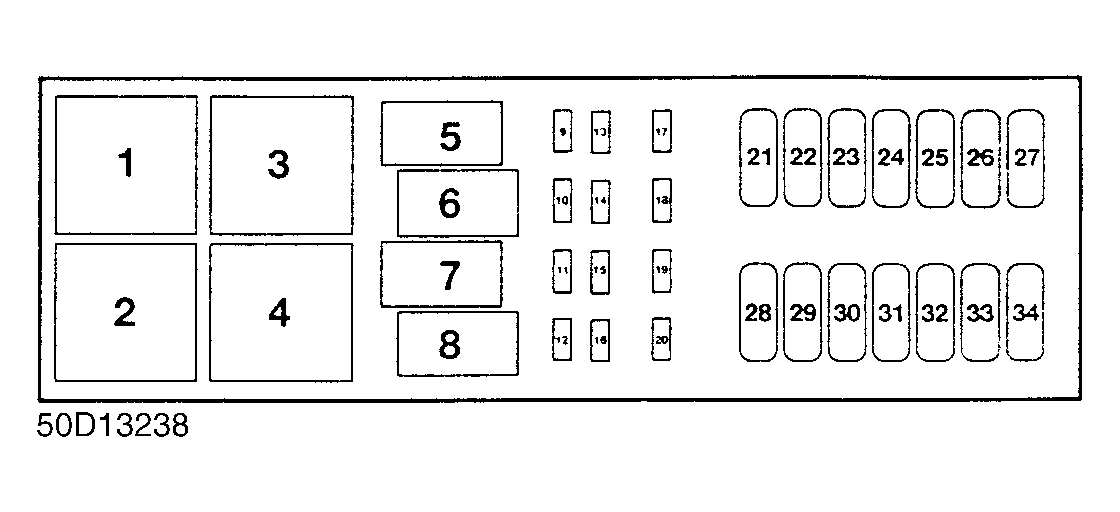

Fig 2: Power Distribution Center Identification
G50D13238Courtesy of CHRYSLER CORP.
