Connector Views

NOTE: For connector views, refer to illustrations. See Figure -Fig 6 .

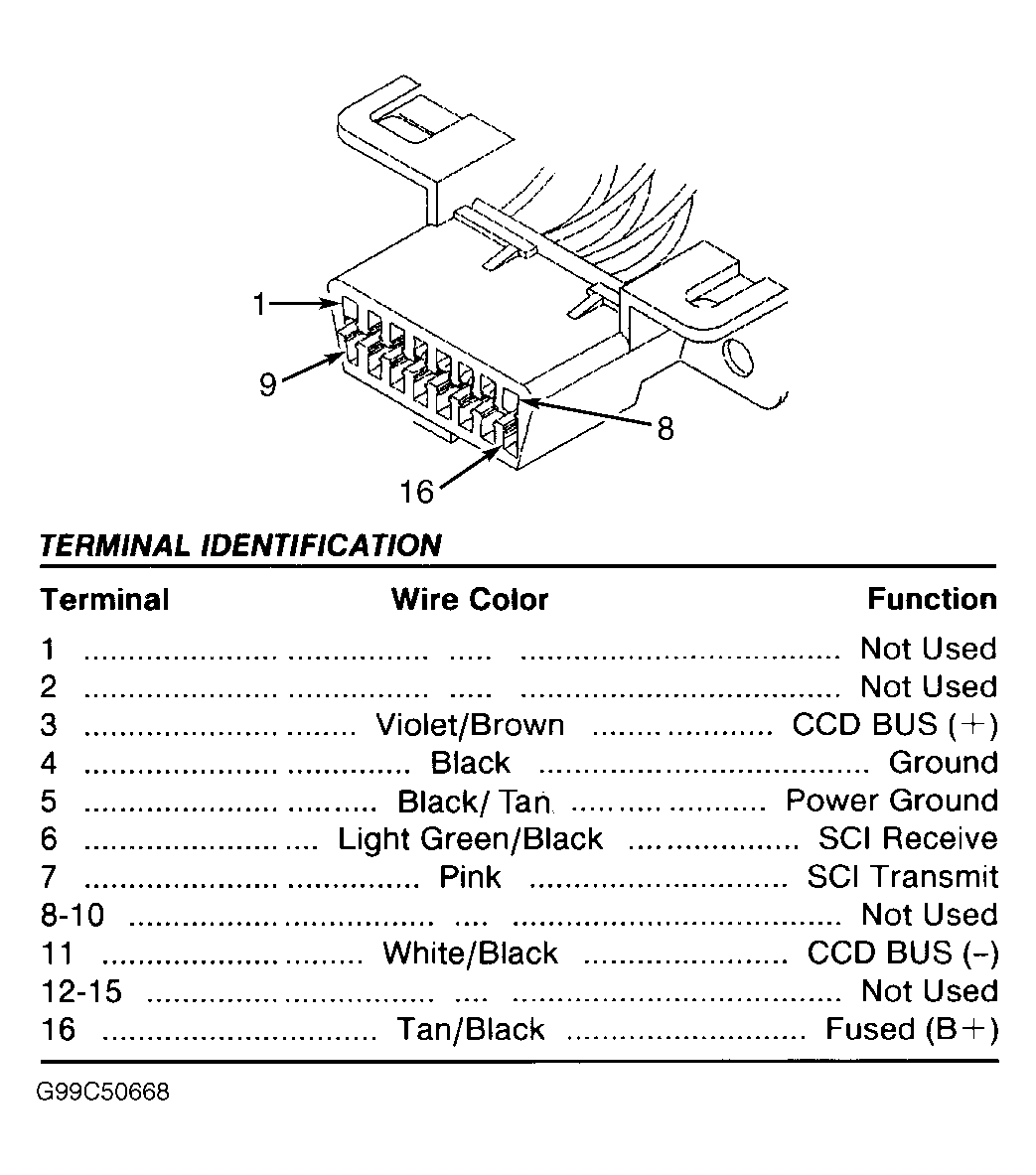

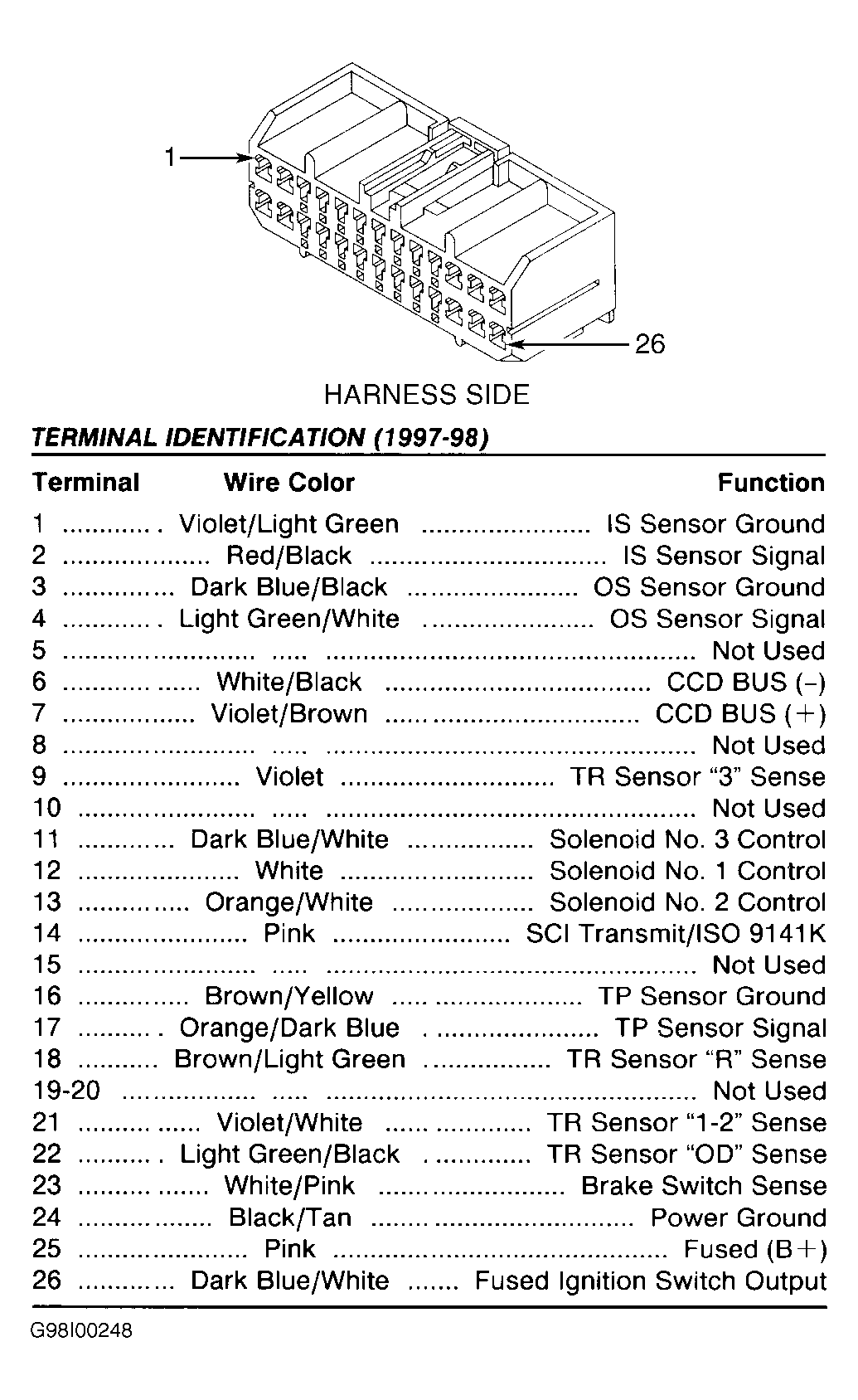

Fig 1: Identifying TCM Harness Connector Terminals, Circuits & Functions (Harness Side)
G98I00248Courtesy of CHRYSLER CORP.

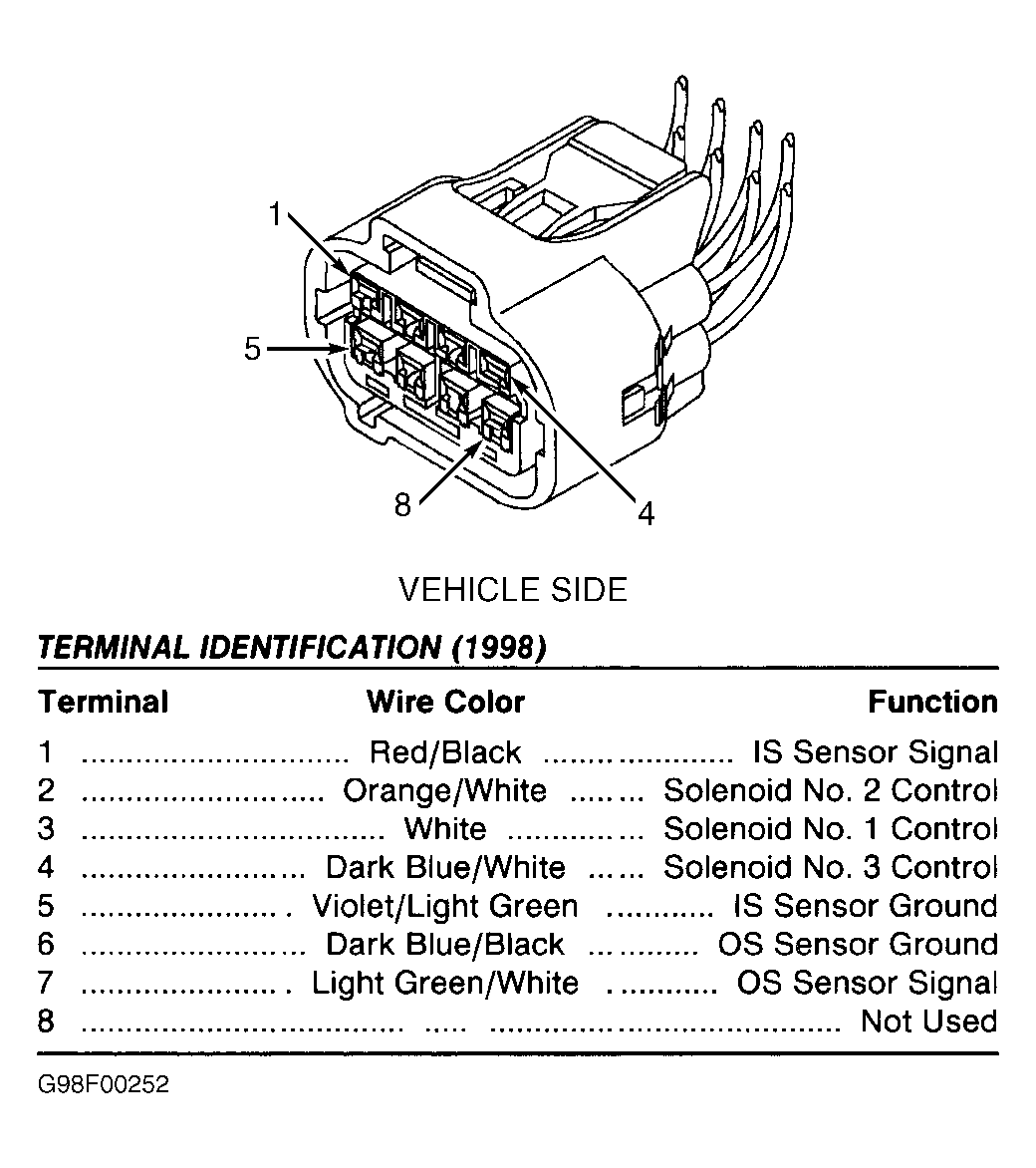

Fig 2: Identifying Transmission Solenoid Harness Connector Terminals, Circuits & Functions (Vehicle Side)
G98F00252Courtesy of CHRYSLER CORP.

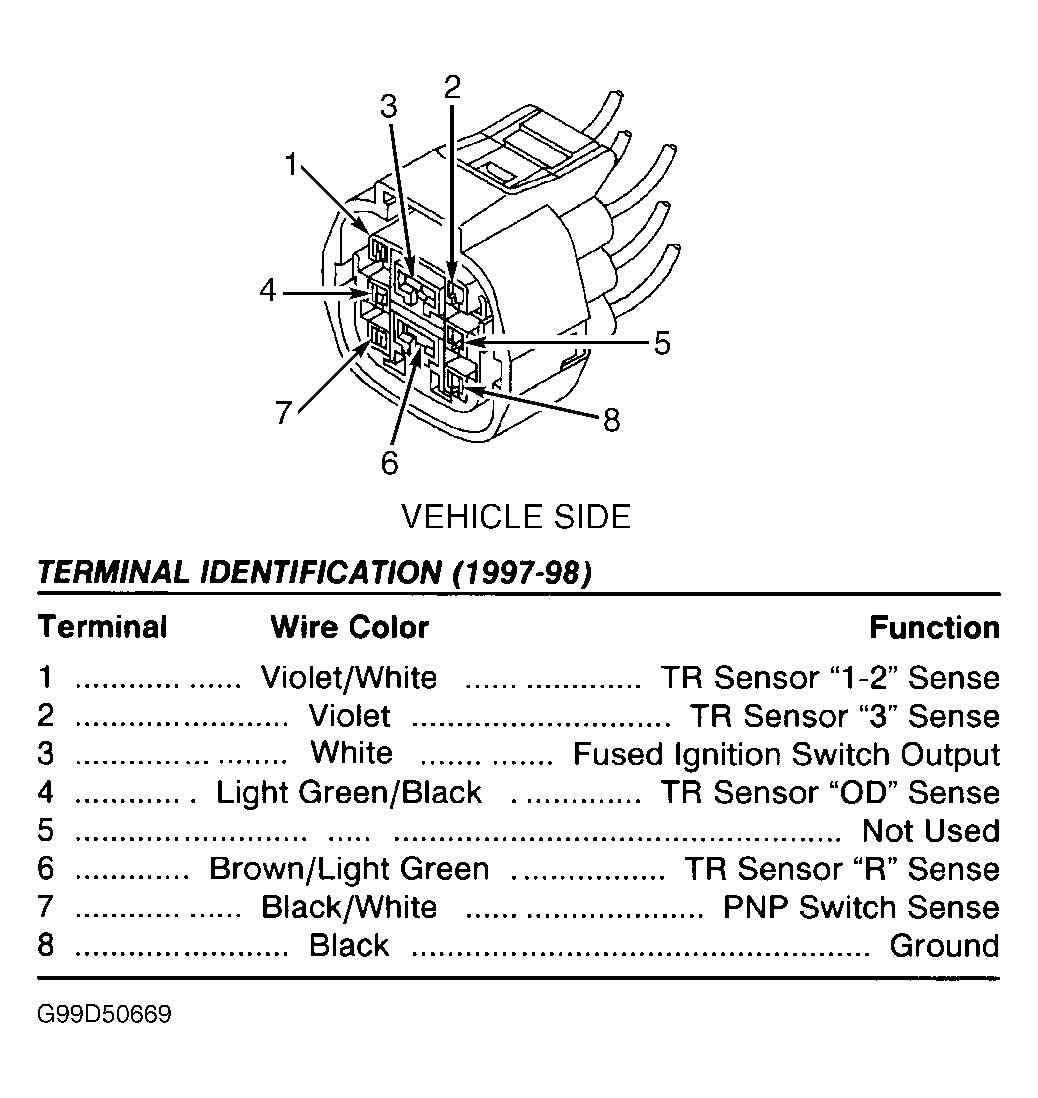

Fig 3: Identifying Transmission Range (TR) Sensor Harness Connector Terminals, Circuits & Functions (Vehicle Side)
G99D50669Courtesy of CHRYSLER CORP.

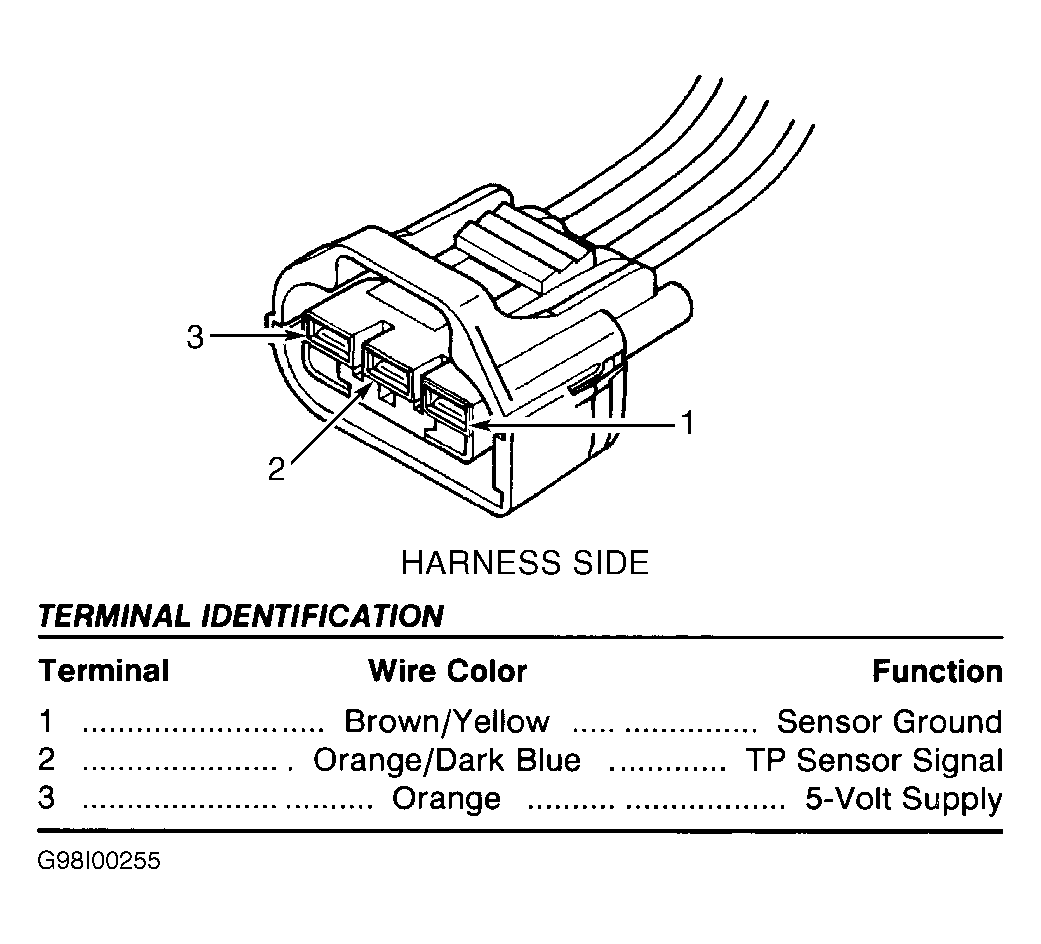

Fig 4: Identifying Throttle Position (TP) Sensor Harness Connector Terminals, Circuits & Functions (Harness Side)
G98I00255Courtesy of CHRYSLER CORP.

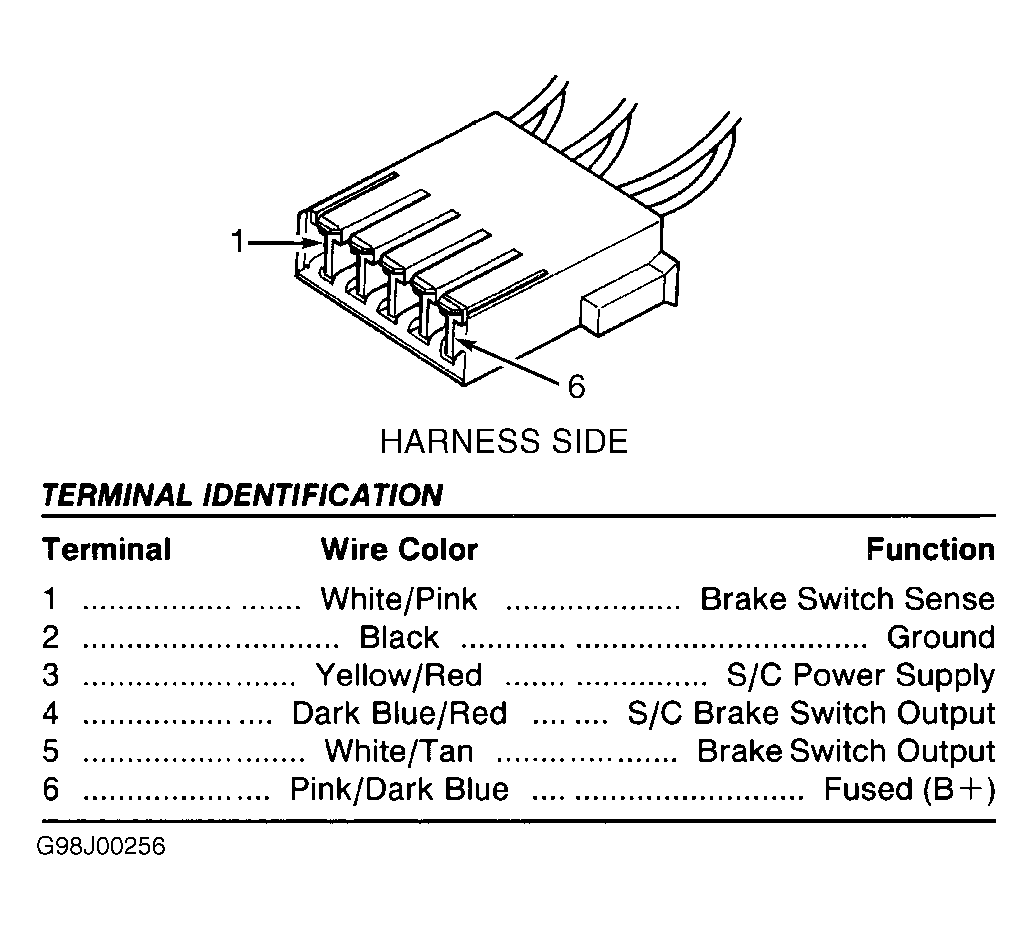

Fig 5: Identifying Brake Switch Harness Connector Terminals, Circuits & Functions (Harness Side)
G98J00256Courtesy of CHRYSLER CORP.

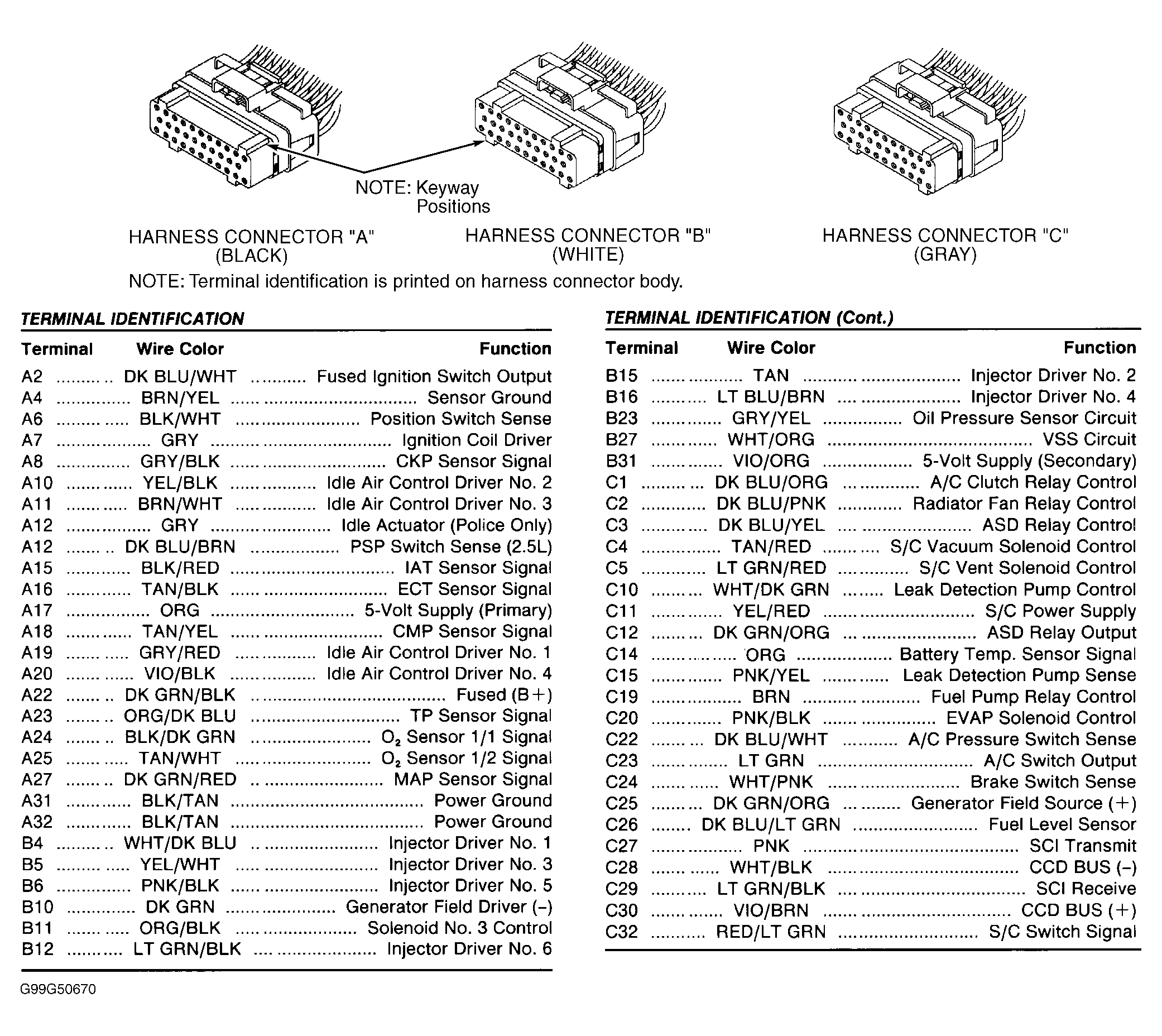

Fig 6: Identifying PCM Harness Connector Terminals, Circuits & Functions (Harness Side)
G99G50670Courtesy of CHRYSLER CORP.
