Temperature Control Cable: Installation

WARNING: This page is about a different car, the 1999 Dodge Pickup, 1999 Dodge Durango, 1999 Dodge Dakota, and 1999 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Before installing temperature control cable, ensure that self-adjuster clip is positioned as indicated. See Fig 2. Measurements must be made with cable end bottomed against flag retainer on A/C-heater control panel end of cable housing.
Measure distance between center of self-adjusting clip and end of cable flag retainer. If distance is not as specified, adjust self-adjuster clip. To complete installation, reverse removal procedure.

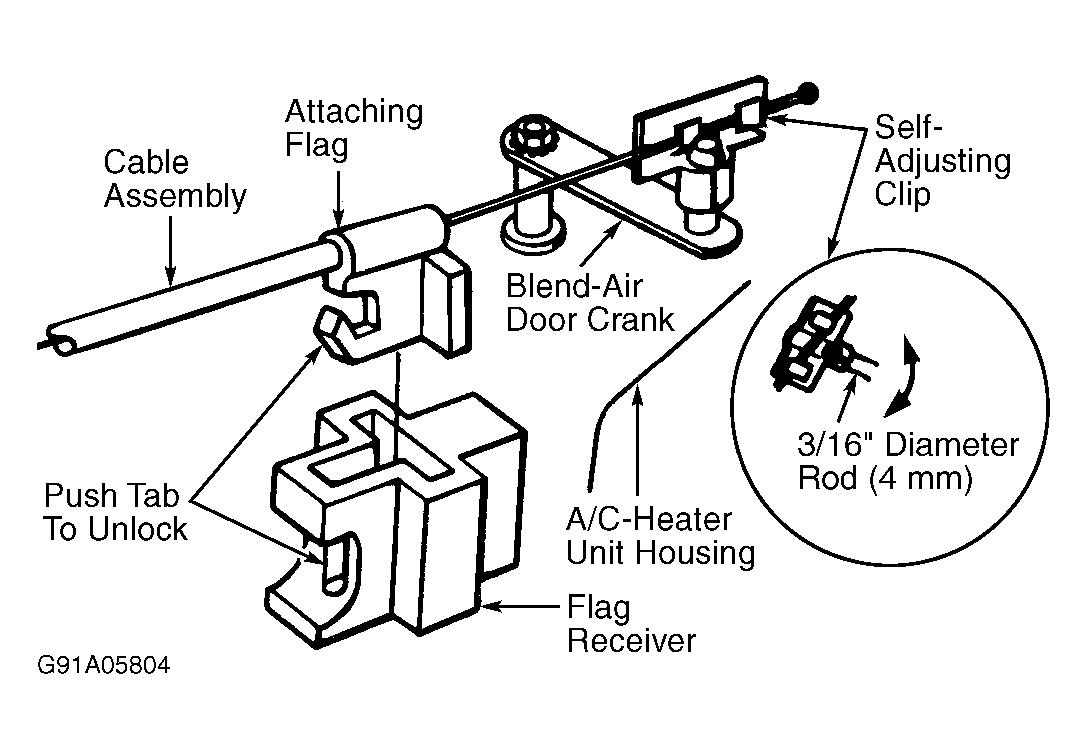

Fig 1: Removing Control Cable Flag From Receiver (Typical)

Courtesy of CHRYSLER CORP.

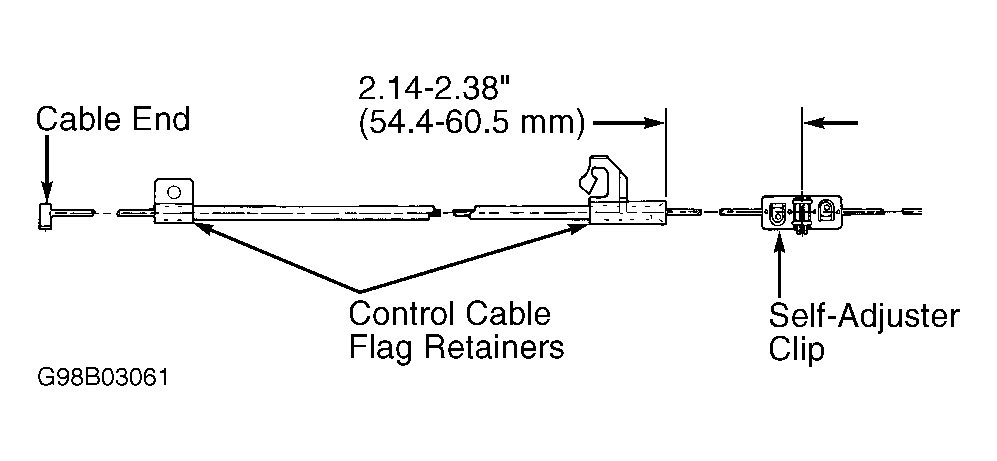

Fig 2: Adjusting Temperature Control Cable (Dakota & Durango)

Courtesy of CHRYSLER CORP.
