Adjuster Plug: Disassembly

  1. Using a screwdriver, carefully remove and discard thrust bearing retainer. Remove spacer, thrust bearing and bearing races. See Fig 1. Remove and discard adjuster plug "O" ring.
  2. Remove retaining ring. Remove and discard dust seal. Pry oil seal from adjuster plug, and discard seal. Inspect needle bearing. If necessary, press bearing from spacer end of adjuster plug.

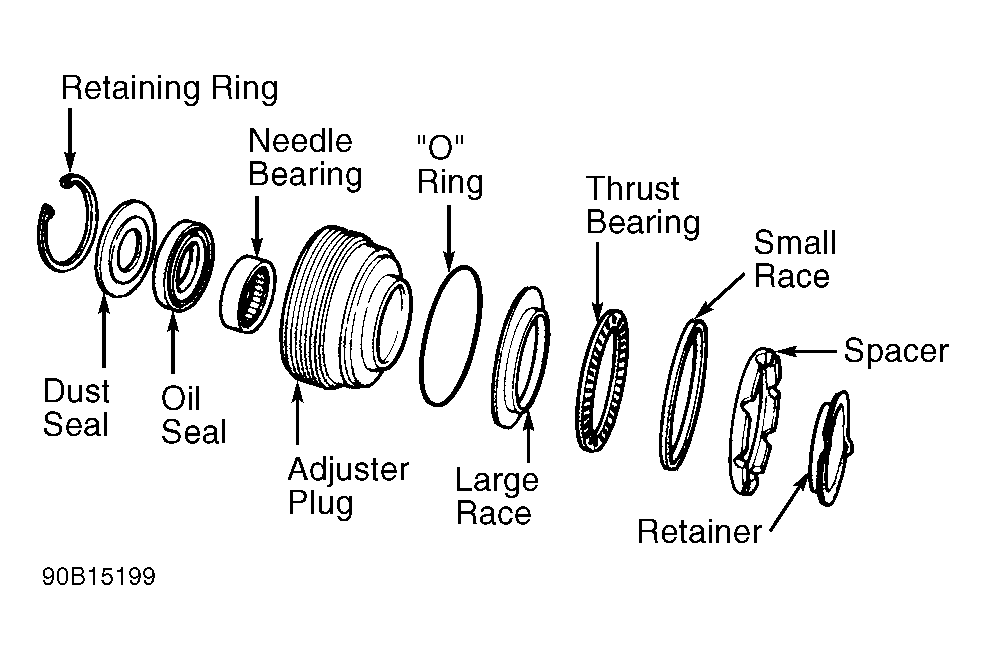

Fig 1: Exploded View Of Adjuster Plug Assembly
G90B15199Courtesy of CHRYSLER CORP.
