Valve Body Assembly: Reassembly
- Lubricate valve body components with power steering fluid. Install NEW "O" rings in seal grooves. Carefully install NEW Teflon rings over "O" rings. DO NOT
damage seal rings during installation.NOTE: Teflon seal rings may appear distorted after installation. However, heat of operation will straighten them.
- Lubricate spool valve "O" ring with power steering fluid. Install "O" ring on spool valve. Carefully insert spool valve into valve body.
- Push spool valve through valve body until drive pin hole is visible at opposite end of valve body and spool valve is even with notched end of valve. Install stub shaft into spool valve and valve body. Install drive pin.

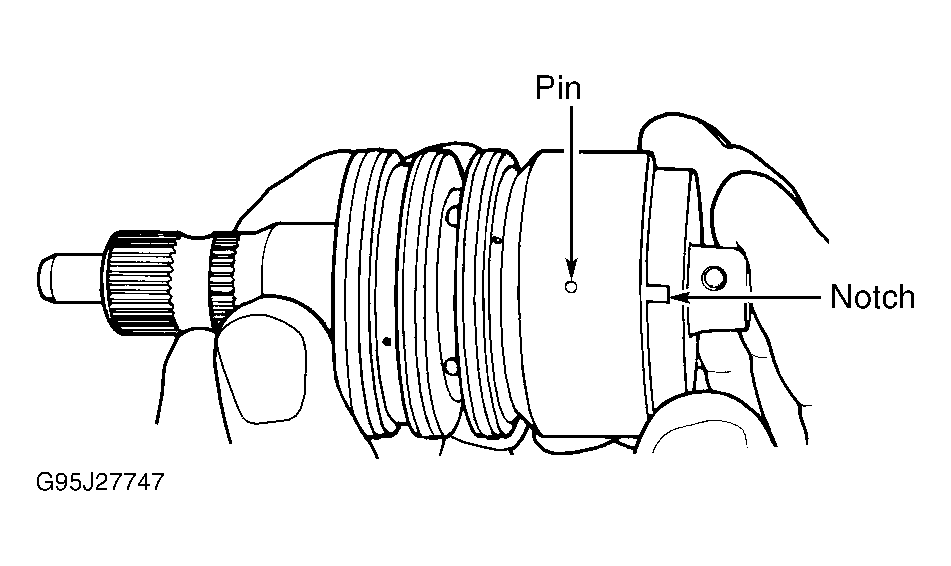

- Align stub shaft drive pin with spool valve locating hole. Align notch in stub shaft cap with pin in valve body. Press stub shaft and spool valve into valve body. Install stub shaft cap "O" ring into valve body. See Figure.
CAUTION:
Before installing valve body into gear housing, ensure valve body stub shaft locating pin is fully engaged in stub shaft cap notch. DO NOT
allow stub shaft to disengage from valve body pin. See Fig 1.
