Housing Assembly: Disassembly

Remove single-lip dust seal. Using snap ring pliers, remove retaining ring. Remove 2 washers (one steel and one nylon). Remove double-lip oil seal from housing using pry tool, taking care not to damage housing bore. See Fig 1. Press sector shaft bearing out of housing from lower end.

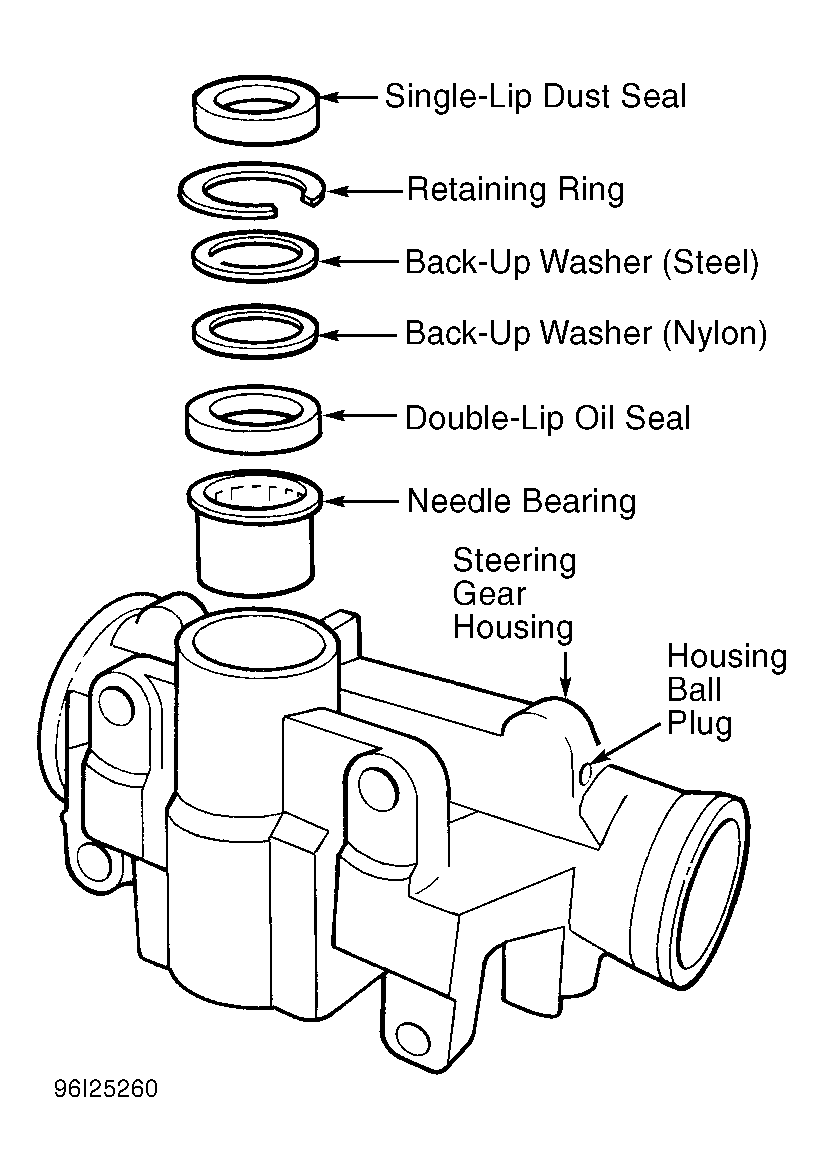

Fig 1: Exploded View Of Gear Housing Seals & Bearing

Courtesy of CHRYSLER CORP.
