Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Air Bag Control Module | Under center console, near base of parking brake lever. |
| Automatic Temperature Control Module | Left side of HVAC plenum. |
| Blower Power Module | On HVAC plenum. |
| Body Control Module | Behind lower left side of dash. |
| Controller Anti-Lock Brake (CAB) | Attached to Hydraulic Control Unit (HCU). See Figure. |
| Daytime Running Lamp (DRL) Module | On right inner fender panel, below power distribution center. See Figure. |
| Driver Door Module | In left front door. |
| Fuel Pump Module | In fuel tank. |
| Graphic Display Module | Rear of vehicle information center. |

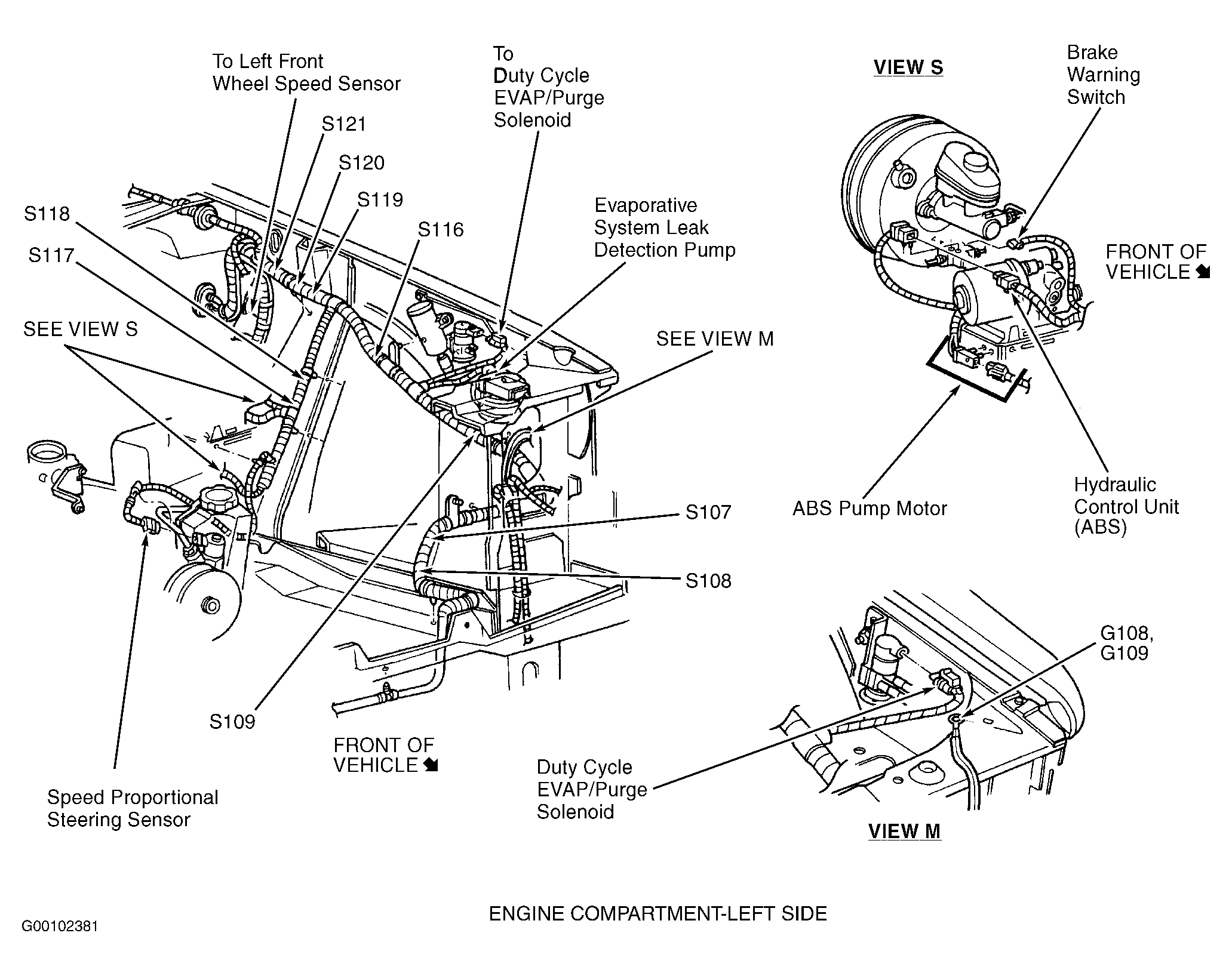

| Hydraulic Control Unit (ABS) | In left side of engine compartment, below brake master cylinder. See Figure. |
| Lamp Outage Module | On left rear of vehicle, near bottom of liftgate opening. |
| Memory Seat Module | Under driver's seat. |
| Passenger Door Module | In right front door. |

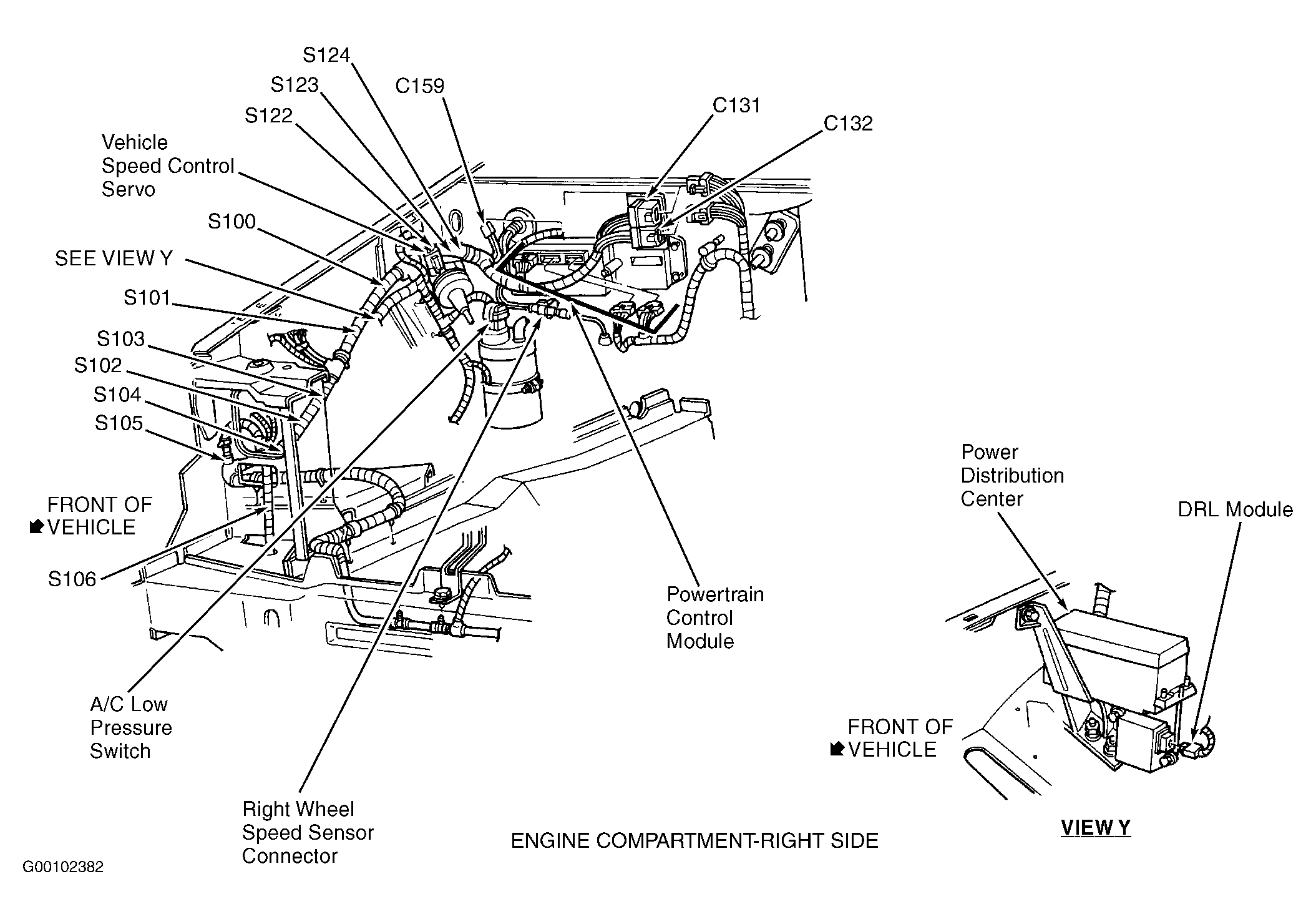

| Powertrain Control Module (PCM) | On right rear of engine compartment, near A/C receiver-drier. See Figure. |
| Seat Heater Control Module (Driver's) | Under driver's seat. |
| Seat Heater Control Module (Passenger's) | Under passenger's seat. |
| Speed Proportional Steering Control Module | Top left corner of dash panel. |
| Sun Roof Control Module | Rear of sun roof. |
