Connector Identification

Fig 1: 16-Pin Data Link Connector (DLC)
G96G25243Courtesy of CHRYSLER CORP.

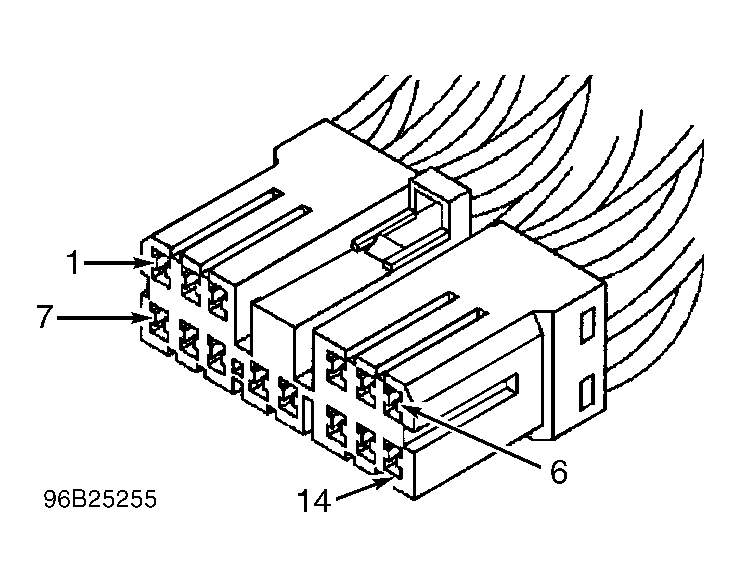

Fig 2: Speed Proportional Steering (SPS) Control Module Connector Terminals
G96B25255Courtesy of CHRYSLER CORP.
SPS CONTROL MODULE HARNESS CONNECTOR

Terminal No. Wire Color Circuit Function
1 Lt. Green SPS Solenoid Control Low
2 Lt. Blue SPS Solenoid Control High
3 Black/Lt. Green SWSS Ground
5 Black/Yellow SWSS 5-Volt Supply
6 White/Orange VSS Signal
8 Yellow/Dk. Green Fused Ignition Switch Output
9 Violet SWSS Signal "B"
10 Black Ground
12 Black/Red SCI Transmit/ISO 9141K
13 White SCI Receive
14 Pink/White SWSS Signal "A"

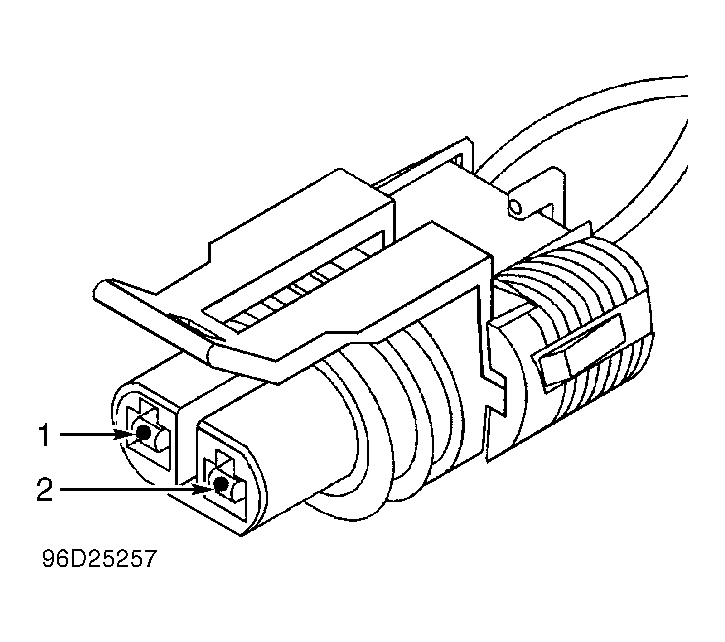

Fig 3: Speed Proportional Steering (SPS) Control Solenoid Connector Terminals
G96D25257Courtesy of CHRYSLER CORP.
SPS SOLENOID HARNESS CONNECTOR

Terminal No. Wire Color Circuit Function
1 Lt. Blue SPS Solenoid Control High
2 Lt. Green SPS Solenoid Control Low

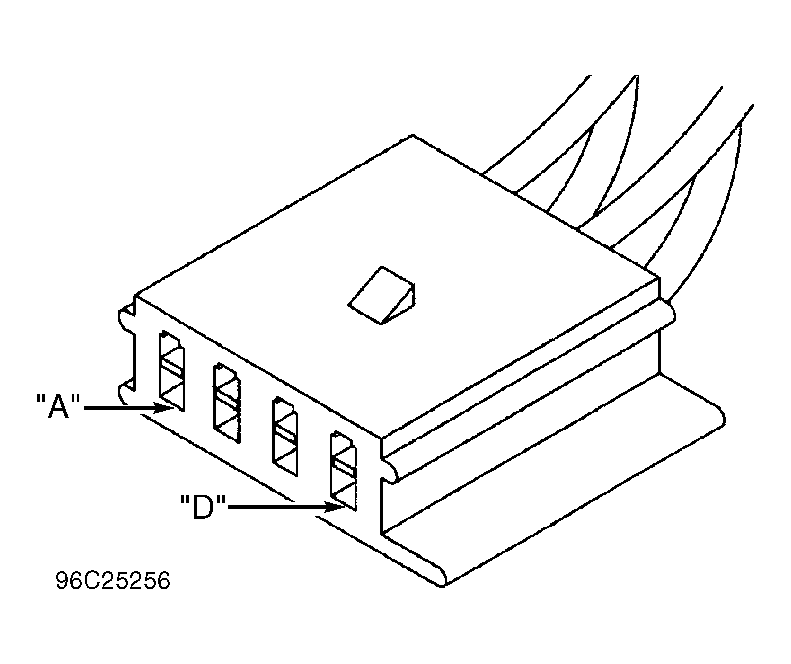

Fig 4: Steering Wheel Speed Sensor (SWSS) Harness Terminals
G96C25256Courtesy of CHRYSLER CORP.
SWSS HARNESS CONNECTOR

Terminal Wire Color Circuit Function
"A" Black/Yellow SWSS 5-Volt Supply
"B" Black/Lt. Green SWSS Ground
"C" Pink/White SWSS Signal "A"
"D" Violet SWSS Signal "B"
