Wheel Alignment Specifications & Procedures: Adjustments: Caster
NOTE:
On 4WD vehicles, shim adjustment will change caster angle and front drive shaft angle. If both angles cannot be adjusted to specification, drive shaft angle has priority and should be adjusted for its specified angle. See the DRIVE AXLE - FRONT
article in the DRIVE AXLES section.

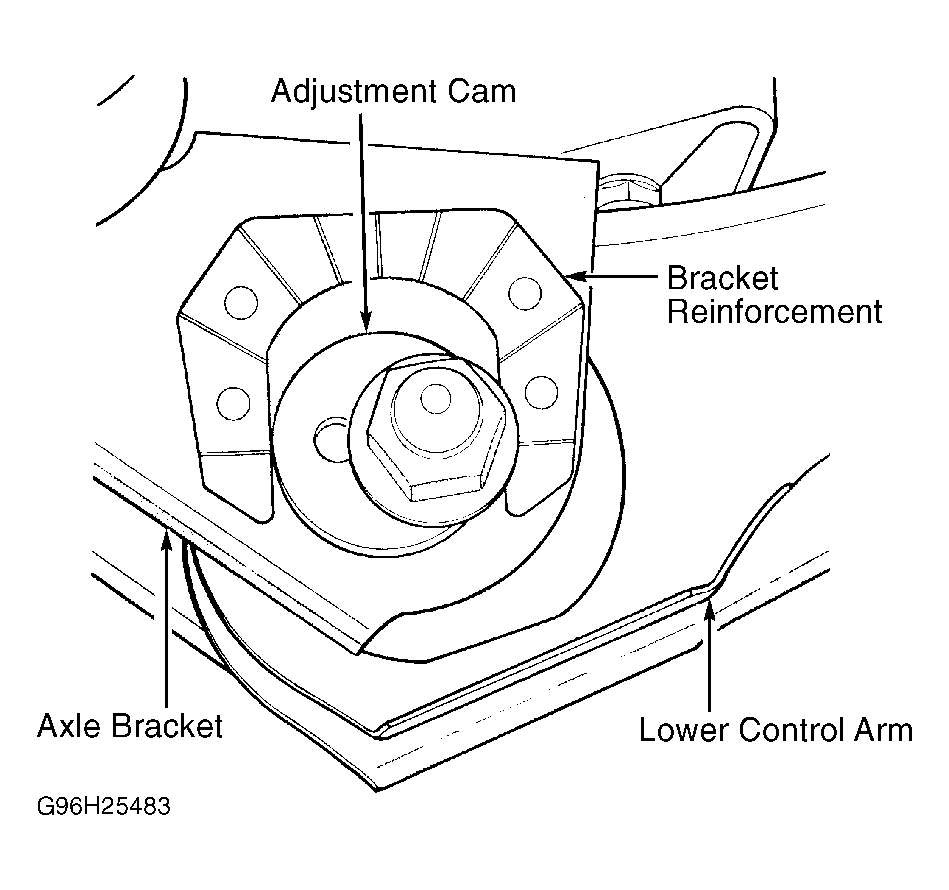

Check caster angle. See ALIGNMENT SPECIFICATIONS . If caster is not to specification, adjust by loosening and rotating adjustment cams on lower control arms. See Fig 1 .
