Front Window Motor: Installation

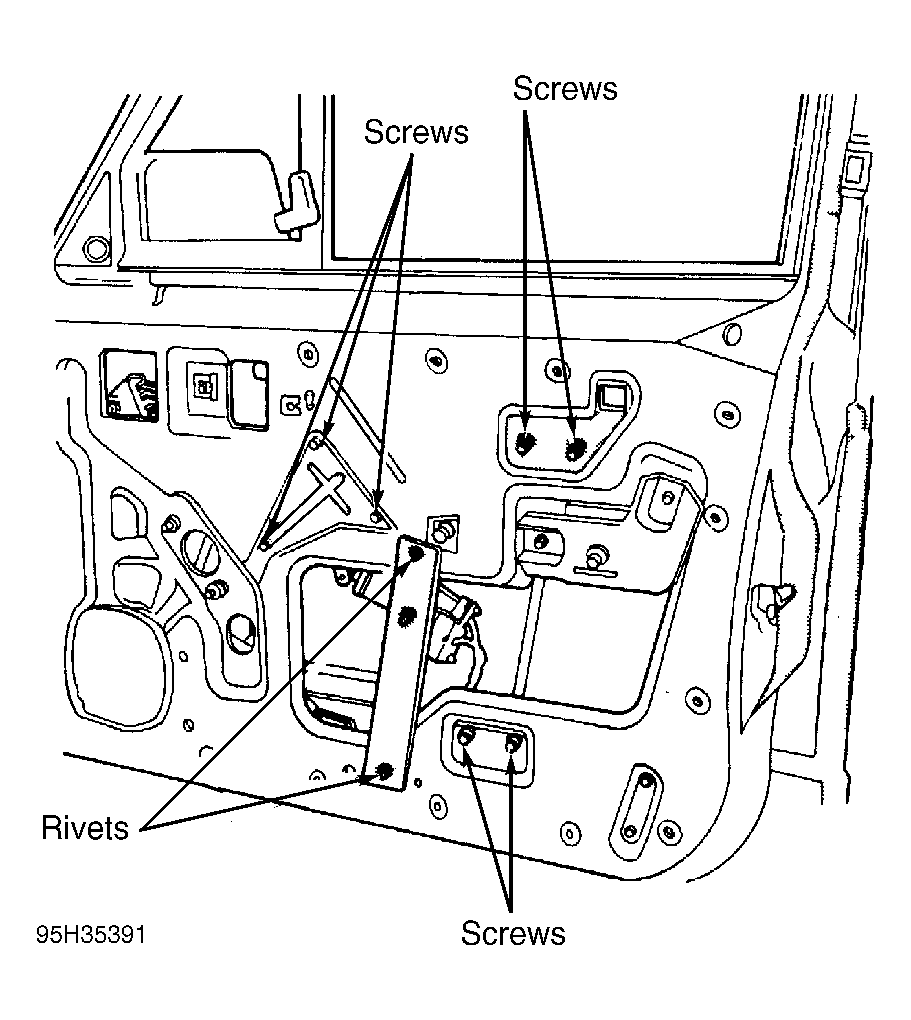

- Place window regulator inside door and slide 2 loose screws into slotted holes in door inner panel. Install remaining regulator mounting screws and tighten.
- Remove tape securing glass to upper door window frame and lower glass. Move glass as far rearward into channel as possible and push down. Tighten 2 window regulator screws.
- Attach door glass by sliding 2 nuts into slotted holes on regulator lift plate and tighten nuts. Connect chassis wiring to power window motor. Using adhesive/sealant, install watershield to door inner panel. To complete installation, reverse remaining removal procedure.
Courtesy of CHRYSLER CORP.
