Rear Wiper Switch Test

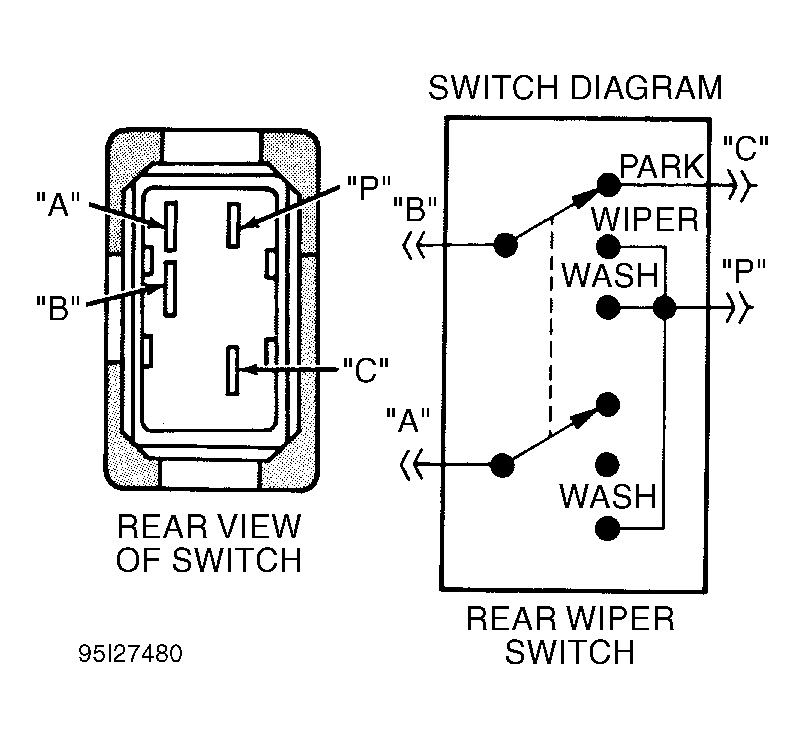

Using an ohmmeter, test continuity as shown in LIFTGATE WIPER/WASHER SWITCH CONTINUITY . See Fig 1 . If switch fails any test, replace switch.
LIFTGATE WIPER WASHER SWITCH CONTINUITY
| Switch Position | Continuity Between Pins |
|---|---|
| Off | None |
| Wipe | "P" & "B" |
| Wash | "P" & "B", "P" & "A" |
