Power Seat Switch

To check the power seat switch, remove the switch from its mounting position. Using an ohmmeter, determine if switch continuity is correct. See Fig 1 . If switch is not okay, replace faulty switch assembly. If switch is okay, check power seat motors. See POWER SEAT ADJUSTER/MOTORS  .

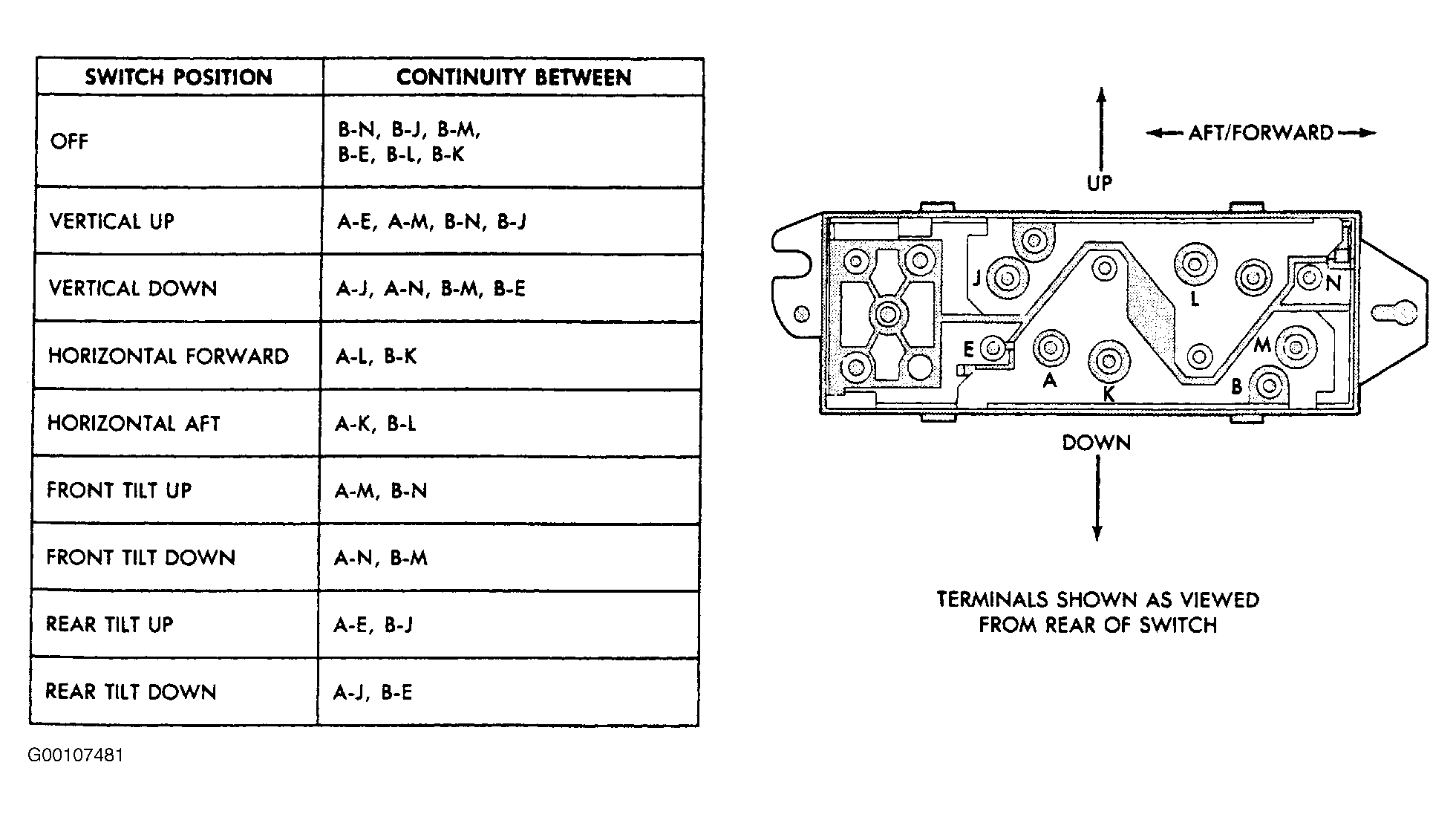

Fig 1: Power Seat Switch Continuity Check

Courtesy of CHRYSLER CORP.
