Home >> Jeep >> 1995 >> Cherokee Country, RWD, Standard >> Repair and Diagnosis >> Body & Frame >> Power Windows >> Component Tests >> Power Window Switch Tests

Power Window Switch Tests

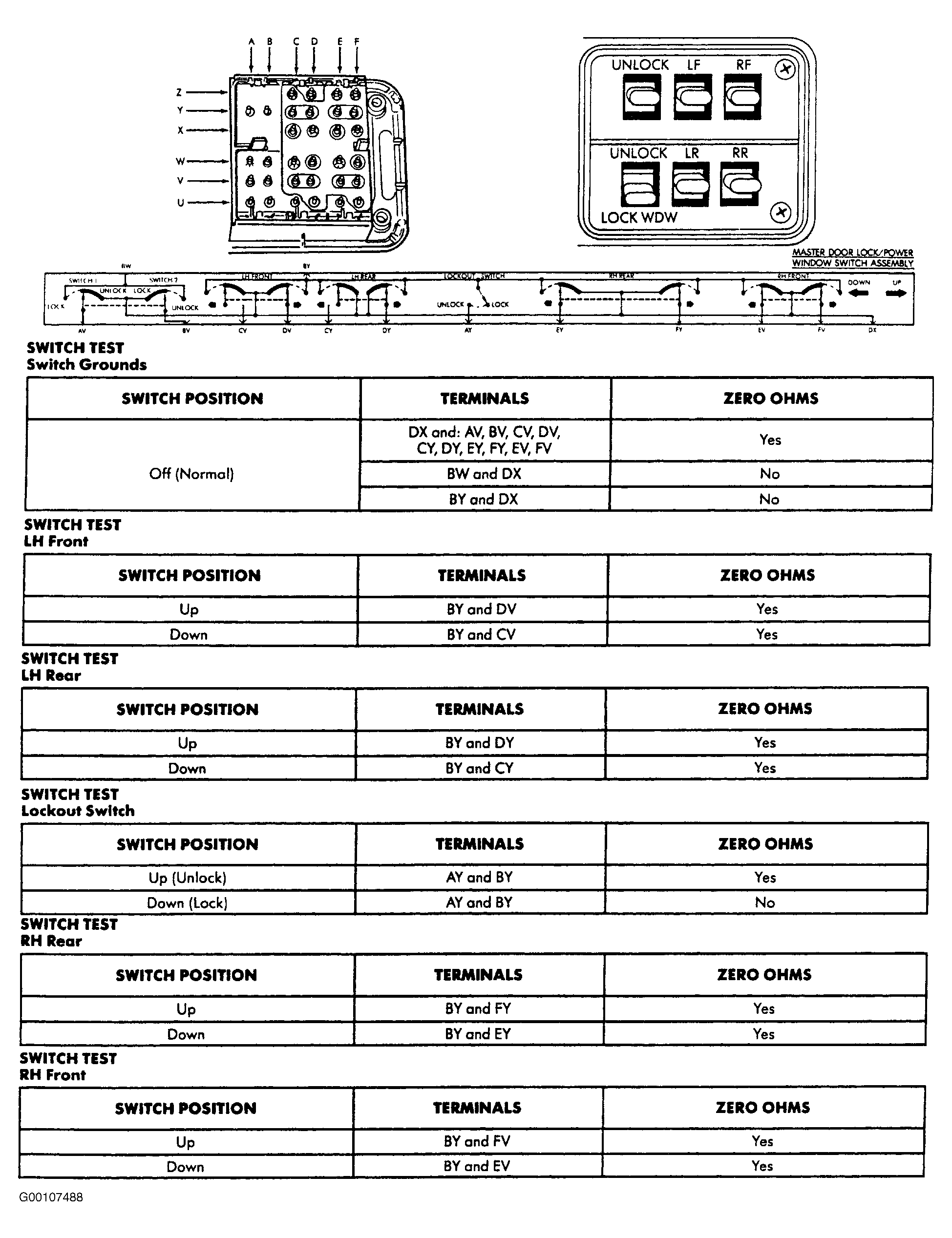

Fig 1: Driver's Power Window Switch Tests - 4-Door
G00107488Courtesy of CHRYSLER CORP.

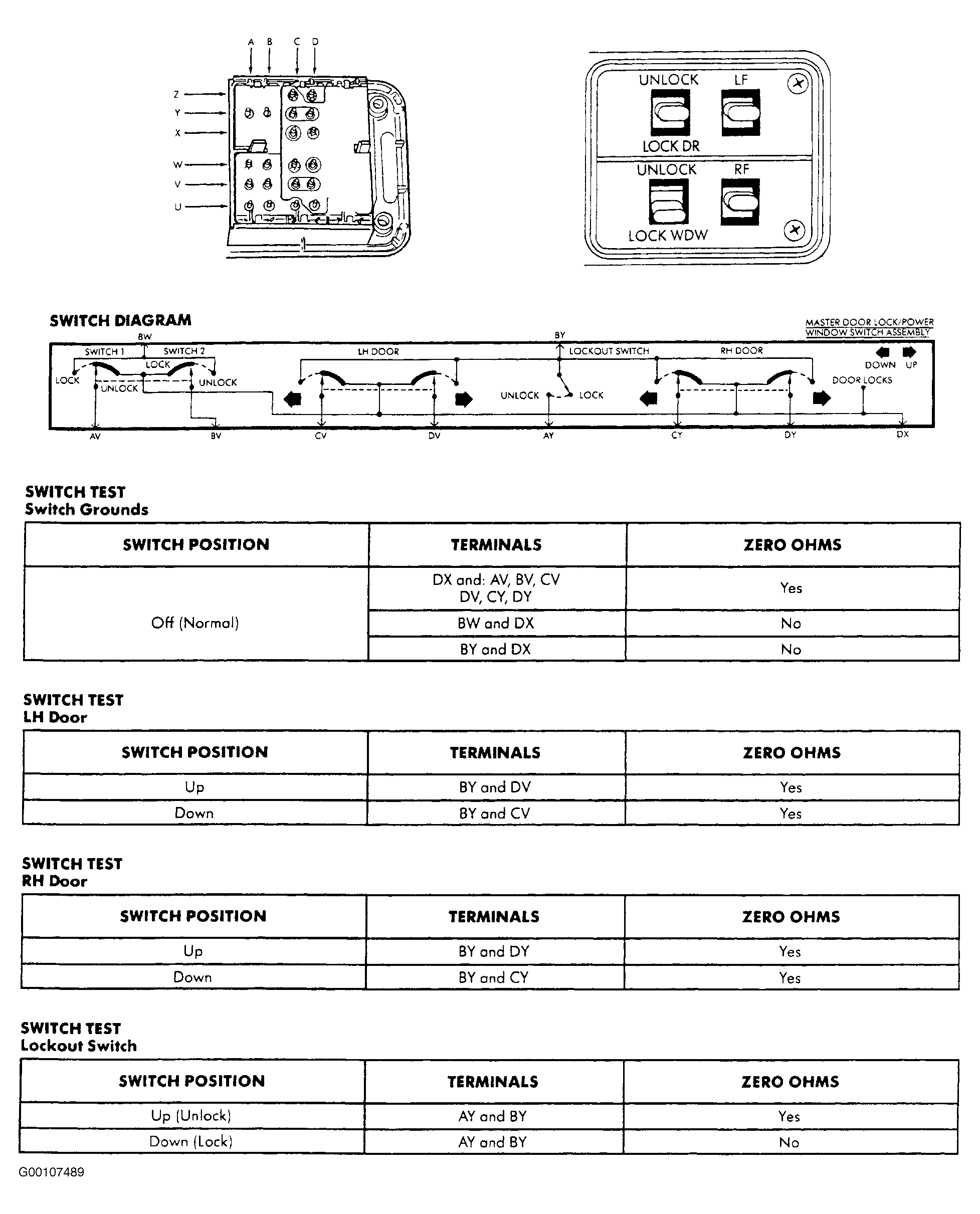

Fig 2: Driver's Power Window Switch Test - 2-Door
G00107489Courtesy of CHRYSLER CORP.

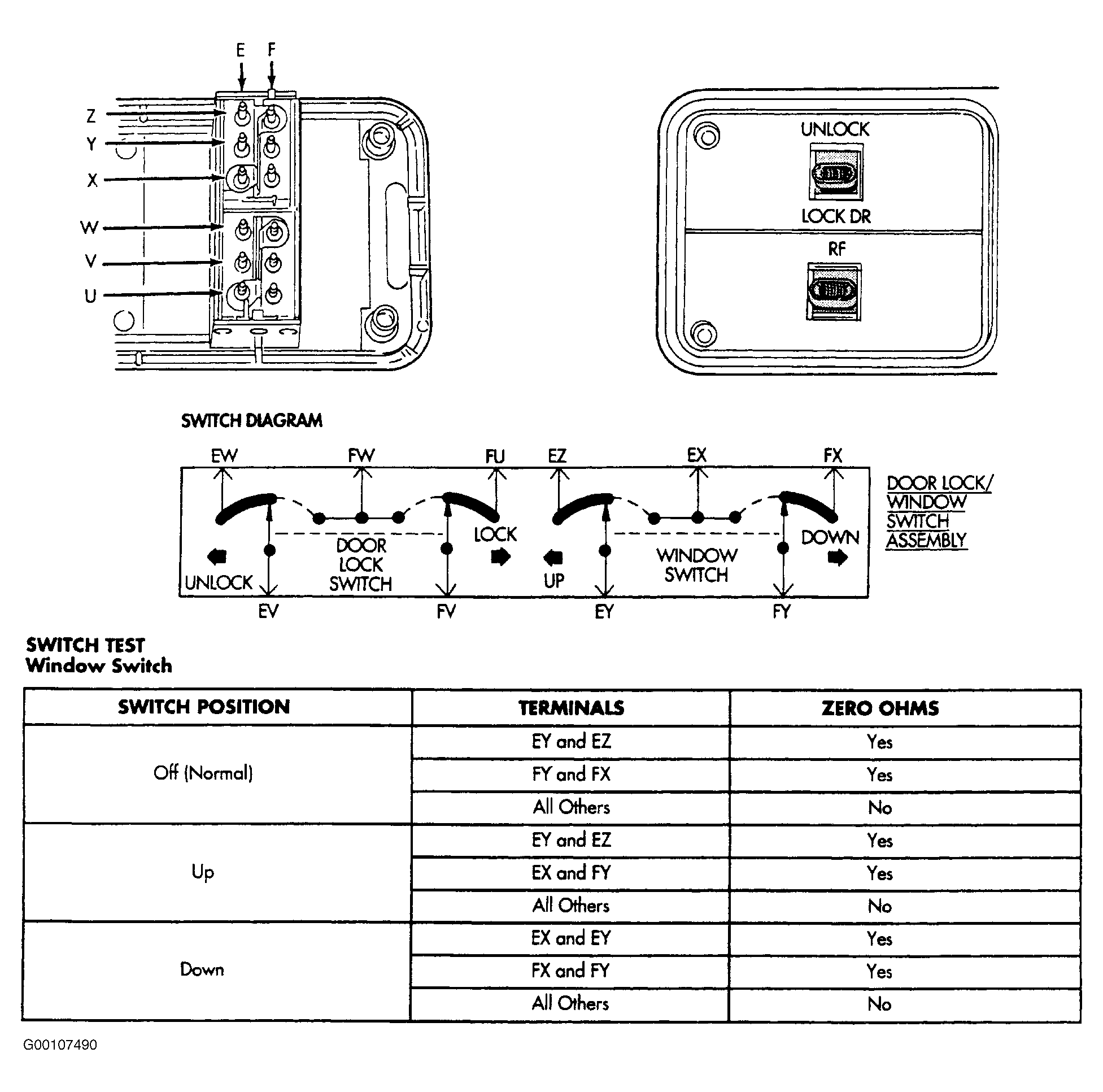

Fig 3: Passenger's Power Window Switch Test
G00107490Courtesy of CHRYSLER CORP.
