Housing Assembly: Reassembly

  1. Install sector shaft bearing in steering housing using Handle (8015) and Adapter (7614). See Fig 1 . Position bearing so identification marks face away from adapter. Press in bearing until adapter bottoms against housing. DO NOT  bottom bearing in housing.
  2. Install lower oil seal, steel washer and upper oil seal on handle and adapter used to install bearing. See Fig 2 . Lips of both seals should face toward housing bore.
  3. Install steel washer and retaining ring in housing. Using handle and adapter, drive in seals until retaining ring seats in groove. Ensure hose connector seat bores are clean.

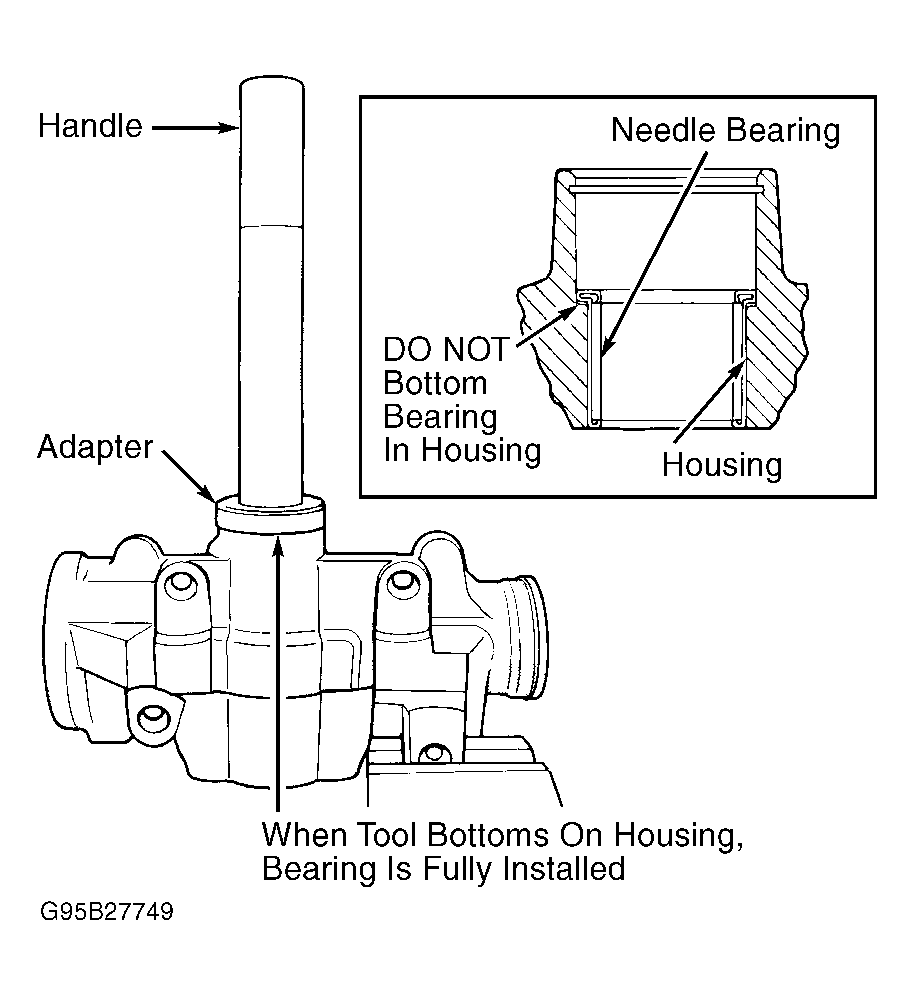

Fig 1: Installing Sector Shaft Bearing
G95B27749Courtesy of CHRYSLER CORP.

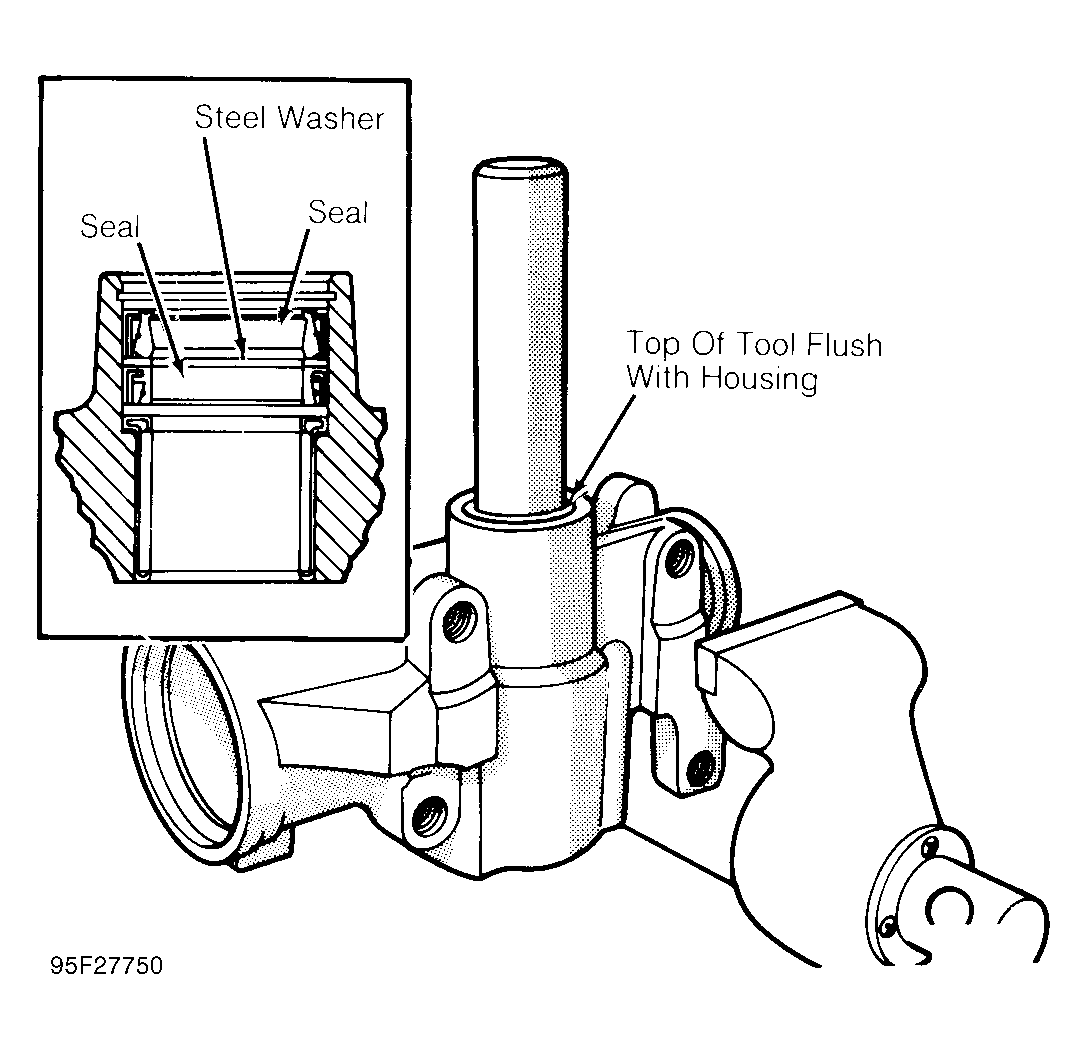

Fig 2: Installing Sector Shaft Seals
G95F27750Courtesy of CHRYSLER CORP.
