Air Bag Disabling

BEFORE servicing ANY steering column or air bag component, disconnect and shield negative (ground) battery cable. Wait 2 MINUTES to allow air bag system capacitor to deplete its residual charge. Proceed with steering column service.

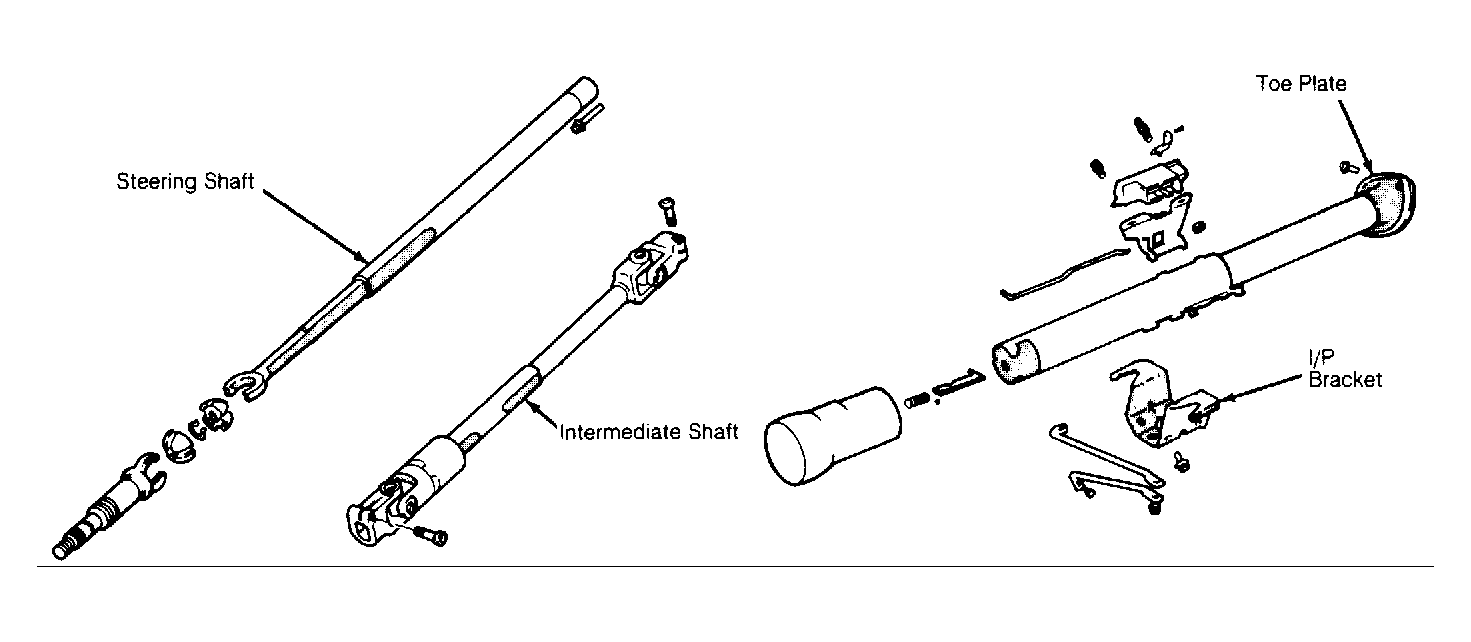

Fig 1: Exploded View Of Typical Steering Column & Intermediate Shaft (Except Grand Cherokee)
G90G04355Courtesy of CHRYSLER CORP.

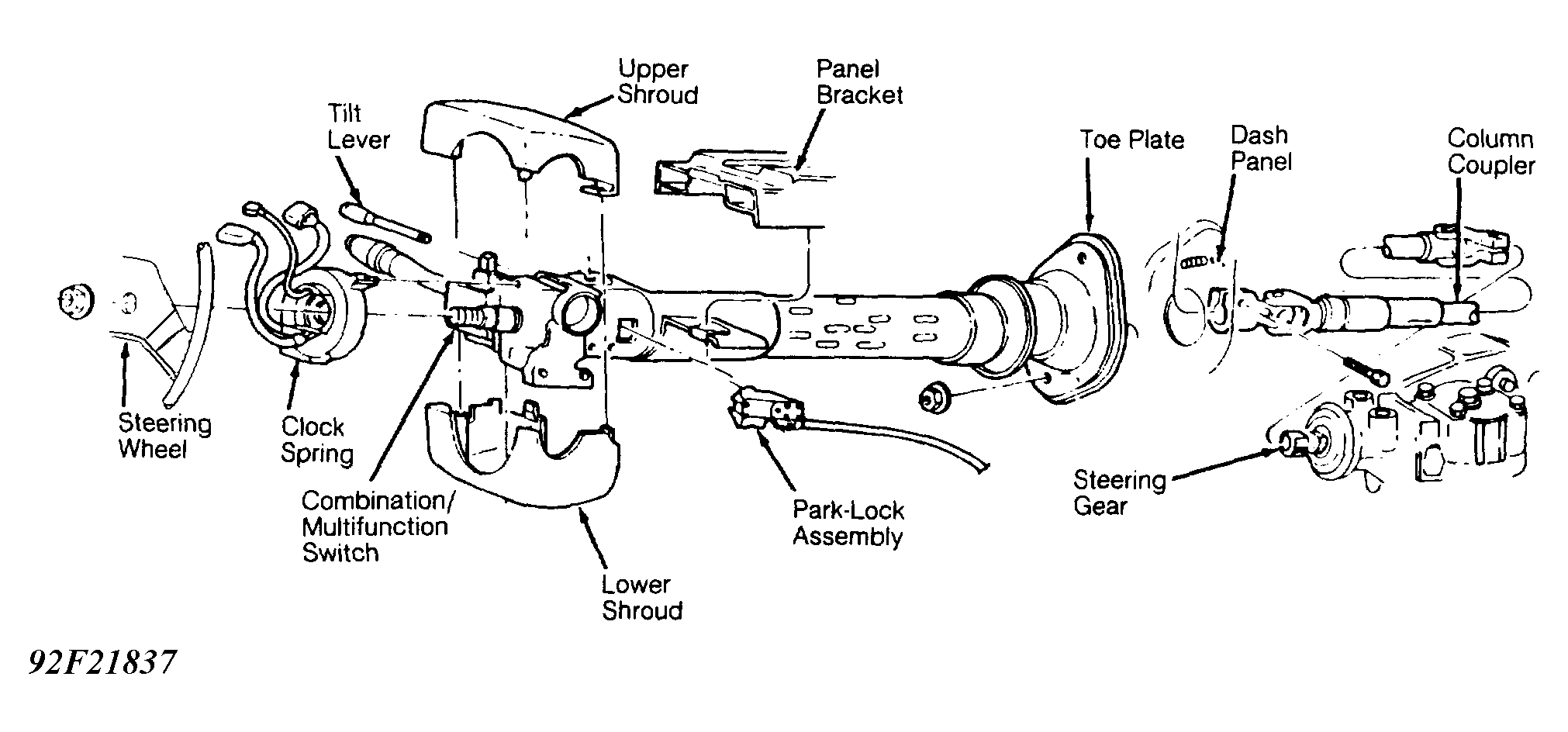

Fig 2: Exploded View Of Steering Column (Grand Cherokee)
G92F21837Courtesy of CHRYSLER CORP.
