Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

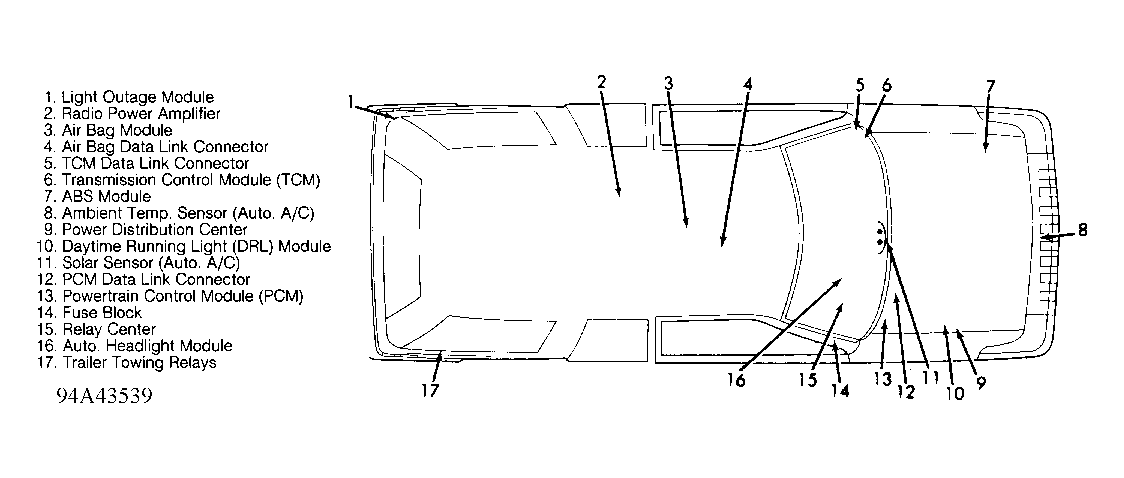

| ABS Module | In engine compartment, on left inner fender panel. See Figure . |
| Air Bag Module | Under center console, near base of parking brake lever. See Figure . |
| Auto. Headlight Module | In glove compartment, under bottom panel. See Figure . |
| Chime Module | On bracket, under right side of dash. |
| Daytime Running Lights (DRL) Module | On right inner fender panel, below power distribution center. See Figure . |
| Intermittent Wiper Module | Behind left side of dash, on left kick panel. |
| Keyless Entry Module | In overhead console or in dome light housing. |
| Light Outage Module | On left rear of vehicle, behind taillight assembly. See Figure . |
| Powertrain Control Module (PCM) | On right rear of engine compartment, near A/C receiver-drier. See Figure . |
| Security Alarm Module | In glove compartment, under bottom panel. |
| Transmission Ctrl Module (TCM) | Behind left side of dash. See Figure . |
