Keyless Entry Module (Without Overhead Console)

1. Remove screws attaching receiver housing to headlining. See Fig 1 .
2. Pull housing toward rear of vehicle to disengage clip.
3. Disconnect receiver harness connector.
4. Remove circuit board from housing.
5. To install, reverse removal procedure.

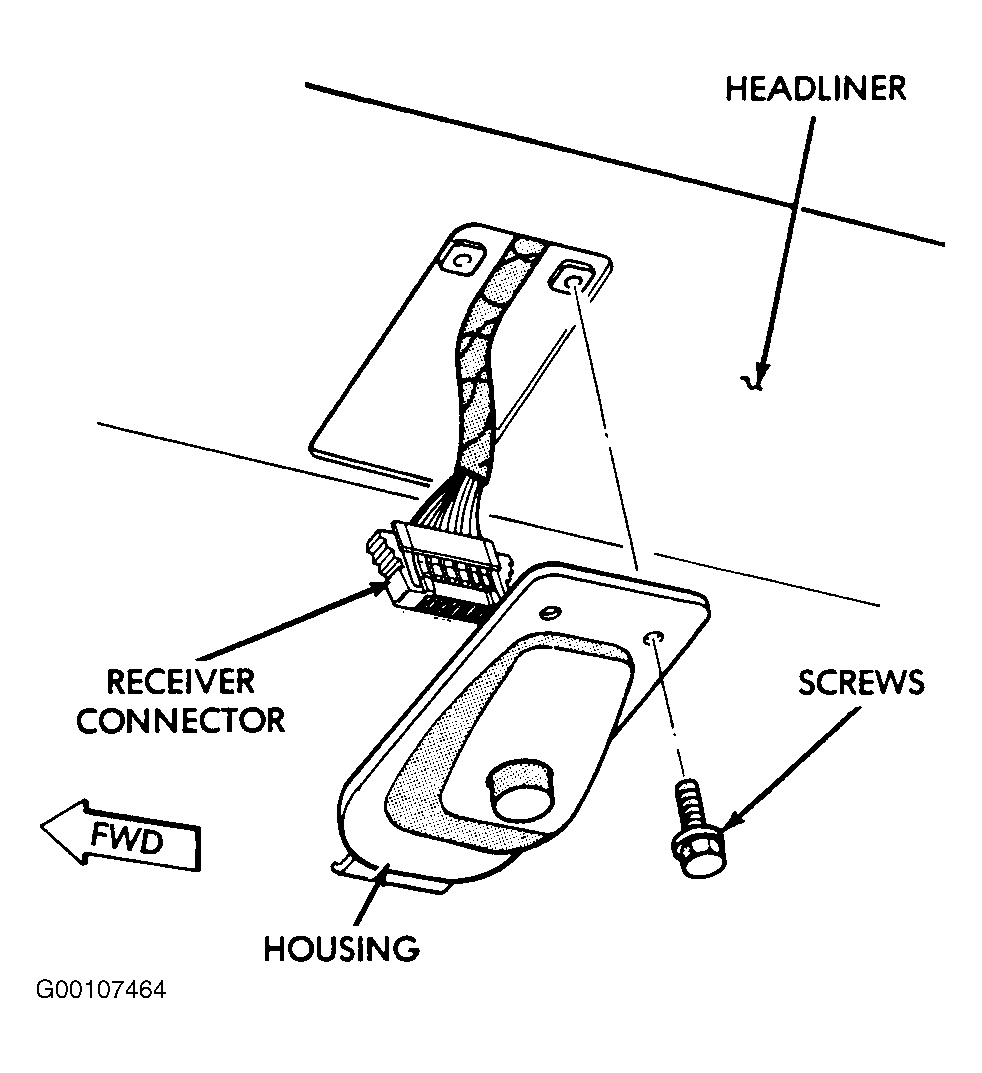

Fig 1: Removing Keyless Entry Housing

Courtesy of CHRYSLER CORP.
