Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Fuse Block | Under Left Side Of Dash |

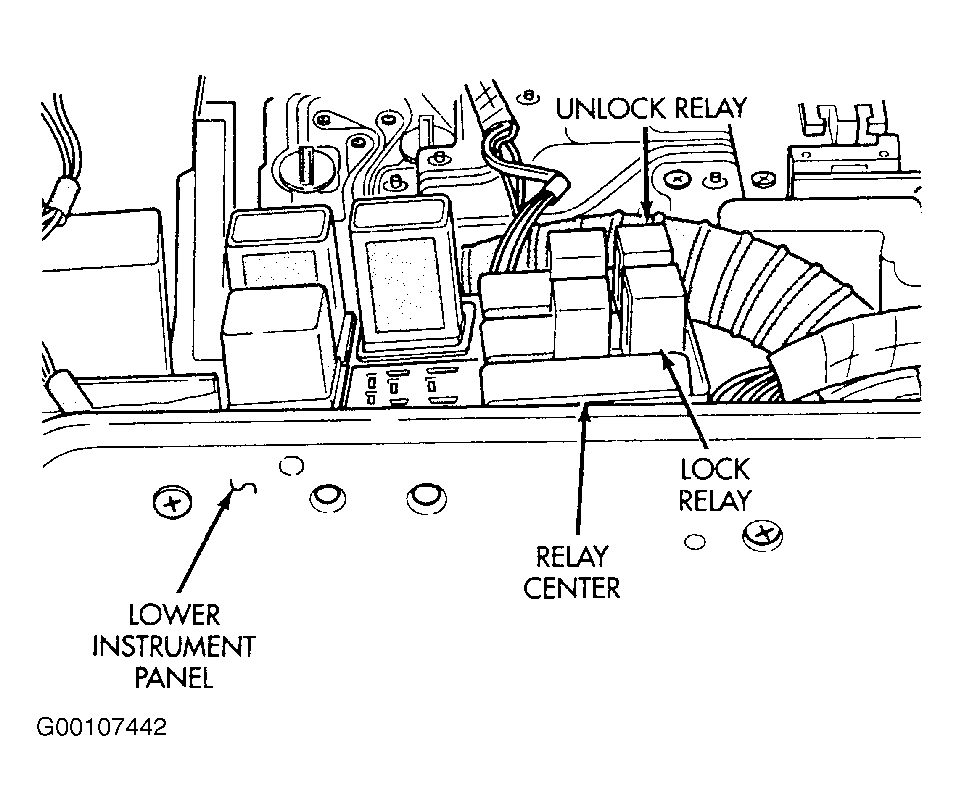

| Door Lock Relay | In Relay Center. See Fig 1 . |
| Door Unlock Relay | In Relay Center. See Fig 1 . |

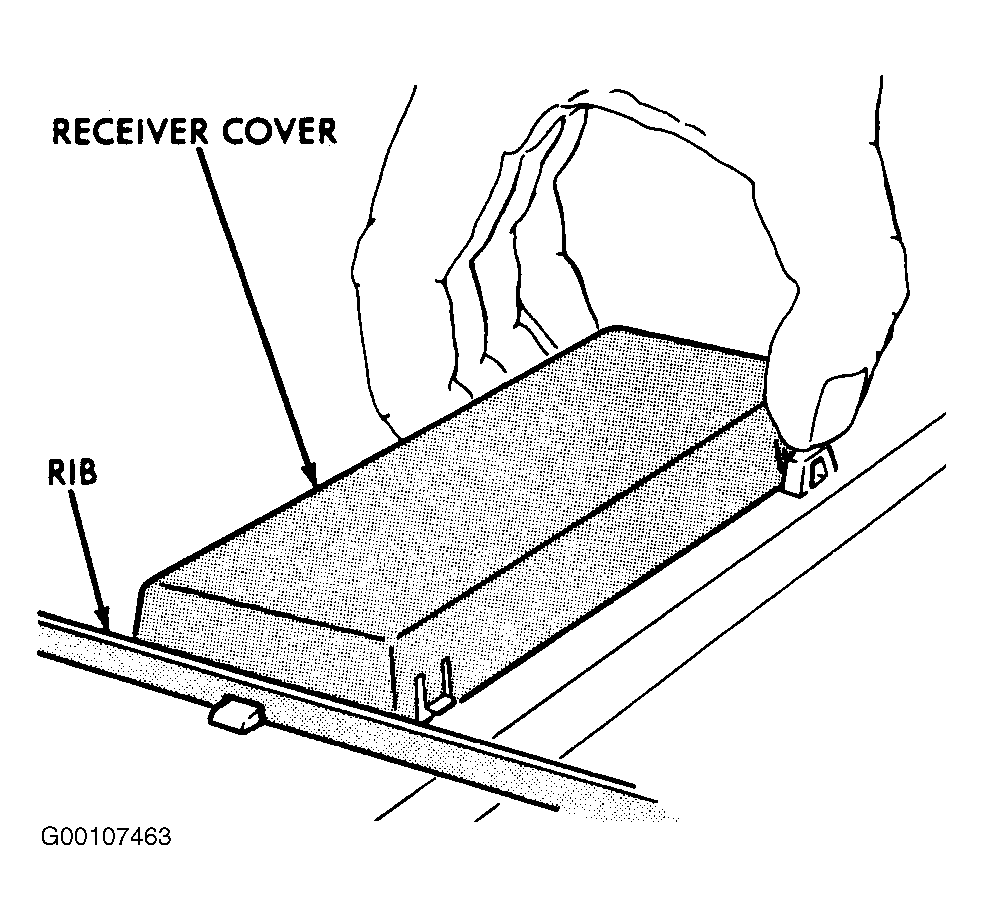

| Keyless Entry Module (Without Overhead Console) | Under Cover At Front Of Headliner. See Figure . |
| Keyless Entry Module (With Overhead Console) | In Overhead Console. See Figure . |
| Relay Center | On Lower Dash Trim Panel, Right Of Steering Column. See Fig 1 . |
