Wiring Diagrams

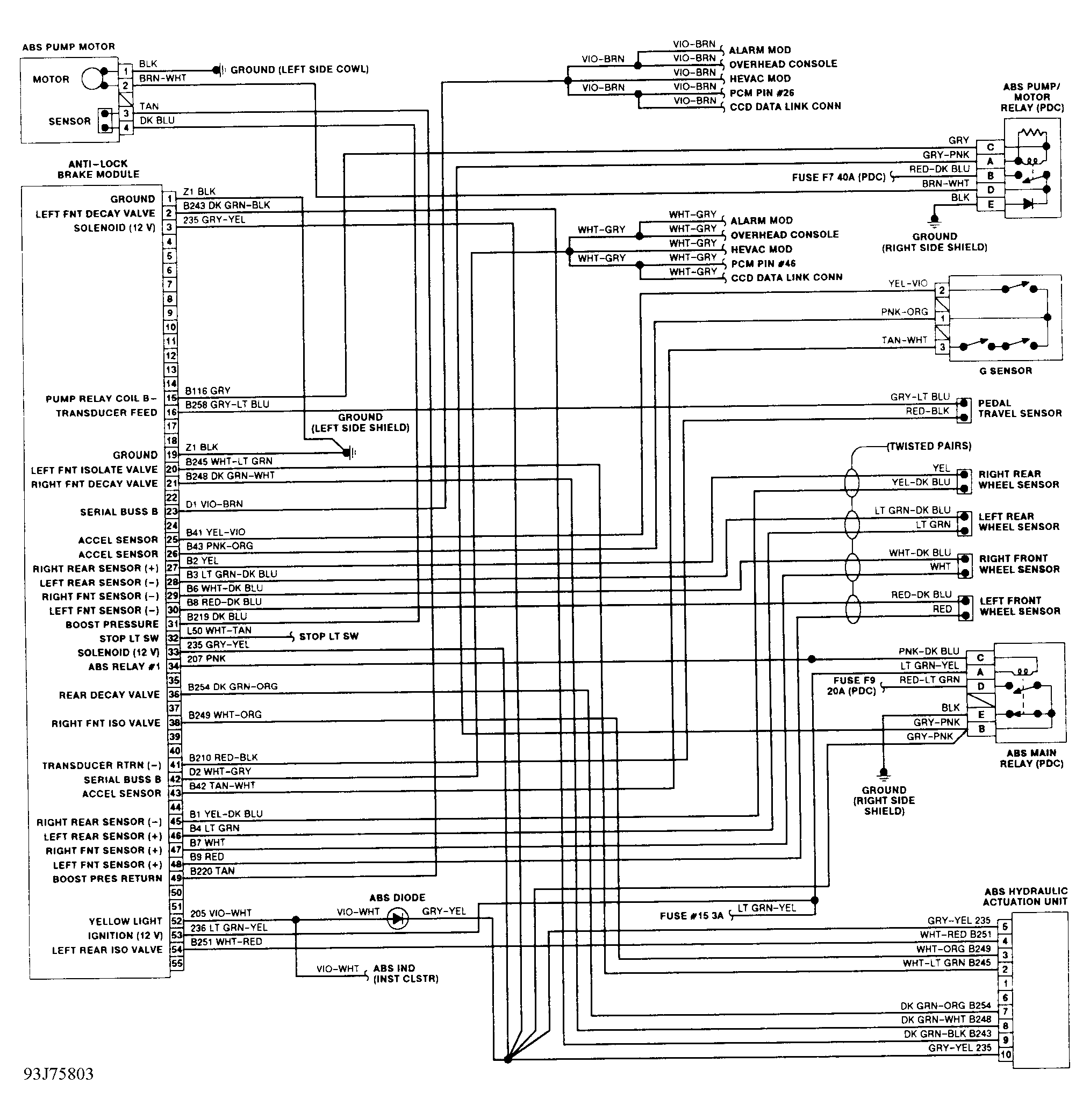

Fig 1: ABS Wiring Diagram (Cherokee)

G93I75802

Fig 2: ABS Wiring Diagram (Grand Cherokee & Grand Wagoneer)

G93J75803

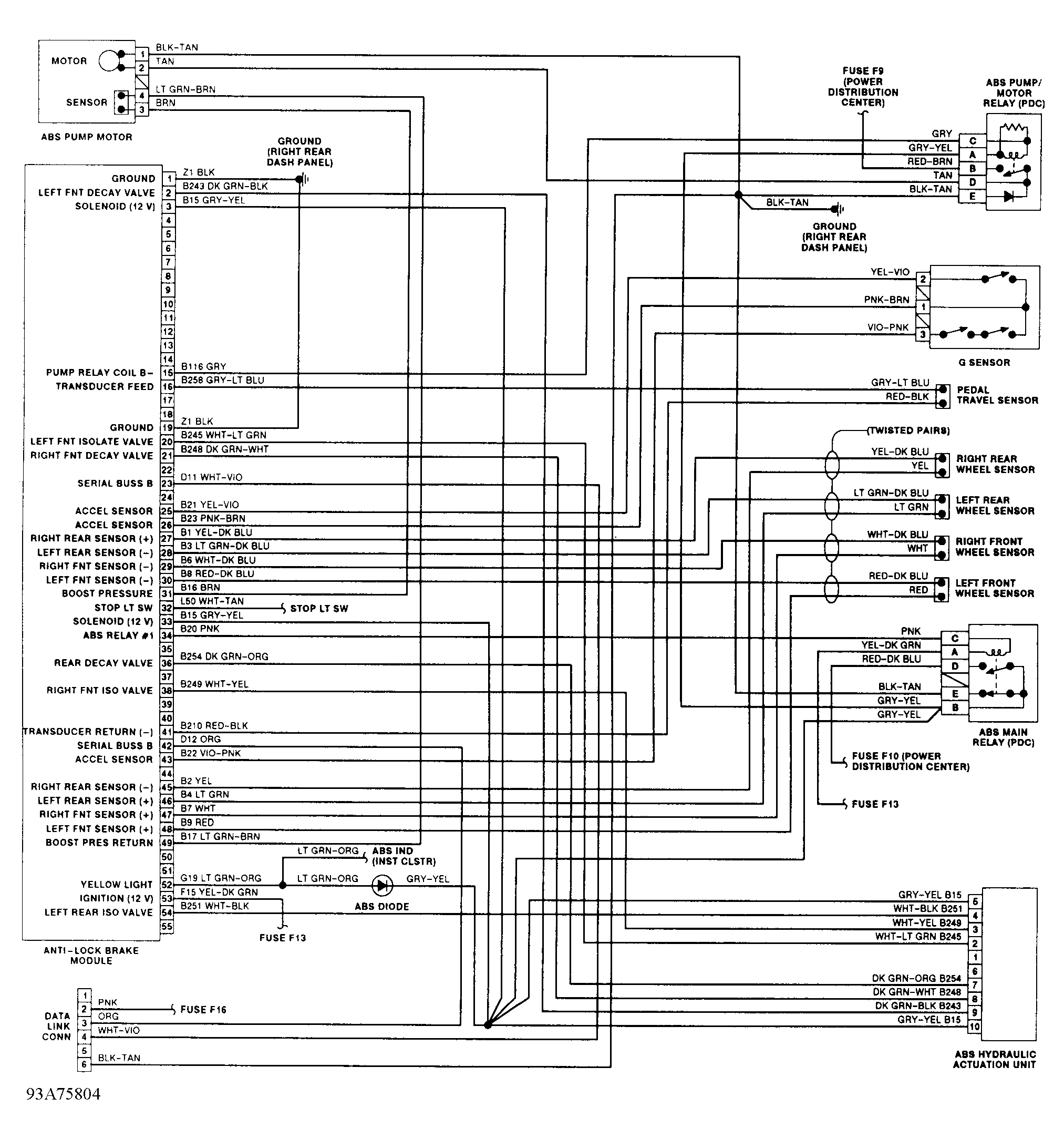

Fig 3: ABS Wiring Diagram (Wrangler)

G93A75804
