Circuit Protection Devices

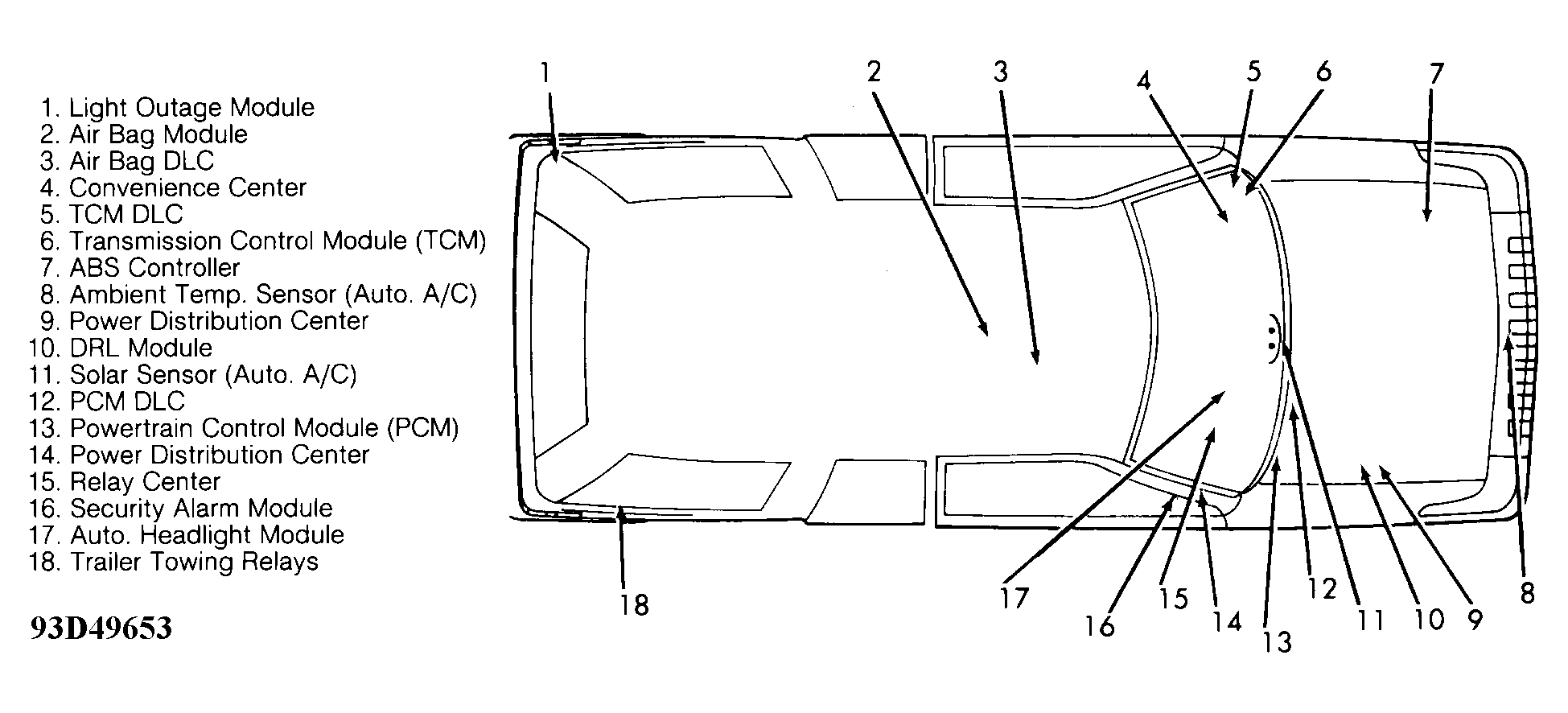

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Convenience Center Under left side of dash. See Figure .
Power Distribution Center On right inner fender panel, behind battery. See Figure .
Relay Center In glove compartment, under bottom panel. See Figure .
