Power Mirror Switch

Remove power mirror switch. See POWER MIRROR SWITCH in REMOVAL & INSTALLATION. Place selector switch in right or left mirror mode. Using ohmmeter, check for resistance at appropriate terminals when each operation switch is activated. See appropriate POWER MIRROR SWITCH CONTINUITY TEST. See Fig 1 -Fig 4 . If continuity is not as specified, power mirror switch must be replaced as an assembly.

POWER MIRROR SWITCH CONTINUITY TEST (CHEROKEE)

Switch Position		Pin Continuity
Left Mirror
Up		A & F, E & G
Down		A & G, E & F
Right		B & F, E & G
Left		B & G, E & F
Right Mirror
Up		D & F, E & G
Down		D & G, E & F
Right		C & F, E & G
Left		C & G, E & F

Fig 1: Identifying Power Mirror Switch (Cherokee)

Courtesy of CHRYSLER CORP.

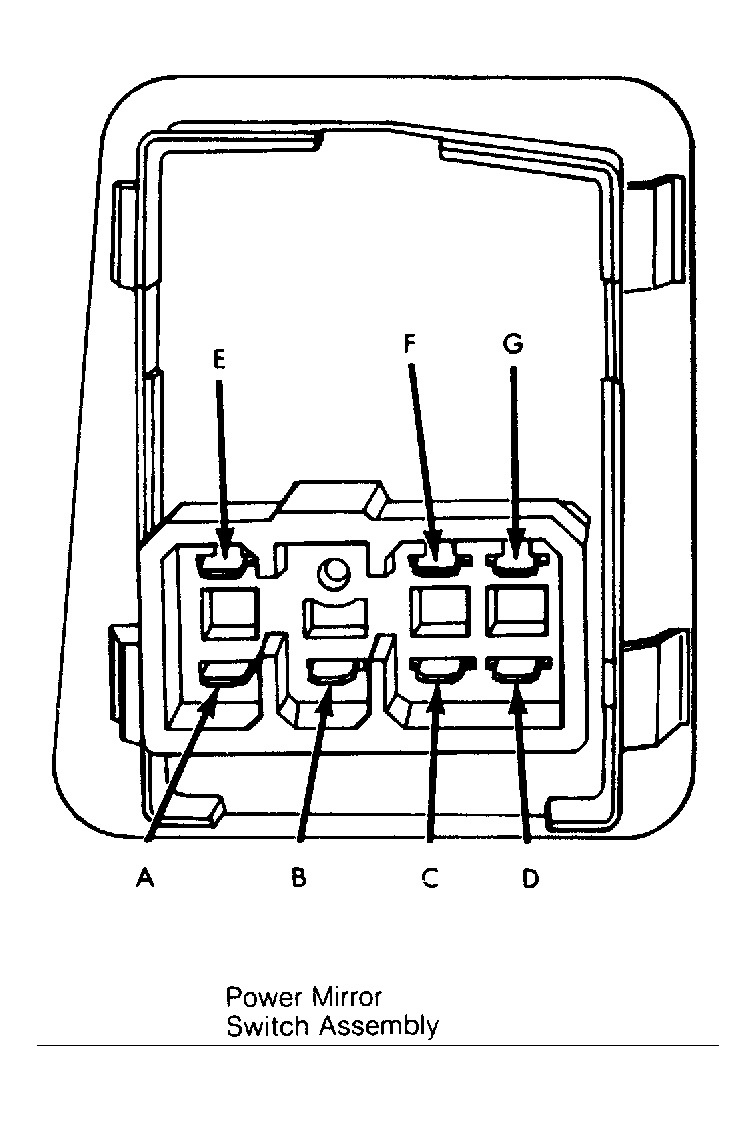

Fig 2: Identifying Power Mirror Switch Terminals (Cherokee)

Courtesy of CHRYSLER CORP.

POWER MIRROR SWITCH CONTINUITY TEST (EXCEPT CHEROKEE)

Switch Position		Pin Continuity
Left Mirror
Up		6 & 8; 5, 1 & 4
Down		6 & 1; 5 & 8
Right		6 & 1; 5 & 4
Left		6 & 4; 5, 1 & 8
Right Mirror
Up		6 & 7; 5, 1 & 3
Down		6 & 1; 5 & 7
Right		6 & 1; 5 & 3
Left		6 & 3; 5, 1 & 7

Fig 3: Identifying Power Mirror Switch (Except Cherokee)

Courtesy of CHRYSLER CORP.

Fig 4: Identifying Power Mirror Switch Terminals (Except Cherokee)

Courtesy of CHRYSLER CORP.
