Service Indicator & Warning Lights: Notes

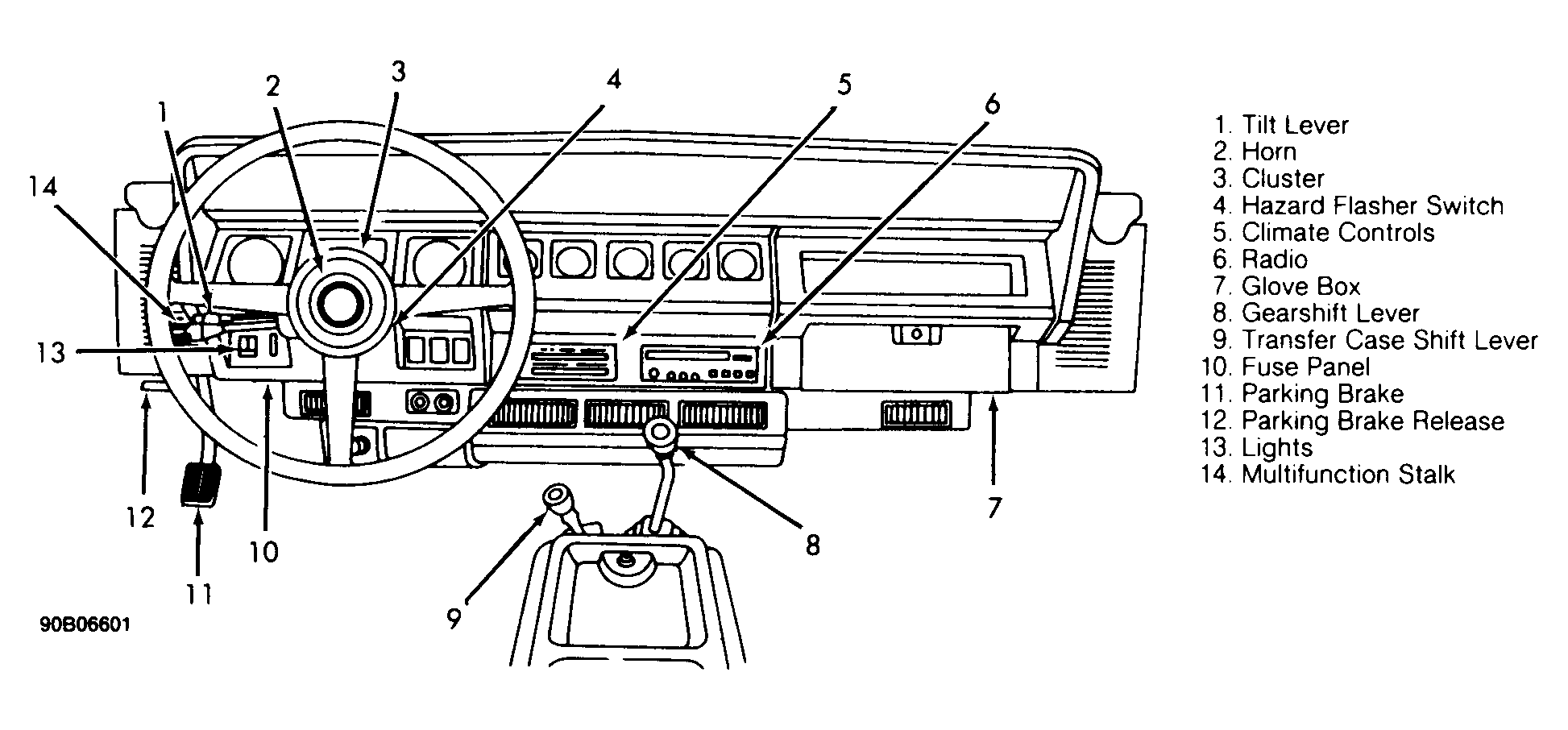

Fig 1: Instrument Panel & Interior Controls

G90B06601

Courtesy of CHRYSLER MOTORS.

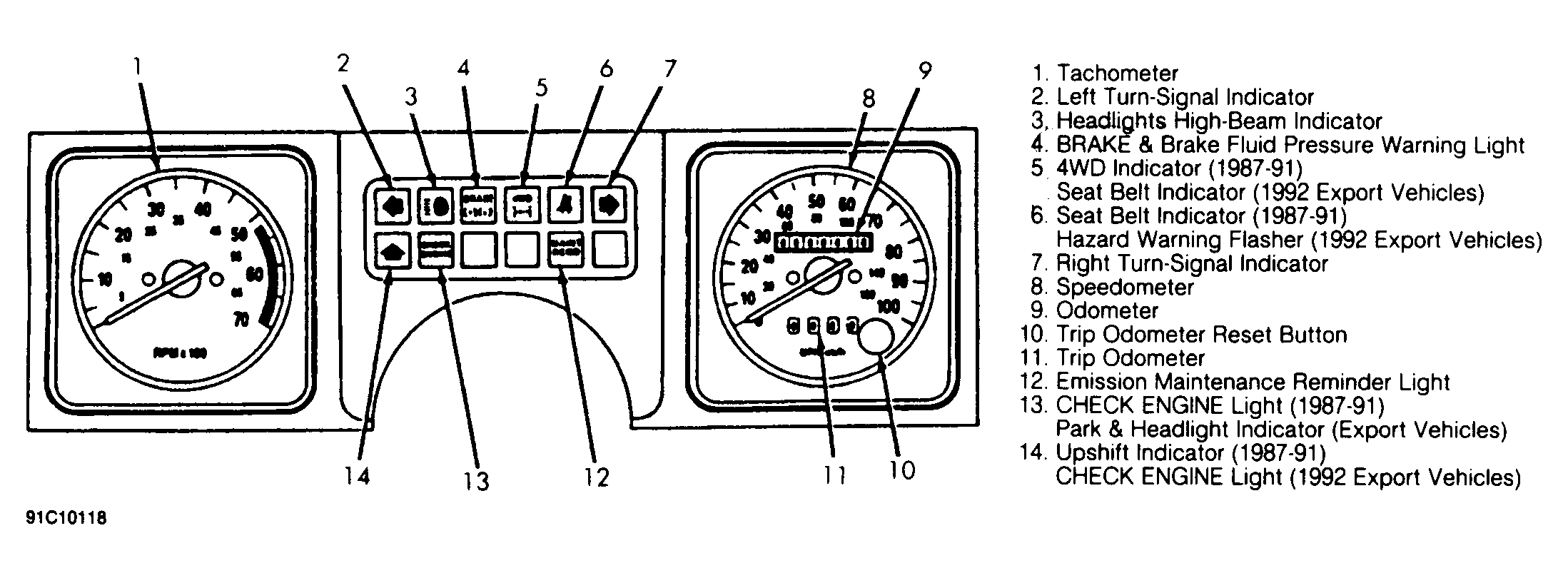

Fig 2: Dash Gauges & Warning Lights

G91C10118

Courtesy of CHRYSLER MOTORS.
