Connector Identification

Fig 1: Identifying Buzzer Module Connector Terminals (Pin Side)
G00110349Courtesy of CHRYSLER CORP.
Fig 2: Identifying Buzzer Module Terminals
G00110352Courtesy of CHRYSLER CORP.

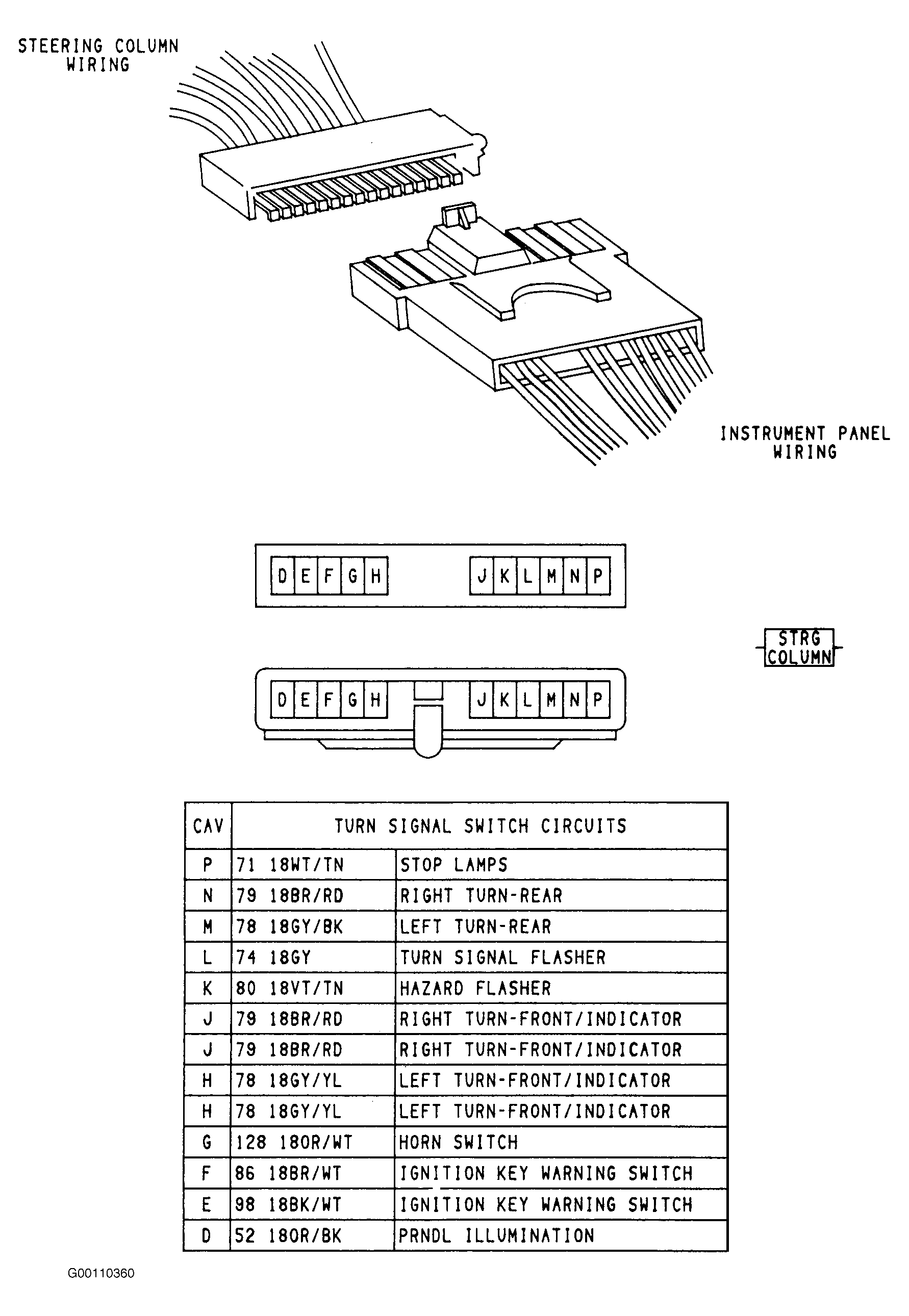

Fig 3: Identifying Steering Column Wiring Connector
G00110360Courtesy of CHRYSLER CORP.
