CHEROKEE & COMANCHE: Notes

NOTE: To locate instrument cluster connectors and terminals, see Fig 1 and Fig 2 .

NOTE: All figures are Courtesy of Chrysler Motors.

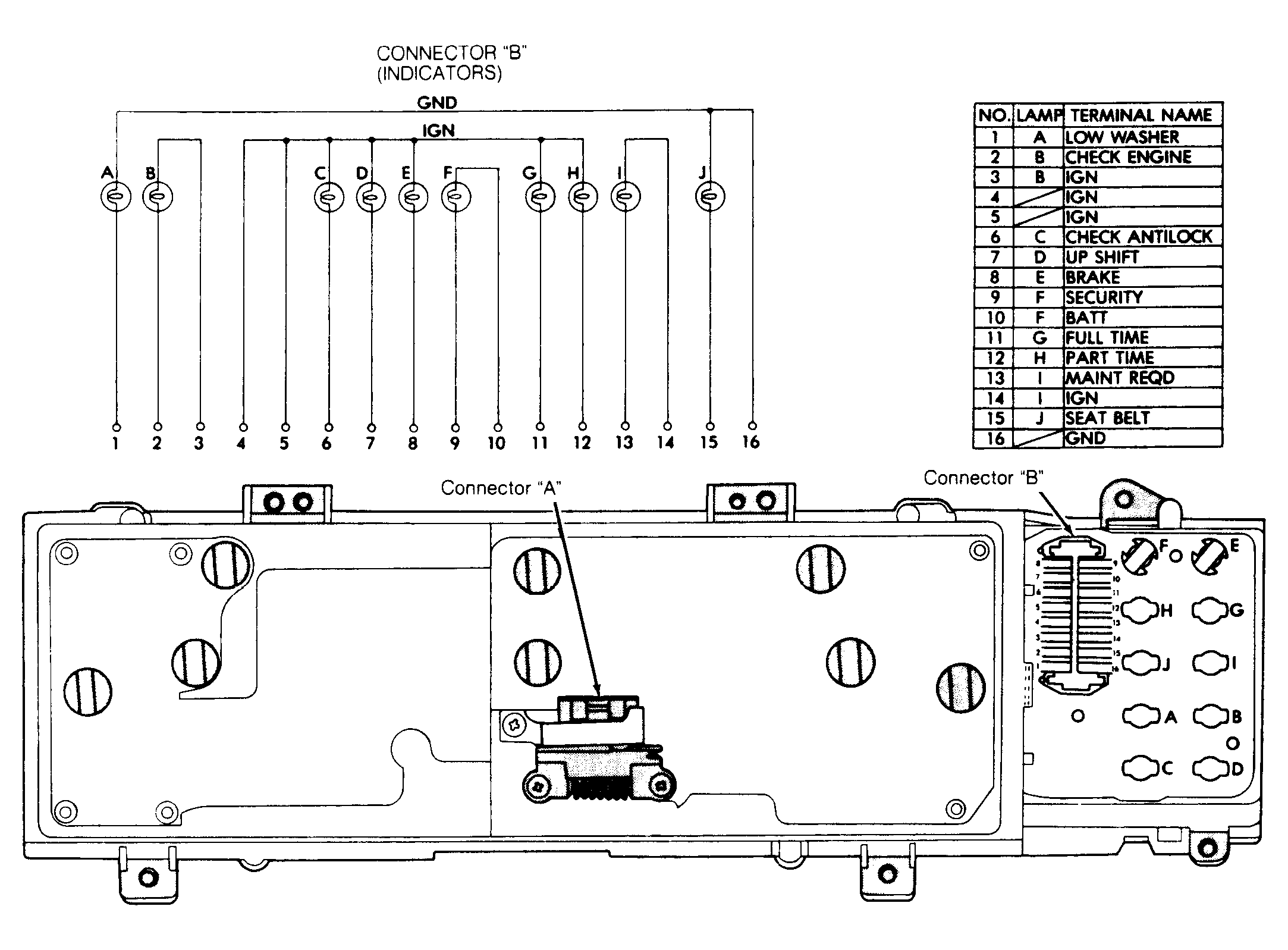

Fig 1: Locating Instrument Cluster Connectors & Id (Cherokee & Comanche)

Fig 2: Locating Instrument Cluster Connector Terminals & Id (Cherokee & Comanche)
