Power Seat Switch
Power Seat Switch

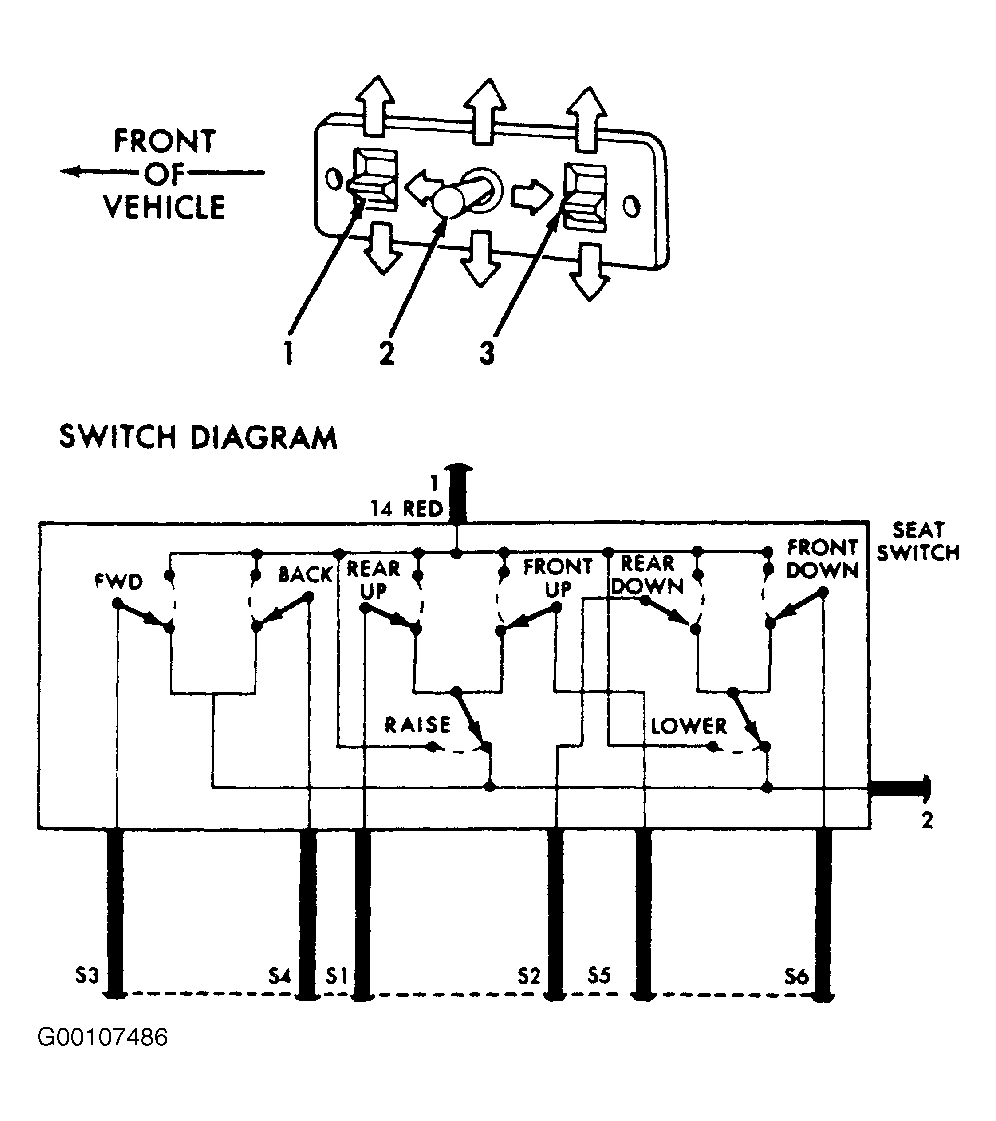

Fig 1: Identifying Power Seat Switch Operation
Courtesy of CHRYSLER CORP.

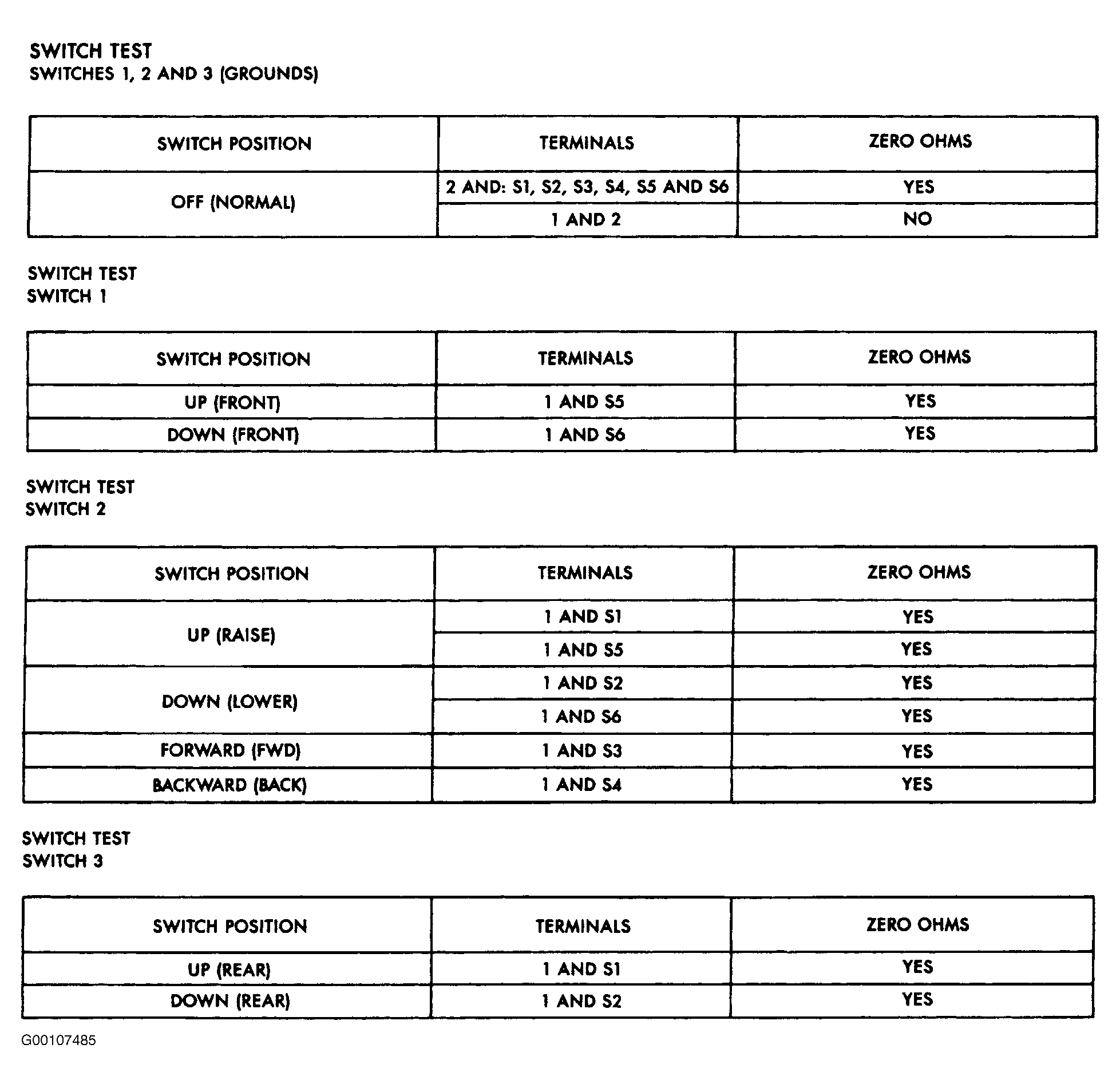

Fig 2: Testing Power Seat Switch
Courtesy of CHRYSLER CORP.
