Home >> Jeep >> 1992 >> Cherokee Limited >> Repair and Diagnosis >> Accessories & Equipment >> Warning Systems >> Connector Identification

Connector Identification

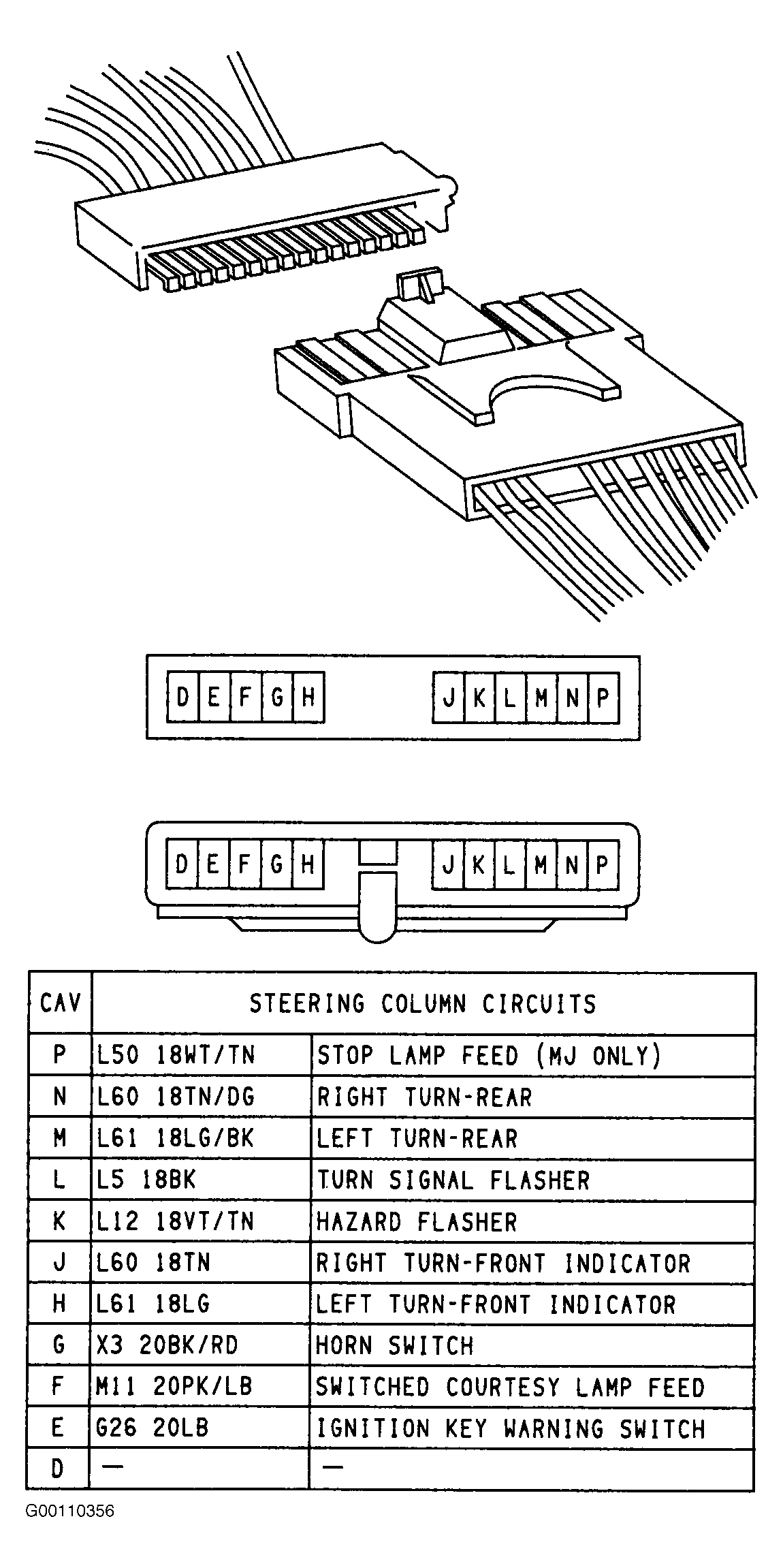

Fig 1: Identifying Steering Column Connector Terminals

G00110356

Courtesy of CHRYSLER CORP.
