Dr-25A: Repairing Controller Failure EMR Miles Not Stored Or EEPROM Write Denied

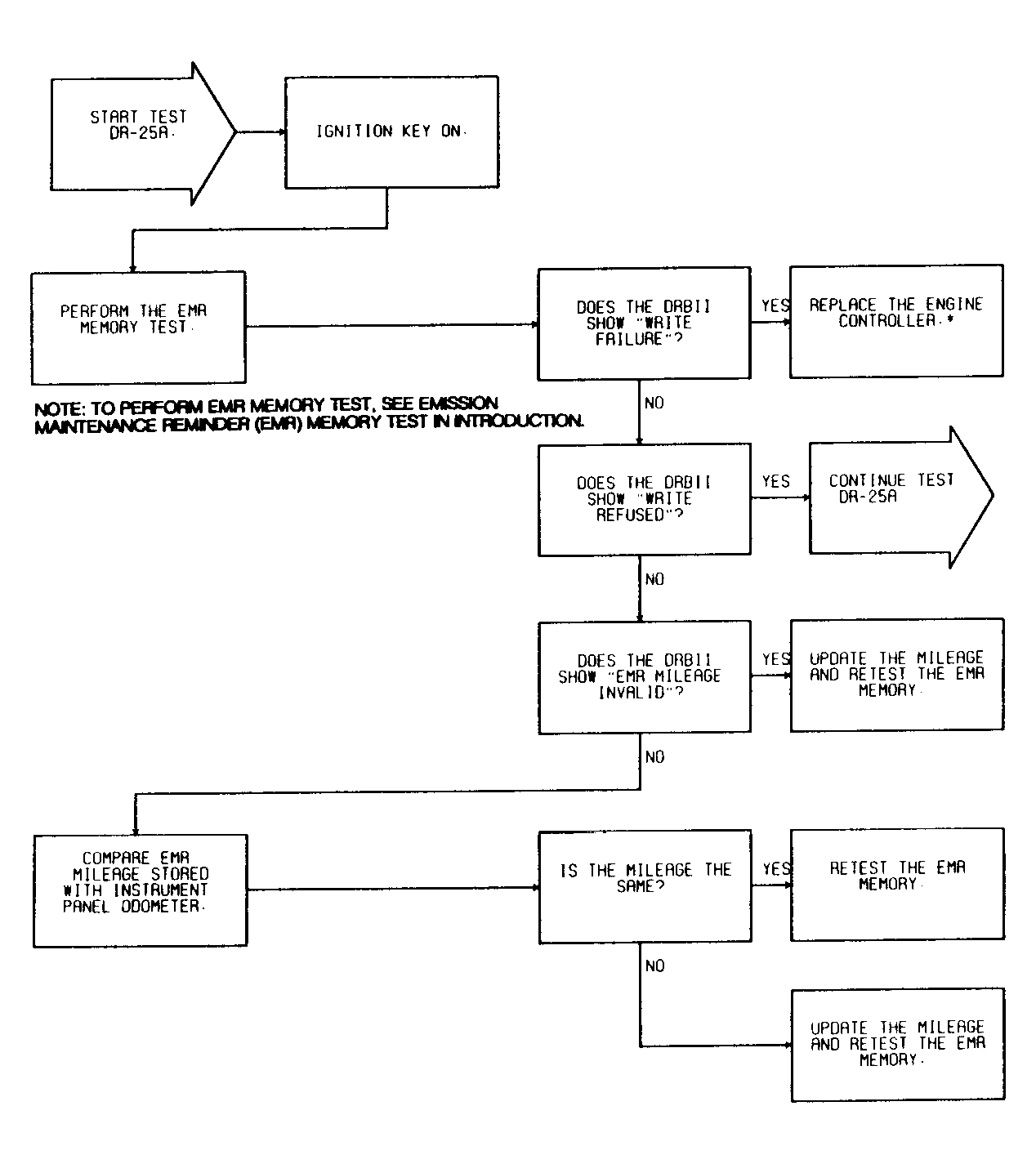

Fig 1: Test DR-25A (1 of 2) Controller Failure EMR Miles Not Stored Or EEPROM Write Denied Fault

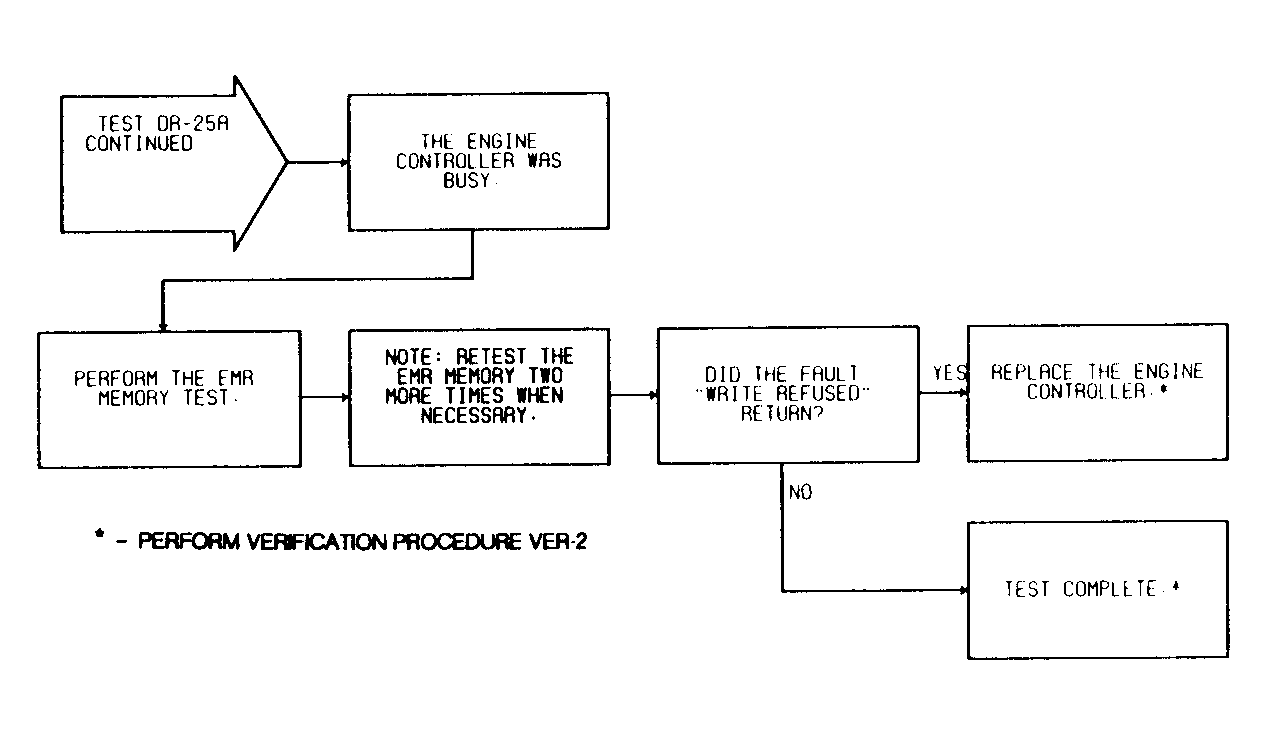

Fig 2: Test DR-25A (2 of 2) Controller Failure EMR Miles Not Stored Or EEPROM Write Denied Fault
