Dr-23A: Repairing Radiator Fan Relay Circuit

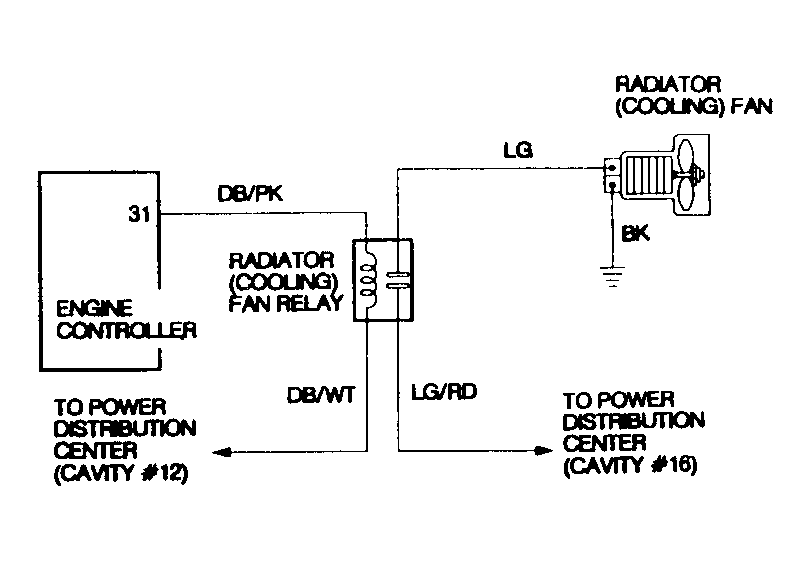

Fig 1: Test DR-23A Schematic, Radiator Fan Relay Circuit

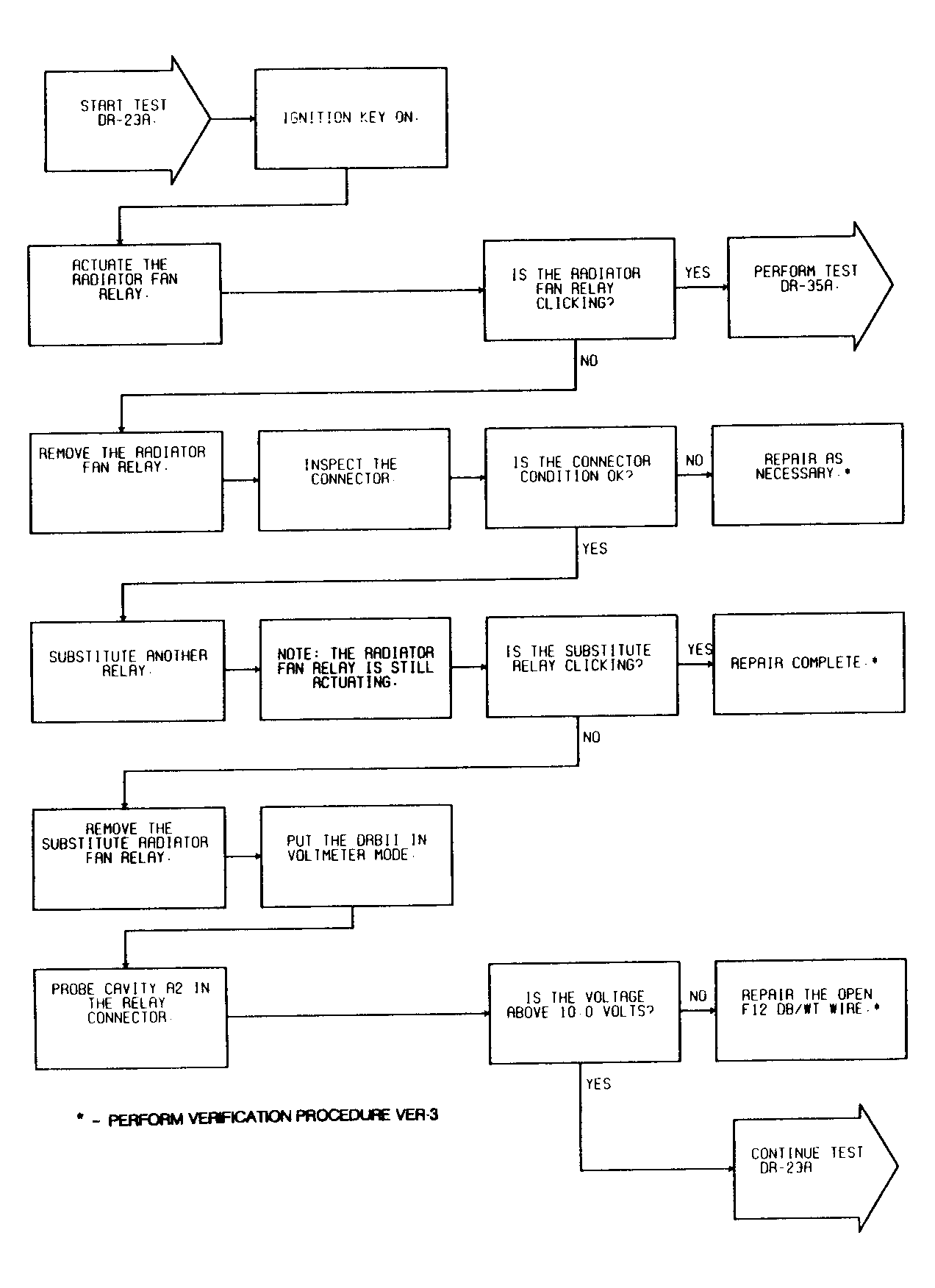

Fig 2: Test DR-23A (1 of 2) Radiator Fan Relay Circuit

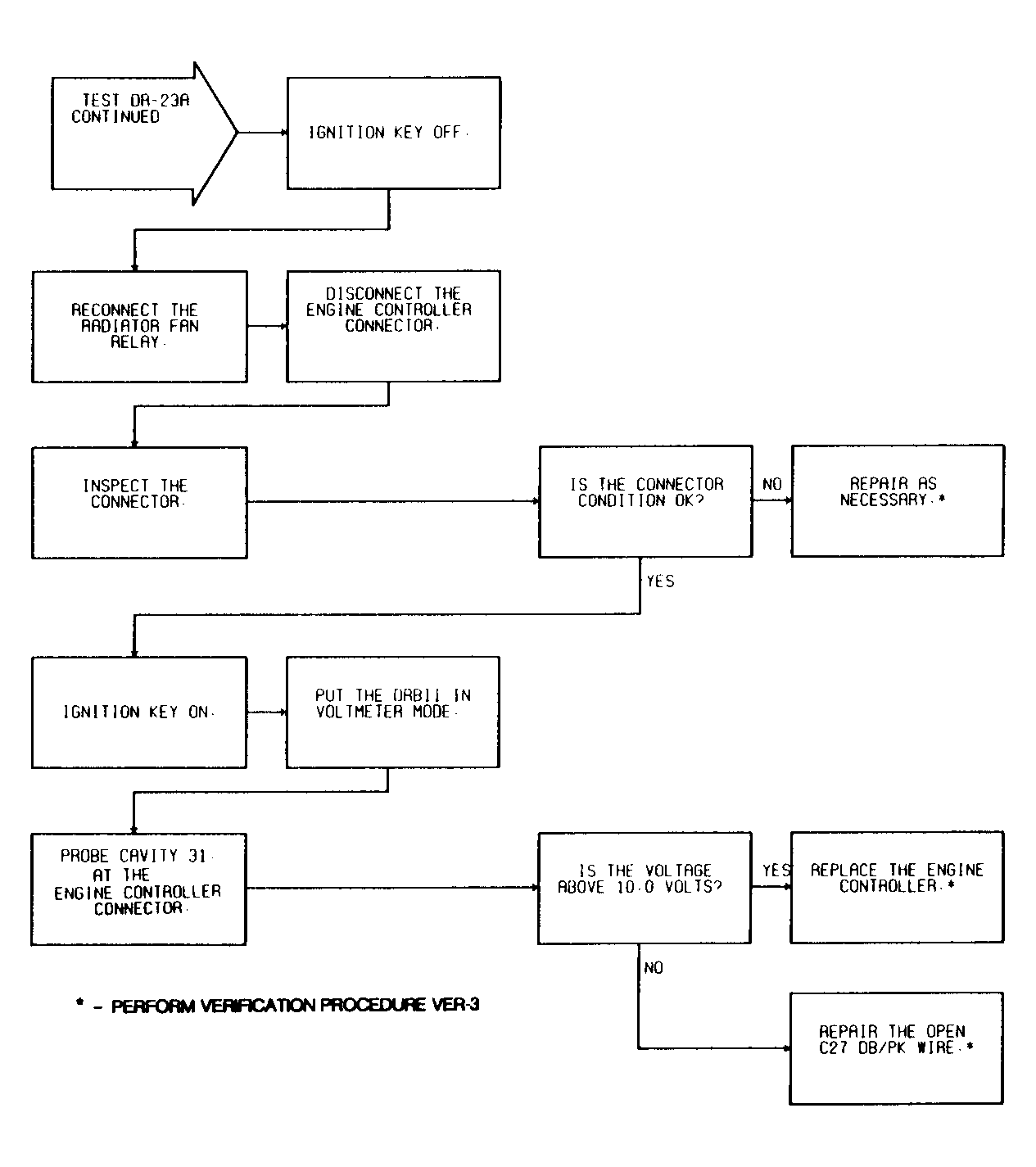

Fig 3: Test DR-23A (2 of 2) Radiator Fan Relay Circuit
